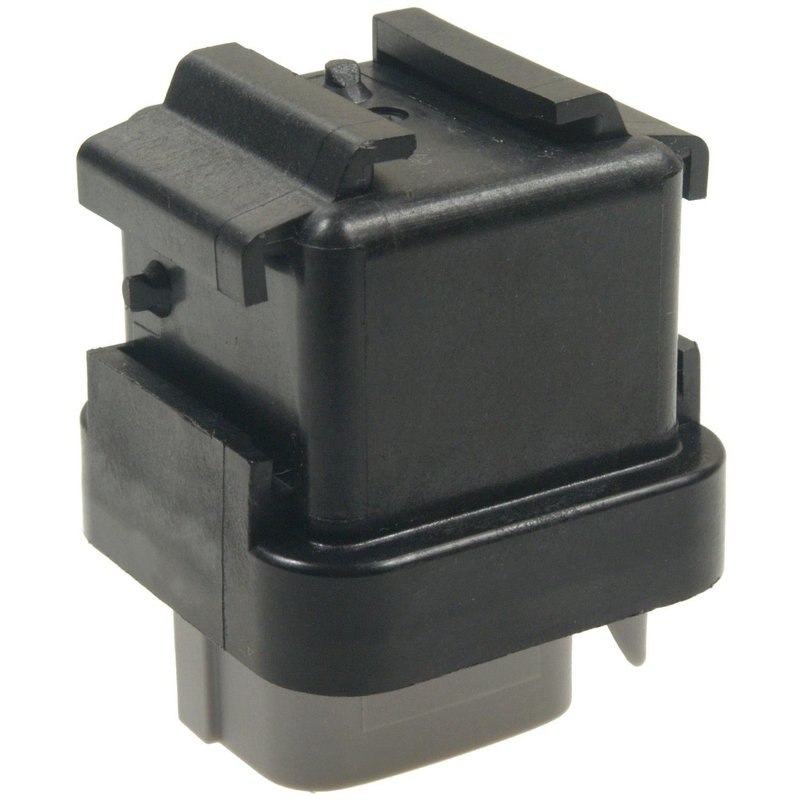

Standard Ignition RY-852 ABS Relay

Reliable ABS Relay for Toyota 4Runner, Pickup, T100, and Tercel

The Standard Ignition RY-852 ABS relay is designed to provide consistent performance for your Toyota vehicle's anti-lock braking system. Engineered to meet OEM specifications, this relay ensures proper ABS function in select Toyota models including the 4Runner, Pickup, T100, and Tercel.

• Compatible with Toyota 4Runner, Pickup, T100, and Tercel models
• Standard Ignition part number RY-852
• 12-volt relay with 6 male blade terminals
• Rectangular female connector with one connection point
• Continuous duty: No
• Mounting bracket not included

Technical Specifications and Features

This ABS relay operates at 12 volts and features a rectangular female connector with a single connection point, ensuring a secure and precise fit. The relay includes six male blade terminals designed for reliable electrical contact. While it is not rated for continuous duty, it functions effectively within the ABS system's operational parameters. The relay does not come with a mounting bracket, so installation will require using the existing bracket or mounting hardware from the vehicle.

Purpose and Common Applications

The Standard Ignition RY-852 relay is essential for maintaining the proper operation of the ABS system in compatible Toyota vehicles. It helps control the electrical current to the ABS pump and modulator, ensuring safe braking performance. This relay is commonly used to address issues such as:

• Intermittent or non-functioning ABS warning lights
• ABS pump failure to activate
• Erratic ABS system behavior during braking
• Electrical faults within the ABS relay circuit
• ABS system diagnostic trouble codes related to relay failure

Installation Notes and Tips

When installing the Standard Ignition RY-852 ABS relay, ensure the vehicle's ignition is off and the battery is disconnected to prevent electrical shorts. Verify the relay's connector orientation matches the vehicle's wiring harness, noting the female rectangular connector and six male blade terminals. Since the relay does not include a mounting bracket, use the original bracket or secure the relay firmly in place to avoid vibration damage. Testing the ABS system after installation is recommended to confirm proper operation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit, form, and function. The RY-852 ABS relay undergoes rigorous quality control to ensure reliable performance in Toyota 4Runner, Pickup, T100, and Tercel models. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in material and workmanship. Consult product documentation or the supplier for exact warranty terms.
