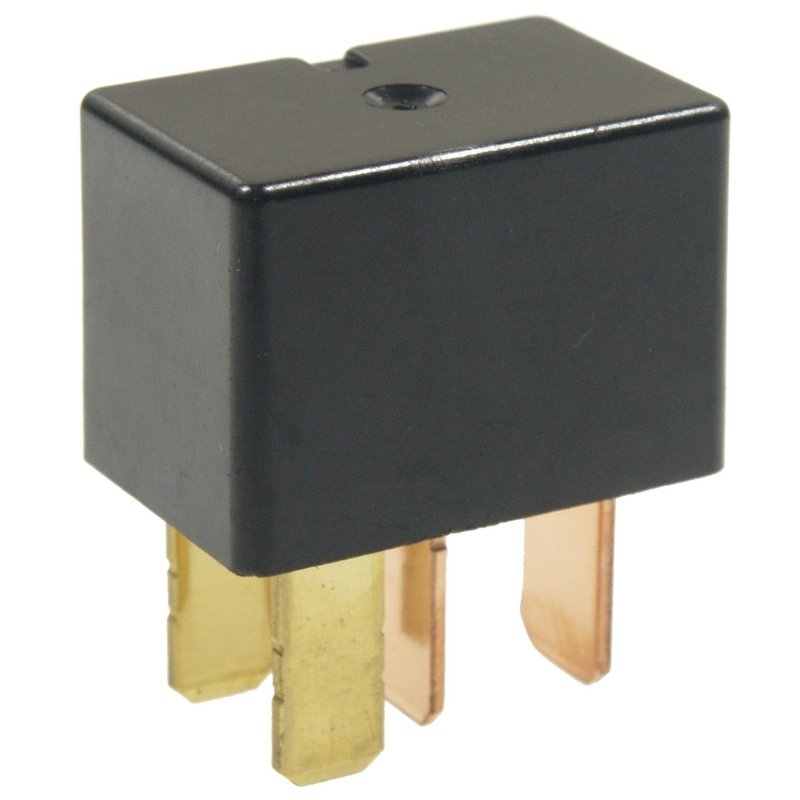

Standard Ignition RY-865 Power Window Relay

Reliable Power Window Relay for Subaru Vehicles

The Standard Ignition RY-865 power window relay is designed to provide consistent electrical performance for select Subaru models. Engineered to meet OEM specifications, this relay ensures proper operation of your vehicle's power window system.

• Compatible with Subaru B9 Tribeca, Forester, Impreza, Legacy, and Tribeca models
• Rated for 12-volt electrical systems with a 20 amp amperage capacity
• Features a rectangular connector shape with 4 male blade terminals
• Includes the relay component only; mounting bracket not included
• Designed for relay function in power window circuits

Technical Details and Specifications

The RY-865 power window relay operates at 12 volts and supports a continuous duty rating of no, suitable for intermittent relay activation in power window applications. It has four male blade terminals arranged in a rectangular connector shape, facilitating straightforward installation and reliable electrical connections. The relay is constructed to handle up to 20 amps, matching the electrical demands of Subaru power window systems. Although the mounting bracket is not included, the relay is compatible with existing mounting points in the specified Subaru models.

Applications and Common Issues Addressed

• Restores power window functionality in Subaru B9 Tribeca, Forester, Impreza, Legacy, and Tribeca
• Replaces faulty or intermittent power window relay causing windows to fail to operate
• Solves electrical relay failures that result in power window switches not responding
• Addresses relay-related issues that cause power windows to operate erratically or not at all

Installation Notes and Tips

Installation of the Standard Ignition RY-865 power window relay requires basic electrical knowledge and access to the vehicle’s fuse box or relay panel. Ensure the vehicle’s ignition is off before replacing the relay. Verify the relay terminal configuration matches the original part to avoid electrical issues. Since the mounting bracket is not included, use the existing bracket or mounting location in the vehicle. Consult the Subaru vehicle service manual for specific relay location and wiring diagrams.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit, form, and function. The RY-865 power window relay undergoes rigorous testing to ensure durability and reliable performance in Subaru vehicles. Warranty coverage details should be confirmed with the product documentation or supplier, as Standard Ignition typically offers limited warranties on electrical components.
