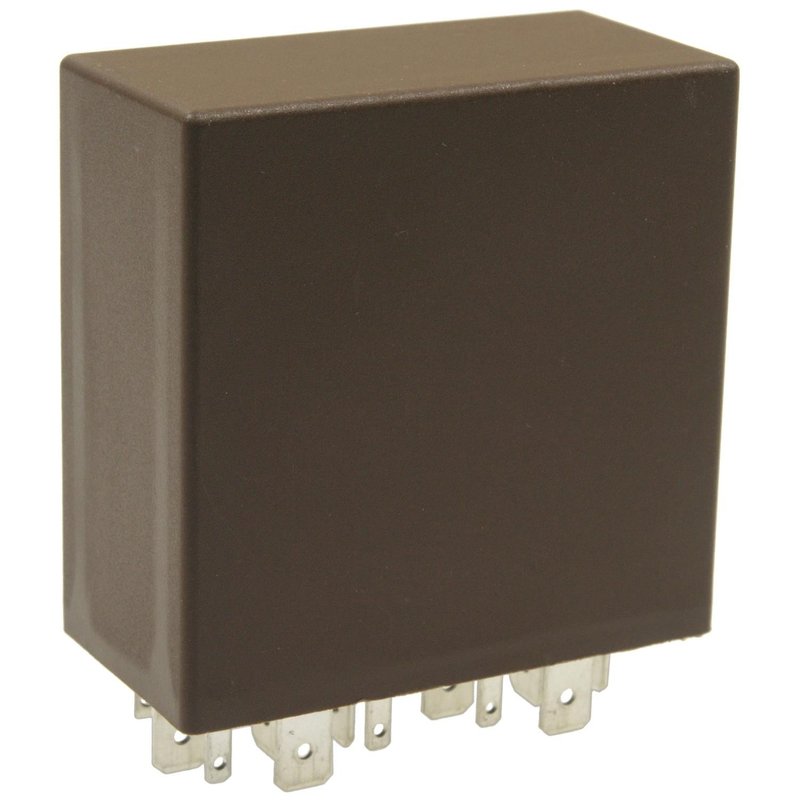

Standard Ignition RY-892 Windshield Wiper Motor Relay

Wiper Motor Relay for Volkswagen and Audi

The Standard Ignition RY-892 is a 12-volt wiper motor relay for select Volkswagen and Audi applications. It is built with a rectangular male connector, 16 blade terminals, a mounting bracket, and an included O-ring for a direct-fit electrical replacement.

• 12-volt wiper motor relay
• Rectangular male connector with 16 blade terminals
• Mounting bracket included
• Includes O-ring
• Male terminal and connector design
• Standard Ignition RY-892 replacement part

Detailed Product Overview

Standard Ignition RY-892 is a relay used in the windshield wiper system to help control wiper motor operation. It cross-references Bosch 16056 for the same application and matches OE-style part numbers including 4B0955531A, AR6397, and R6397. This relay is a direct service option for many Volkswagen Jetta, Golf, GTI, Passat, Tiguan, Touareg, and Beetle models, as well as Audi A4, A6, A8, S4, S6, S8, RS6, S3, Cabriolet, and Allroad Quattro applications.

Common Issues This Relay May Address

• Intermittent or inoperative windshield wiper operation
• Wipers that stop responding at certain switch settings
• Electrical relay failure in the wiper circuit
• Delayed or inconsistent wiper motor activation
• Replacement needs after diagnosing a faulty wiper control relay

Installation Notes and Fitment

Compatible With 2013-2014 Volkswagen CC, 2010-2014 Volkswagen Golf, 2011-2014 Volkswagen GTI, 2008-2014 Volkswagen Jetta w/o Rain Sensitive Wipers; w/ Mexico Emissions, 2013-2014 Volkswagen Passat, 2013-2014 Volkswagen Tiguan, 2011-2014 Volkswagen Touareg, 2008-2010 Volkswagen Beetle w/o Rain Sensitive Wipers; w/ Mexico Emissions, 1998-2007 Volkswagen Beetle With Pulse Wipers, 2001-2005 Audi Allroad Quattro, 1999-2005 Volkswagen Jetta With Pulse Wipers, 1998-2005 Volkswagen Passat Not compatible with vehicles equipped with Rain Sensitive Wipers, 1998-2004 Audi A6, 1998-2004 Audi A6 Quattro, 2003-2004 Audi RS6, 1998-2003 Audi A8 Quattro, 2003 Audi S3, 2000-2001 Audi S3, 2001-2003 Audi S6, 2001-2003 Audi S8, 1998-2002 Audi A4, 1998-2002 Audi A4 Quattro, 2000-2001 Audi S4, 1998-2000 Audi A8, and 1998 Audi Cabriolet.

Verify connector style, terminal count, and vehicle equipment before installation. This part is not continuous duty and should be matched to the original relay configuration for the vehicle.

Quality Assurance

Standard Ignition replacement electrical components are built to meet application-specific service requirements. RY-892 is intended for direct relay replacement in supported Volkswagen and Audi wiper systems.
