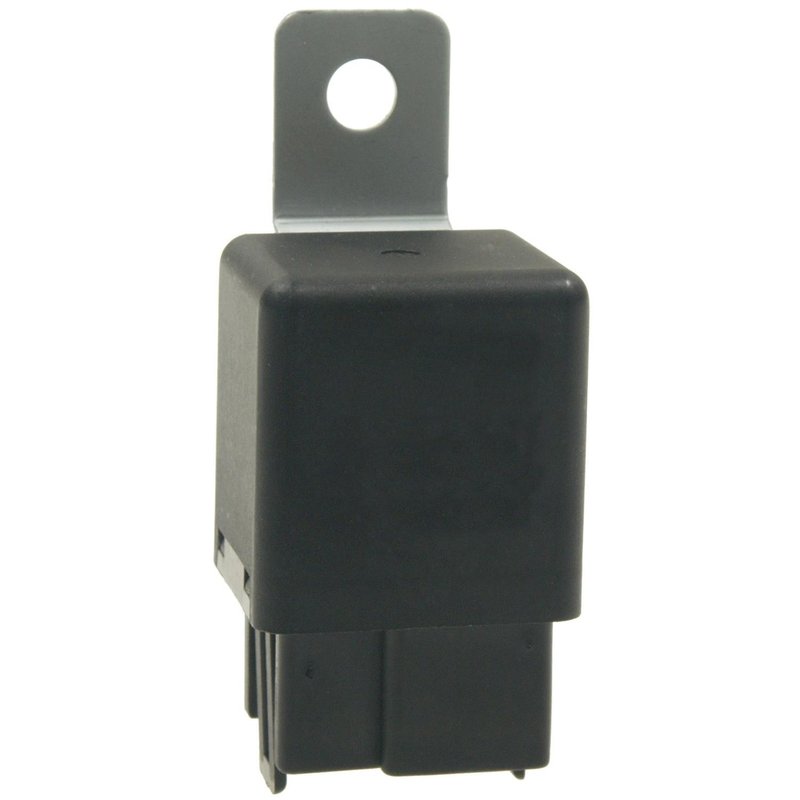

Standard Ignition RY-897 HVAC Automatic Temperature Control (ATC) Relay
| Brand | Standard Ignition RY-897 |
|---|---|
| Amperage Rating | 25 A |
| Connector Gender | Female |
| Contents | Relay |
| Continuous Duty | No |
| Functions | Relay |
| Mounting Bracket(s) Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Blade Terminals |
| Voltage | 12 |
| Fits | Hyundai · 9 vehicles |
Blower motor control. Relay functions for HVAC automatic temperature control systems.
25 A rating. Handles demanding electrical loads with a 12-volt design.
Bracket included. Mounting bracket and blade terminals simplify installation.
Cross-references Four Seasons 20148, Standard Ignition RY-897 and 9523037500 for the same application. See all 5.
HVAC Relay for Hyundai Temperature Control
Standard Ignition RY-897 is an HVAC automatic temperature control relay built for blower motor control in select Hyundai applications. It uses a 12-volt, 25-amp design with a female connector, 4 male blade terminals, and a polygon connector shape for a direct-fit electrical connection.
Compatible with 2001 Hyundai XG300 and 2002-2005 Hyundai Sonata and XG350 applications, this relay supports HVAC blower motor operation when the original relay is worn or no longer functioning correctly. The Standard Ignition RY-897 is a practical replacement for diagnosing blower motor circuit concerns in these Hyundai models.
Key Features
- HVAC automatic temperature control relay for blower motor circuits
- 12-volt relay rated at 25 amps
- Female connector with polygon shape
- 4 male blade terminals for electrical connection
- Mounting bracket included with 1 mounting hole
- Direct replacement for select Hyundai HVAC relay applications
Detailed Product Overview
The RY-897 is an HVAC relay used in blower motor control circuits, helping route electrical power through the climate control system. Standard Ignition RY-897 is specified for 2001 Hyundai XG300, 2002-2005 Hyundai Sonata, and 2002-2005 Hyundai XG350 applications, making it a focused replacement for vehicles with matching connector and terminal layouts. This part cross-references Four Seasons 20148 for the same application.
Common Issues This Relay May Address
- Blower motor does not turn on
- Intermittent HVAC fan operation
- Loss of cabin airflow at the climate control panel
- Relay-related electrical switching faults in the blower circuit
- HVAC system response problems tied to a failed relay
Installation Notes and Tips
Verify connector shape, terminal count, and amperage rating before installation. The RY-897 uses a female connector with 4 male blade terminals and a mounting bracket, so confirm the original relay matches these specifications. For 2002-2005 Hyundai Sonata, 2002-2005 Hyundai XG350, and 2001 Hyundai XG300 applications, compare the existing relay location and wiring before replacement.
Quality Assurance
Standard Ignition is a recognized aftermarket brand for electrical and ignition components. This relay is built to match the listed HVAC blower motor application requirements for the specified Hyundai vehicles.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Hyundai | Sonata | N/A | — |
| 2005 | Hyundai | XG350 | N/A | — |
| 2004 | Hyundai | Sonata | N/A | — |
| 2004 | Hyundai | XG350 | N/A | — |
| 2003 | Hyundai | Sonata | N/A | — |
| 2003 | Hyundai | XG350 | N/A | — |
| 2002 | Hyundai | Sonata | N/A | — |
| 2002 | Hyundai | XG350 | N/A | — |
| 2001 | Hyundai | XG300 | N/A | — |
