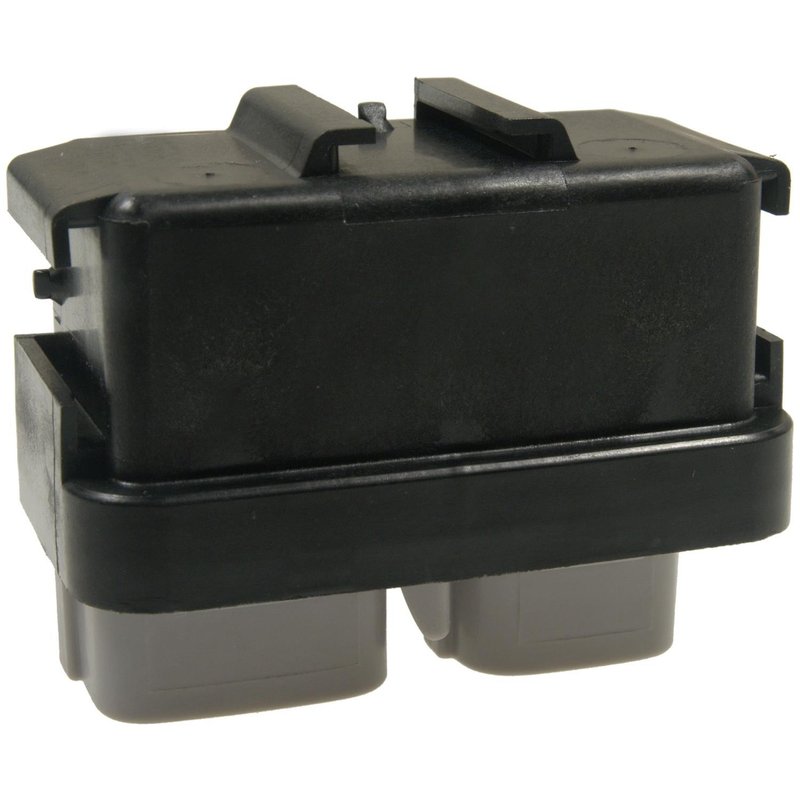

Standard Ignition RY-944 ABS Relay

ABS Relay for Toyota Brake Systems

Standard Ignition RY-944 is a 12-volt ABS relay built for Toyota brake system applications that require a female, rectangular 2-connector layout with 10 blade terminals. It is a direct-fit electrical relay for ABS control circuits on select Toyota 4Runner and Toyota T100 models.

Key Features

• 12-volt ABS relay for brake system control
• Female connector gender with 2 rectangular connectors
• 10 blade terminals with male terminal gender
• Relay contents and relay function for ABS circuit operation
• Direct application coverage for select Toyota 4Runner and Toyota T100 vehicles
• Standard Ignition RY-944 part number for catalog matching

Application Details

Fits 1998-2002 Toyota 4Runner, N/A. Fits 1996-1998 Toyota T100, N/A. This part cross-references Walker Exhaust 16350 for the same application. Standard Ignition RY-944 is also referenced under OE-style numbers used in the same ABS relay application, including 8826335090 and AR6450.

What This Relay Helps Address

• ABS warning light caused by relay failure
• Intermittent anti-lock brake system operation
• No-start or no-power condition in the ABS control circuit
• Electrical contact issues at the relay interface
• Brake system fault codes related to relay performance

Installation Notes

Verify connector shape, terminal count, and voltage before installation. Match the relay to the original ABS relay location and inspect the harness terminals for corrosion, heat damage, or looseness before connecting Standard Ignition RY-944. Confirm vehicle application by year and model for Toyota 4Runner and Toyota T100 ABS relay replacement service.

Quality Assurance

Standard Ignition supplies electrical replacement parts for service applications, and this relay is built to match the specified connector and terminal configuration for the listed Toyota fitments.
