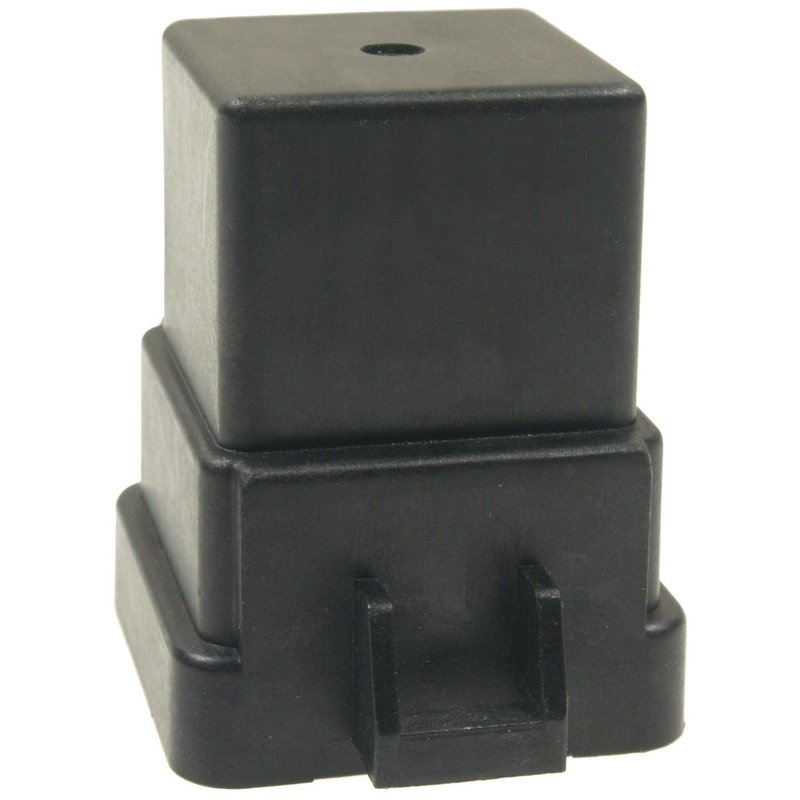

Standard Ignition RY-969 Engine Cooling Fan Motor Relay

Engine Cooling Fan Relay for Ford and Mercury

Standard Ignition RY-969 is a 12-volt engine cooling fan motor relay built for coolant fan relay control in demanding underhood environments. It uses a female square connector, 5 blade terminals, and a compact relay design for direct electrical switching in the cooling fan circuit.

Compatible with 2001-2003 Ford Escape, 2005-2007 Mercury Mariner, 2006 Ford Escape, and 1996-1997 Ford Probe, this relay supports vehicles that rely on accurate fan operation to manage engine temperature. The Standard Ignition RY-969 is a practical replacement when the original relay shows electrical wear or heat-related failure.

Key Features

• Engine cooling fan motor relay / coolant fan relay function
• 12-volt electrical system application
• Female square connector with 1 connector interface
• 5 male blade terminals for circuit connection
• Composite housing built for harsh temperature exposure
• Brass or copper contacts used where specified for wear resistance
• Manufactured under TS16949 and ISO9001 certified processes

Detailed Description

Standard Ignition RY-969 is engineered as a replacement relay for the engine cooling fan circuit, helping control fan activation based on vehicle electrical commands. Its composite housing is made to withstand severe underhood conditions, while specified brass or copper contacts support long-term electrical durability. This part cross-references Four Seasons 20755 for the same application.

For Ford Escape, Mercury Mariner, and Ford Probe applications, RY-969 provides the relay architecture needed for proper fan circuit switching. If you are searching for a Ford Escape cooling fan relay, Mercury Mariner engine cooling fan relay, or a Ford Probe fender mounted relay replacement, this part number is a direct match to the listed applications.

Common Problems This Relay Can Address

• Cooling fan not turning on when engine temperature rises
• Intermittent fan operation caused by relay contact wear
• Electrical switching faults in the coolant fan circuit
• Heat-related relay housing deterioration
• Loss of proper fan control on listed Ford and Mercury vehicles

Installation Notes and Tips

Verify connector shape, terminal count, and terminal style before installation. Standard Ignition RY-969 uses a female square connector with 5 male blade terminals and no mounting bracket. Confirm the vehicle’s relay location and compare the original part number, especially on 2001-2003 Ford Escape models with medium speed engine fan and 5-terminal configuration.

For best results, inspect the relay socket for heat damage, corrosion, or loose terminals before installing the replacement. Confirm the cooling fan circuit operates correctly after installation.

Quality Assurance

Standard Ignition manufactures this relay to stringent quality requirements in TS16949- and ISO9001-certified facilities. The composite housing and specified contact materials are selected to support reliable electrical performance in underhood service.
