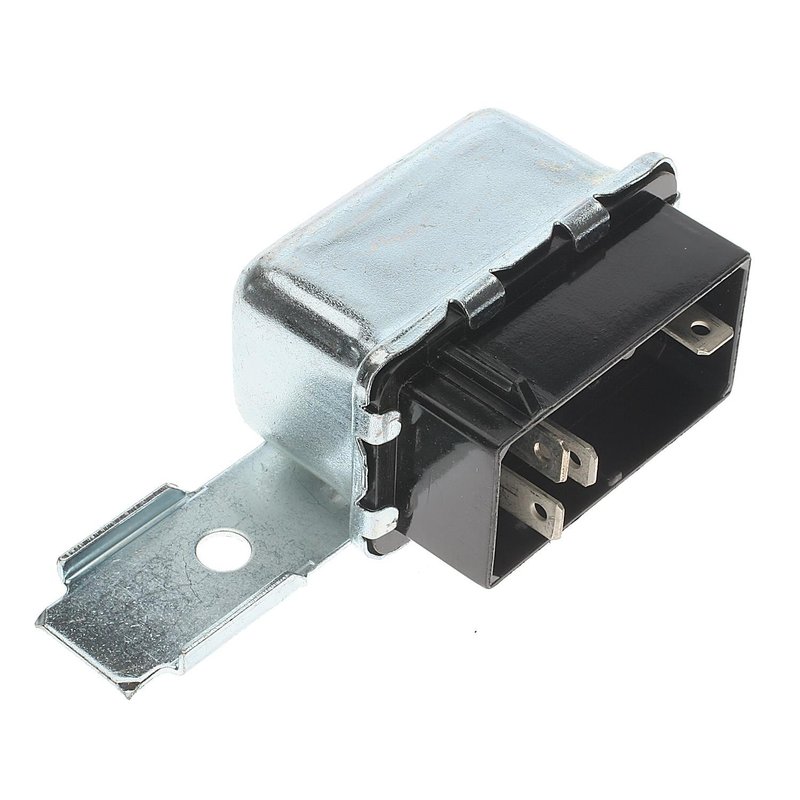

Standard Ignition RY-98 HVAC Relay

Overview of Standard Ignition HVAC Relay RY-98

The Standard Ignition RY-98 HVAC relay is designed for reliable operation in Chrysler, Dodge, and Plymouth vehicles. This 12-volt relay supports a 30 amp rating and is engineered to function as a starter relay, ensuring consistent performance in your vehicle's HVAC system.

• Amperage Rating: 30 amps for robust electrical handling
• Connector Gender: Female with one rectangular connector
• Terminal Type: Four male blade terminals for secure connections
• Voltage: 12 volts compatible with standard automotive systems
• Includes mounting bracket(s) for easy installation
• Designed for starter relay function within HVAC systems
• Continuous duty: No, suitable for intermittent operation

Detailed Product Description

The Standard Ignition RY-98 HVAC relay is a critical component for maintaining proper electrical control in HVAC systems of select Chrysler, Dodge, and Plymouth models. With a 30 amp amperage rating, this relay handles the electrical load required for starter relay functions without continuous duty operation. The relay features a female rectangular connector and four male blade terminals, providing secure and reliable electrical connections. The included mounting bracket simplifies installation and ensures the relay remains firmly in place during vehicle operation.

Compatible Vehicles and Applications

This HVAC relay is compatible with a range of Chrysler, Dodge, and Plymouth vehicles, including but not limited to the Caravan, Charger, Dakota, Grand Caravan, LeBaron, Monaco, New Yorker, Shadow, Spirit, Stealth, Sundance, Town & Country, and Voyager models. It is specifically designed to replace HVAC relays in these vehicles, ensuring proper starter relay function within the HVAC system.

Common Issues Addressed by the RY-98 HVAC Relay

• Intermittent HVAC blower operation
• Failure of the starter relay function in HVAC circuits
• Electrical connection problems due to worn or damaged relay terminals
• HVAC system not engaging properly during vehicle start-up
• Relay mounting instability causing electrical faults

Installation Notes and Tips

When installing the Standard Ignition RY-98 relay, ensure the vehicle's ignition is off and the battery is disconnected to prevent electrical shorts. The included mounting bracket should be used to secure the relay firmly in place. Verify that the female rectangular connector and male blade terminals align correctly with the vehicle’s wiring harness. Avoid continuous duty operation as this relay is not rated for it. Consult the vehicle’s service manual for specific relay location and wiring diagrams.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing dependable performance and durability. The RY-98 HVAC relay undergoes rigorous testing to ensure reliable operation in compatible Chrysler, Dodge, and Plymouth vehicles. Warranty coverage details can be obtained from the product packaging or Standard Ignition’s official documentation.
