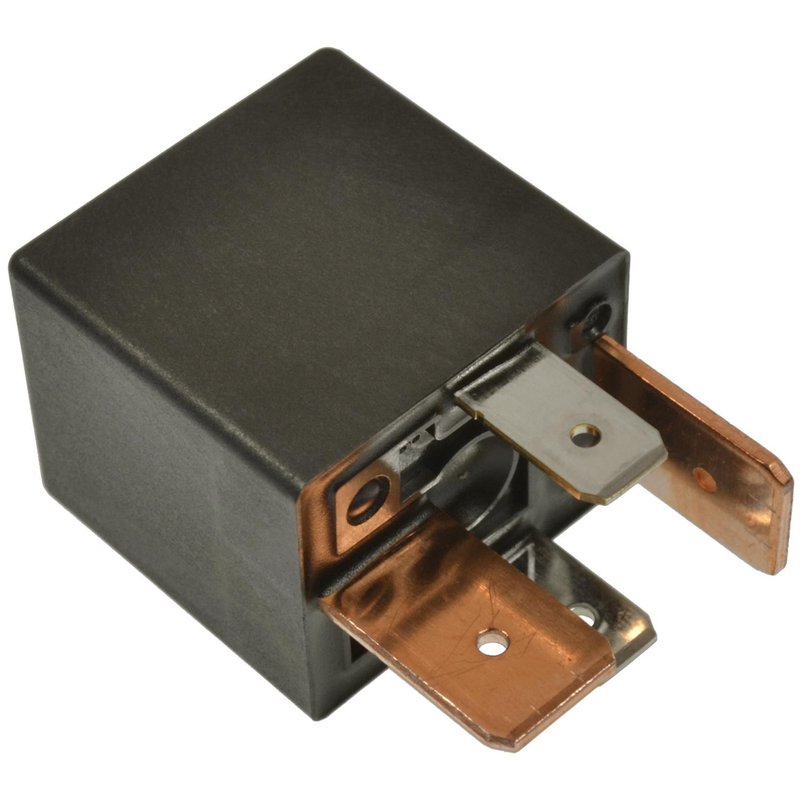

Standard Ignition RY1960 Computer Control Relay

Computer Control Relay for Subaru Electrical Repair

Standard Ignition RY1960 is a 12-volt computer control relay built for Subaru electrical systems that need reliable relay switching. With a 70 amp rating, 4 blade terminals, and push-on mounting, it supports direct replacement service for select Subaru Ascent, Legacy, Outback, Crosstrek, Forester, and Impreza applications.

This relay is a practical choice when diagnosing intermittent electrical operation in Subaru Legacy, Subaru Outback, or Subaru Forester models. Standard Ignition RY1960 is built as a computer function relay with male blade terminals for straightforward service replacement.

Key Features

• Part number: RY1960
• Computer control relay for 12-volt systems
• 70 amp amperage rating
• 4 terminal blade design with male terminals
• Push-on mounting type
• No connector, no mounting bracket, and no mounting hardware included
• Direct interchange references include 25232AA110, AR7463, and R7463

Detailed Description

Standard Ignition RY1960 is a computer control relay used in electrical and body control circuits where a high-current switching component is required. The relay uses a 12-volt operating specification, 4 blade terminals, and a push-on connection style to match the original service layout on supported Subaru vehicles. Its 70 amp rating makes it suitable for relay-controlled electrical loads in the vehicle’s control system.

Compatible Subaru applications include 2019-2020 Subaru Ascent, 2015-2020 Subaru Legacy, 2015-2020 Subaru Outback, 2018-2019 Subaru Crosstrek, 2019 Subaru Forester, and 2017-2019 Subaru Impreza. This part number, RY1960, also cross-references 25232AA110 for the same application.

Common Problems This Relay Can Address

• Intermittent computer-controlled electrical operation
• No-response condition in a relay-switched circuit
• Electrical accessory or control circuit failure caused by a worn relay
• Heat-related relay contact wear in high-current circuits
• Replacement need after diagnostic confirmation of relay malfunction

Installation Notes and Tips

Verify terminal layout, mounting style, and amperage rating before installation. Compare the original relay to Standard Ignition RY1960 to confirm the 4 blade terminals, male terminal gender, and push-on fitment. Always inspect the relay socket for corrosion, heat damage, or loose terminals before installing the replacement.

Quality Assurance

Standard Ignition is a recognized aftermarket source for electrical service parts, and this relay is built to meet the specifications listed for the application. Confirm vehicle year, model, and original part number before installation to ensure proper fitment.
