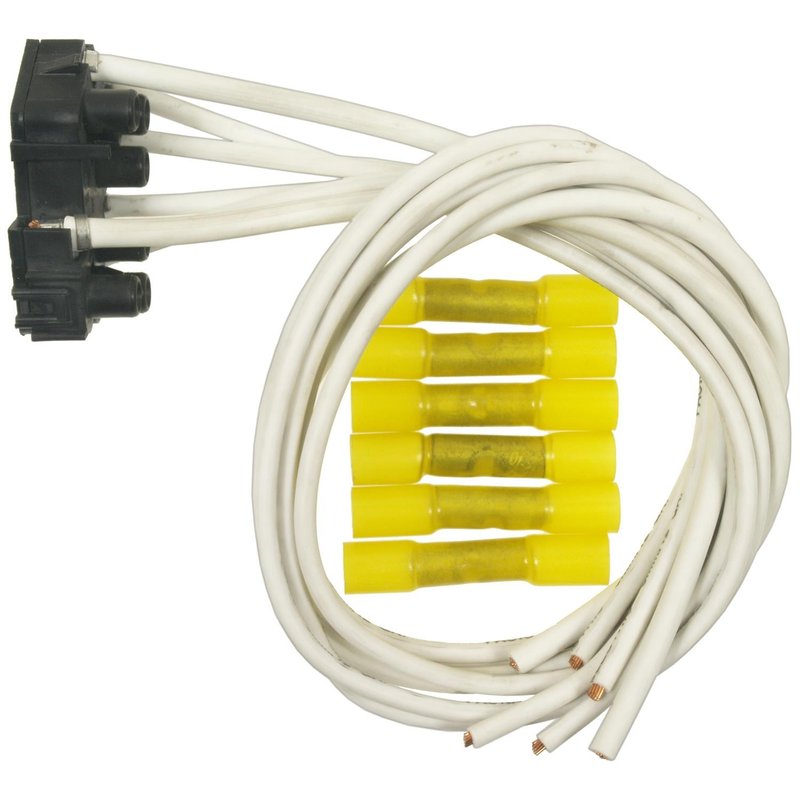

Standard Ignition S-1090 Power Window Switch Connector - Front Left or Left

Reliable Power Window Switch Connector for GM Vehicles

The Standard Ignition S-1090 power window switch connector is designed to provide a secure and efficient electrical connection for power window systems in select Buick, Cadillac, Chevrolet, GMC, Oldsmobile, and Pontiac models. Engineered with precise terminal and connector specifications, this connector ensures consistent performance and durability.

• Male connector with one connector quantity for straightforward installation
• Includes six female pin terminals for reliable electrical contact
• Equipped with six wires and butt splices for secure wiring connections
• Compatible with a wide range of GM vehicles including Chevrolet Blazer, GMC Jimmy, Pontiac Grand Prix, and more
• Part number S-1090 ensures exact fitment and replacement accuracy

Technical Details and Compatibility

The S-1090 power window switch connector features a male connector gender with a single connector quantity, making it suitable for direct replacement in power window switch assemblies. It includes six female pin terminals, which correspond to the six wires provided, allowing for a complete and secure electrical connection. The inclusion of butt splices facilitates easy and reliable wire splicing during installation. This connector is compatible with numerous GM models such as the Chevrolet C1500, GMC Sierra 1500, Buick LeSabre, Pontiac Bonneville, and Cadillac Brougham, among others. Using the correct connector helps maintain the integrity of the vehicle's electrical system and ensures proper window switch functionality.

Common Applications and Problem Resolution

• Restores power window switch connectivity in Buick, Cadillac, Chevrolet, GMC, Oldsmobile, and Pontiac vehicles
• Resolves intermittent or non-functioning power window switches caused by faulty connectors
• Eliminates wiring issues related to damaged or corroded terminals
• Supports repair of power window circuits in models like Chevrolet Camaro and GMC Jimmy
• Facilitates replacement of worn or broken connectors in older GM vehicles

Installation Notes and Tips

When installing the Standard Ignition S-1090 connector, ensure that the wiring harness is properly prepared and stripped to fit the included butt splices. Use appropriate crimping tools to secure the splices and maintain a solid electrical connection. Verify that the female pin terminals are fully seated within the male connector housing to prevent loose contacts. It is recommended to test the power window switch operation before finalizing the installation to confirm proper functionality.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The S-1090 power window switch connector undergoes rigorous quality control to ensure fitment accuracy and electrical integrity. While specific warranty details may vary, Standard Ignition typically offers coverage against manufacturing defects to support customer confidence in the product.
