Standard Ignition S-1112 HVAC Recirculation Door Actuator Harness Connector

HVAC Recirculation Door Actuator Harness Connector

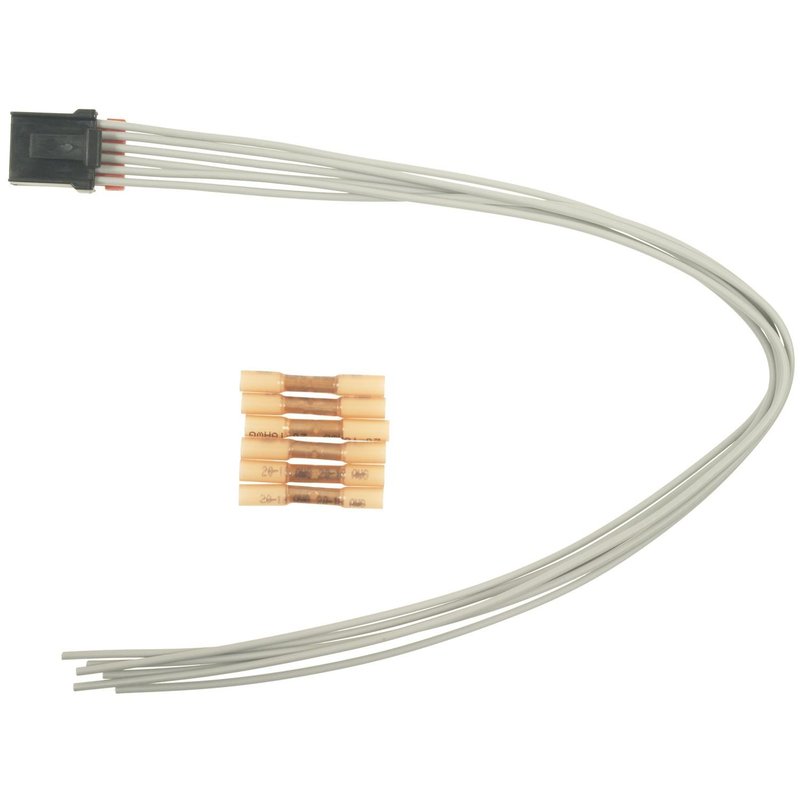

Standard Ignition S-1112 is an HVAC recirculation door actuator harness connector built for electrical repair work where the original connector has failed, overheated, or lost terminal integrity. It uses high-grade materials to support strong conductivity and consistent connections in HVAC control circuits.

Use this connector for service on Chevrolet Silverado, GMC Sierra, Cadillac Escalade, and other GM and Ford applications listed below. Standard Ignition S-1112 is also a direct cross-reference for Dorman TECHoice 645-541 and Four Seasons 37280 in the same application.

Key Features

• Male connector housing with a single connector interface
• 6 female blade terminals for HVAC electrical repair
• 18-inch harness length for routing and splice work
• Built with materials selected for conductivity and secure terminal contact
• Designed for recirculation door actuator and related HVAC connector repairs
• Standard Ignition S-1112 part number for easy identification

Detailed Description

This HVAC recirculation door actuator harness connector is intended for technicians replacing damaged factory connectors in climate control and auxiliary wiring circuits. The 6-wire, blade-terminal design supports clean electrical transfer where the original connector body, terminals, or wire ends have deteriorated. Standard Ignition applies long-running connector development to address common failure points found in original equipment harness connections.

Fitment coverage includes many GM truck, SUV, and van platforms, along with select Ford, Lincoln, Buick, Pontiac, Saturn, and Cadillac applications. Common search examples include Fits 2011-2014 Chevrolet Tahoe, main; Fits 2007-2013 GMC Sierra 1500, automatic temperature control note; and Fits 2006-2012 Ford Fusion, HVAC connector service. The S-1112 also appears across multiple Chevrolet Malibu, Silverado, Traverse, and GMC Yukon applications.

What It Helps Repair

• Broken or heat-damaged HVAC actuator connector housings
• Loose, corroded, or intermittent terminal contact
• Failed recirculation door actuator wiring connections
• Electrical faults caused by damaged pigtail wiring
• Connector issues on manual AC and automatic temperature control applications where listed

Installation Notes and Tips

Verify the vehicle year, make, model, and HVAC configuration before installation. Several listings require manual AC, dual-zone temperature control, or automatic temperature control exclusions, so match the notes in the fitment table exactly. Confirm terminal orientation, wire color/function, and connector style before cutting or splicing into the harness.

• Fits 2012-2018 Chevrolet Express 2500, steering column wiring harness connector for auxiliary use.
• Fits 2012-2018 Chevrolet Express 3500, steering column wiring harness connector for auxiliary use.
• Fits 2012-2018 GMC Savana 2500, steering column wiring harness connector for auxiliary use.
• Fits 2012-2018 GMC Savana 3500, steering column wiring harness connector for auxiliary use.
• Fits 2009-2014 Cadillac Escalade, main.
• Fits 2011-2014 Chevrolet Tahoe, main.
• Fits 2011-2014 GMC Yukon, main.
• Fits 2006-2012 Ford Fusion, N/A.
• Fits 2007-2012 Lincoln MKZ, N/A.
• Fits 2008-2011 Buick Enclave, N/A.
• Fits 1997-2005 Chevrolet Astro, N/A.
• Fits 1997-2005 GMC Safari, N/A.
• Fits 1997-2004 Cadillac DeVille, N/A.
• Fits 1997-2004 Chevrolet Corvette, N/A.
• Fits 1997-1999 Saturn SL2, N/A.

Quality Assurance

Standard Ignition positions this connector within its pigtail and socket program, using high-grade materials and application-focused engineering to support reliable electrical repair. The brand’s product development is centered on correcting common original-equipment connector failure issues in technician service work.
