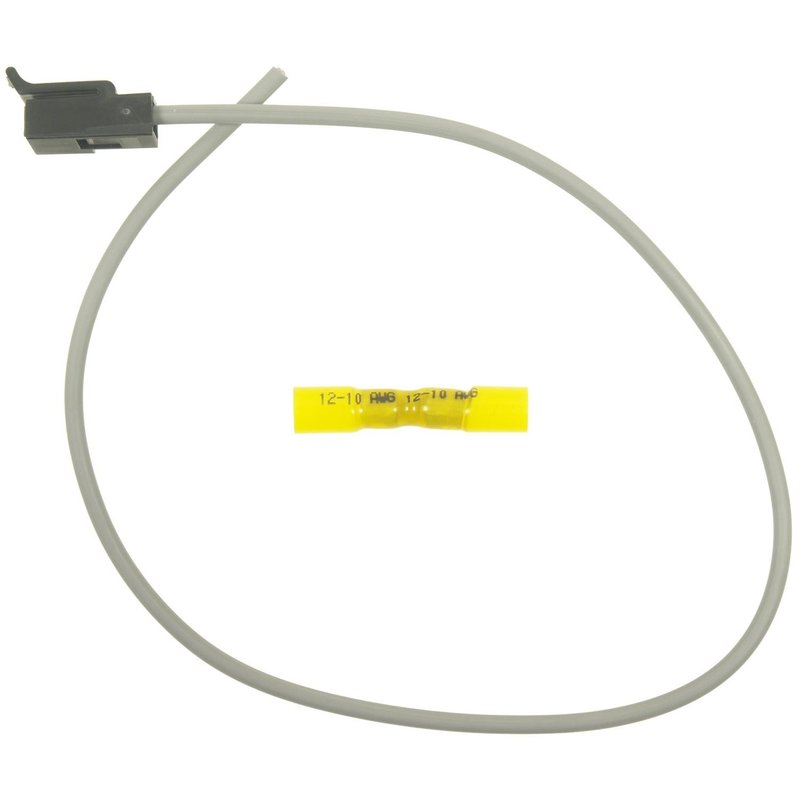

Standard Ignition S-1123 Window Defroster Connector

Window Defroster Connector for GM Applications

Standard Ignition S-1123 is a 1-wire window defroster connector built for electrical repair work where a damaged rear defogger plug, pigtail, or terminal connection needs replacement. It uses high-grade materials to support strong conductivity and a secure connection on a wide range of Cadillac, Chevrolet, GMC, Buick, Oldsmobile, and Pontiac vehicles.

With a 17-inch harness, one male connector, and one female blade terminal, this Standard Ignition S-1123 connector is built for direct electrical service on rear window defroster circuits and related harness applications.

Key Features

• Part number: S-1123
• 1 male connector with 1 female blade terminal
• 17-inch harness length
• 1-wire design for focused electrical repair
• Built with materials selected for conductivity and connection integrity
• Cross-reference: 1P2603, EC620

Detailed Description

Standard Ignition S-1123 is a replacement window defroster connector for vehicles that use a single-terminal rear defogger style connection. It is listed for applications including 2002-2009 Cadillac Escalade, 2003-2009 Cadillac Escalade ESV, 2002-2009 Cadillac Escalade EXT, 1998-2004 Cadillac Seville, 1995-2002 Cadillac Eldorado, 1996-1999 Cadillac DeVille, 1991-1996 Buick Regal, 1988-1996 Pontiac Grand Prix, and multiple Chevrolet and GMC truck and van platforms. The S-1123 part number is also referenced for rear HVAC floor mode door actuator harness and power seat switch applications on select vehicles.

Standard Ignition focuses on pigtails and sockets for electrical repair, using durable materials and engineering experience to address common connector failure points. For technicians and DIY repairs on Cadillac Escalade, Chevrolet C/K trucks, and GMC Savana or Sierra-era platforms, this connector provides a serviceable replacement for worn or damaged factory wiring ends.

Common Problems This Part Can Help Solve

• Broken or heat-damaged rear window defroster connector
• Loose blade terminal connection at the defogger circuit
• Corroded pigtail causing intermittent rear defrost operation
• Damaged wiring end during HVAC or electrical repair
• Failed connector on select rear HVAC or power seat switch harnesses

Installation Notes and Tips

Verify connector gender, terminal style, and harness length before installation. Match the existing vehicle connector to the 1 female blade terminal and 1-wire layout, and confirm the application notes for rear defogger, rear HVAC, or related harness use. For best results, inspect the mating terminal, repair any damaged wire insulation, and ensure a clean, tight electrical connection before returning the circuit to service.

Quality Assurance

Standard Ignition designs its pigtails and sockets with technician-focused electrical repair needs in mind, using high-grade materials and application-driven engineering to support reliable conductivity and consistent connections.
