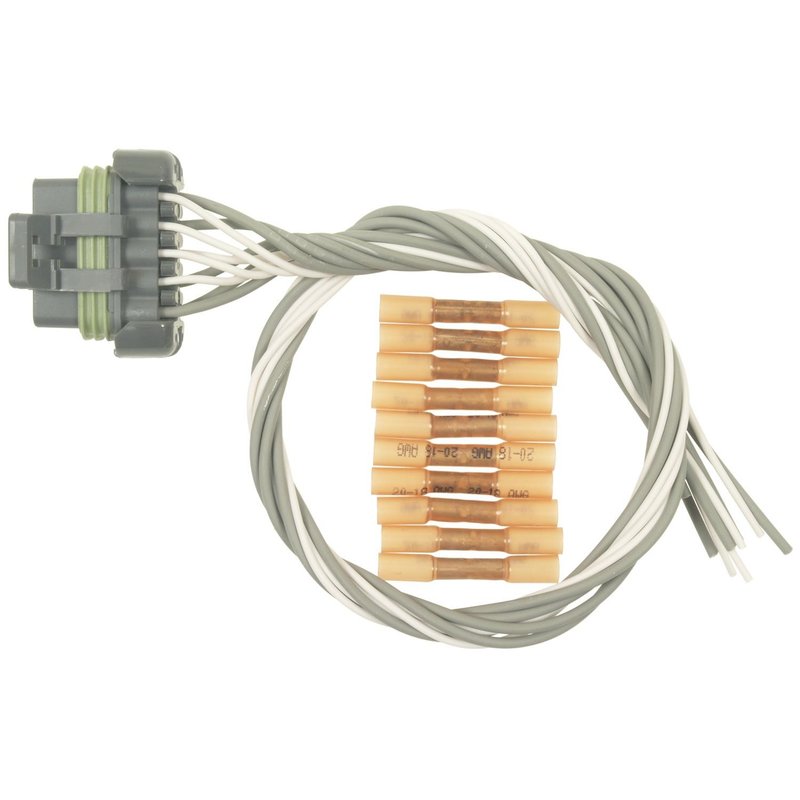

Standard Ignition S-1146 Automatic Transmission Wiring Harness Connector

Overview of Standard Ignition Automatic Transmission Wiring Harness Connector

The Standard Ignition S-1146 automatic transmission wiring harness connector is designed for reliable electrical connections in select GM vehicles. This 17-inch male connector with female blade terminals ensures secure and efficient transmission wiring for models like the Chevrolet Camaro and Cadillac Escalade.

• Connector Gender: Male
• Includes butt splices for easy wiring
• Harness length: 17 inches
• Terminal Gender: Female
• 10 blade terminals and 10 wires included
• Compatible with multiple GM makes and models

Detailed Product Description

The S-1146 wiring harness connector from Standard Ignition is engineered to provide a dependable electrical connection for automatic transmission systems. Featuring a male connector with 10 female blade terminals, this harness supports 10 wires over a 17-inch length, allowing for flexible installation and secure fitment. The included butt splices facilitate straightforward splicing and wiring repairs, reducing installation time and improving connection integrity. This connector is specifically designed for use in a range of General Motors vehicles, including Buick, Cadillac, Chevrolet, GMC, Oldsmobile, and Pontiac models.

Compatible Vehicles and Applications

This wiring harness connector is compatible with automatic transmission systems in the following vehicles:

• Buick Regal, Park Avenue
• Cadillac Escalade
• Chevrolet Camaro, Cavalier, Corvette, Lumina
• GMC Yukon, Yukon XL 1500, Yukon XL 2500
• Oldsmobile Cutlass Supreme
• Pontiac Firebird, Grand Prix

Common Issues Addressed by This Connector

• Faulty or damaged transmission wiring connections
• Corroded or worn blade terminals causing intermittent electrical faults
• Broken or frayed wiring harnesses affecting transmission performance
• Difficulty in splicing or repairing transmission wiring circuits
• Need for a reliable replacement connector for transmission wiring harness repairs

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation to prevent electrical shorts
• Use the included butt splices to securely connect wires and maintain circuit integrity
• Verify correct wire routing and terminal seating to avoid transmission communication errors
• Consult the vehicle’s service manual for specific wiring diagrams and connector pinouts
• Inspect the connector and terminals for damage before installation

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The S-1146 wiring harness connector undergoes rigorous quality control to maintain consistent electrical conductivity and mechanical fit. Warranty coverage details should be confirmed with the product documentation or distributor, as they may vary by region.
