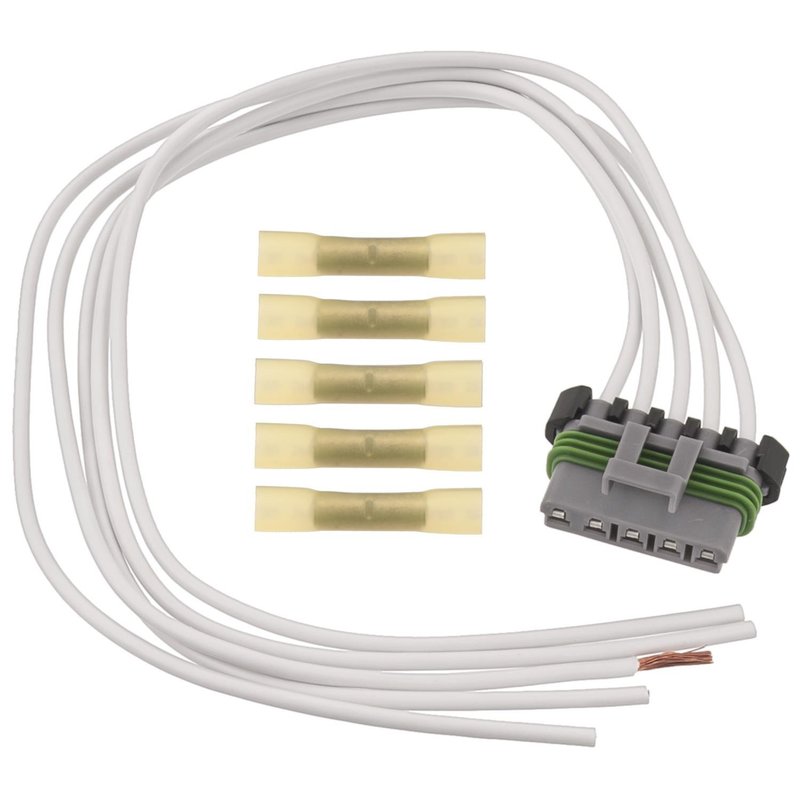

Standard Ignition S-1166 HVAC Blower Motor Resistor Connector

HVAC Blower Motor Resistor Connector for GM Vehicles

Standard Ignition S-1166 is an HVAC blower motor resistor connector built for electrical repair work where the original connector has heat damage, corrosion, or broken terminals. It uses high-grade materials to support strong conductivity and secure blade-terminal contact in the HVAC circuit.

Compatible with a wide range of Chevrolet, Pontiac, and Oldsmobile applications, including Chevrolet Sonic, Trax, Spark, Classic, and Malibu models. Standard Ignition S-1166 is a direct-fit style repair connector for technicians replacing a damaged blower motor resistor plug.

Key Features

• Male connector with an oval shape for HVAC electrical repair
• 5 female blade terminals for blower motor resistor connections
• 16-inch harness length for serviceable routing and splicing
• Includes butt splices for wire repair work
• Built with materials selected to maintain conductivity and connection integrity
• Standard Ignition S-1166 cross-references Dorman TECHoice 645-739 and Four Seasons 37248 for the same application

Detailed Description

This HVAC blower motor resistor connector is designed for vehicles that use a 5-terminal female blade interface at the resistor circuit. Standard Ignition S-1166 supports repair of damaged pigtails and sockets in the HVAC electrical system, helping restore a secure connection between the harness and blower motor resistor. It is a practical replacement for Chevrolet Sonic, Chevrolet Trax, Chevrolet Spark, Chevrolet Classic, Chevrolet Malibu, Pontiac Grand Am, Oldsmobile Alero, Oldsmobile Cutlass, and Oldsmobile Achieva applications listed in the fitment data.

Standard Ignition draws on long-term electrical parts development to address common connector failure points such as heat-related terminal wear, brittle housings, and poor contact at the blade terminals. The S-1166 part number is a useful reference when sourcing an HVAC blower motor resistor connector for GM vehicles that require this connector style.

What It Helps Fix

• Blower motor resistor connector melting or heat damage
• Intermittent HVAC blower operation caused by poor terminal contact
• Corroded or broken connector terminals
• Damaged pigtail wiring at the resistor harness
• Electrical connection loss in the HVAC blower circuit

Installation Notes and Tips

Match the connector shape, terminal count, and wire configuration before installation. Verify the vehicle uses a 5-terminal female blade interface and compare the existing harness to the S-1166 connector before cutting or splicing. Use proper electrical repair practices when joining the harness, and confirm blower motor operation after installation.

Fits 2012-2020 Chevrolet Sonic, N/A; fits 2013-2020 Chevrolet Trax, N/A; fits 2012-2013 Chevrolet Spark, N/A; fits 2004-2005 Chevrolet Classic, N/A; fits 1999-2005 Pontiac Grand Am, N/A; fits 1999-2004 Oldsmobile Alero, N/A; fits 1997-2003 Chevrolet Malibu, N/A; fits 1998-1999 Oldsmobile Cutlass, N/A; fits 1997-1998 Oldsmobile Achieva, N/A; fits 1992-1996 Oldsmobile Achieva, N/A, 5 Term. Female.

Quality Assurance

Standard Ignition uses high-grade materials and application-focused electrical design to support reliable conductivity and consistent connector performance. The brand’s pigtail and socket lineup is developed to address common original-equipment connector failure issues in automotive electrical systems.
