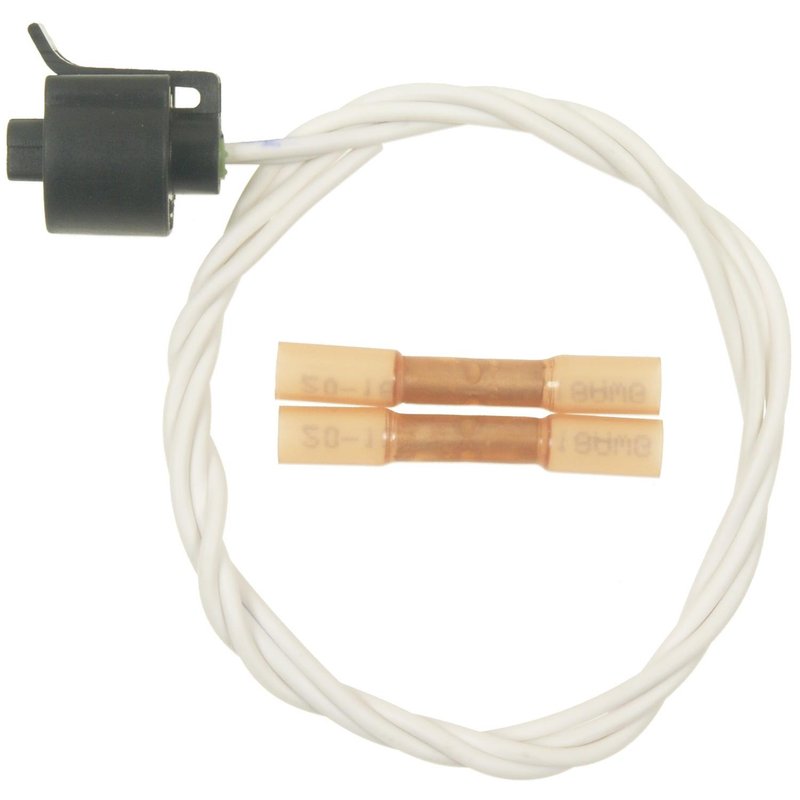

Standard Ignition S-1237 Suspension Ride Height Sensor Connector

Reliable Suspension Ride Height Sensor Connector for GM Vehicles

The Standard Ignition S-1237 Suspension Ride Height Sensor Connector is designed to provide a secure and durable electrical connection for suspension systems in select GM trucks and SUVs. Engineered for compatibility with Buick, Cadillac, Chevrolet, and GMC models, this connector ensures accurate sensor communication for optimal ride height control.

• Male connector with 16-inch harness length for flexible installation
• Includes two female pin socket terminals for reliable electrical contact
• Comes with butt splices to facilitate secure wire connections
• Two-wire configuration tailored for suspension ride height sensor applications
• Compatible with multiple GM models including Avalanche, Escalade, Suburban, Tahoe, and Yukon

Product Details and Specifications

The S-1237 suspension ride height sensor connector features a male connector gender paired with female pin socket terminals, ensuring a precise fit and stable electrical connection. The 16-inch harness length provides ample reach for installation within the vehicle’s suspension system wiring. This connector includes two wires and two terminals, designed specifically for suspension ride height sensors, which monitor and adjust vehicle height for improved handling and comfort. Butt splices are included to assist in creating secure and durable wire splices during installation.

Compatible GM Models and Applications

This connector is compatible with a range of GM vehicles, including Buick Lucerne, Cadillac DTS, Escalade (including ESV and EXT variants), Seville, Chevrolet Avalanche (1500 and 2500), Suburban (1500 and 2500), Tahoe, and GMC Yukon (including XL 1500 and XL 2500). The Standard Ignition S-1237 is designed to maintain proper sensor function in these models’ suspension systems, ensuring accurate ride height adjustments and system reliability.

• Restores proper electrical connection for suspension ride height sensors
• Addresses sensor communication failures causing uneven ride height
• Replaces damaged or corroded connectors affecting suspension performance
• Helps resolve intermittent sensor signal issues in GM trucks and SUVs
• Supports suspension system diagnostics and repairs

Installation Notes and Tips

When installing the S-1237 connector, ensure the male connector aligns correctly with the sensor’s female counterpart. Use the included butt splices to create secure wire connections, and verify that the two-pin socket terminals are properly seated to prevent signal loss. The 16-inch harness length allows for flexible routing within the suspension system wiring harness. It is recommended to inspect surrounding wiring and connectors for wear or damage during installation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The S-1237 Suspension Ride Height Sensor Connector undergoes quality control testing to ensure reliable electrical performance and durability. Please refer to Standard Ignition’s warranty policy for specific coverage details.
