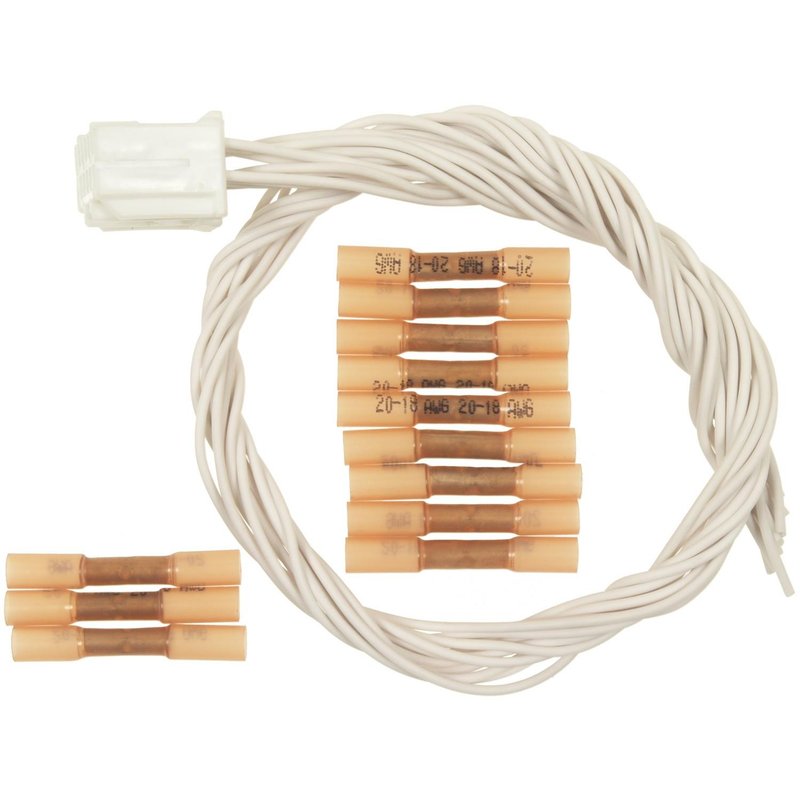

Standard Ignition S-1268 Communication Interface Module Connector

Overview of Standard Ignition Communication Interface Module Connector S-1268

The Standard Ignition Communication Interface Module Connector S-1268 is designed for reliable electrical connections in select GM vehicles. This male connector with a 17-inch harness is compatible with various Buick, Chevrolet, Pontiac, and Saturn models, ensuring proper communication module interfacing.

• Connector Gender: Male
• Includes butt splices for secure wiring
• Harness Length: 17 inches
• Terminal Gender: Female
• 12 terminals with pin socket type
• 12 wires included for comprehensive connectivity

Detailed Product Description

The Standard Ignition S-1268 Communication Interface Module Connector features a durable male connector designed to interface with female terminals using pin socket types. The 17-inch harness length provides flexibility during installation, while the inclusion of 12 wires and terminals supports complex electrical systems. Butt splices are included to facilitate secure and reliable wire connections, reducing the risk of electrical faults. This connector is engineered to meet the specifications required for communication modules in vehicles such as the Buick LeSabre and Terraza, Chevrolet Colorado and Trailblazer, Pontiac G8 and Relay, and Saturn Astra and Uplander.

Compatible Vehicles and Applications

This connector is compatible with the following makes and models:

• Buick Astra, LeSabre, Terraza
• Chevrolet Colorado, Trailblazer, Uplander
• Pontiac G8, Bonneville, Relay
• Saturn Astra, Relay, Uplander

It is specifically designed for communication interface modules requiring a male connector with female pin socket terminals, making it suitable for electrical repairs or replacements in these vehicles.

Common Issues Addressed by This Connector

• Faulty or damaged communication module connections
• Intermittent electrical signal loss in communication systems
• Corroded or worn terminals causing poor connectivity
• Broken or frayed wiring within the communication harness
• Upgrading or replacing OEM connectors for improved reliability

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation
• Use the included butt splices to secure wire connections properly
• Verify terminal orientation to match the female pin socket configuration
• Check harness length compatibility with your vehicle’s routing requirements
• Test the communication module after installation to confirm proper function

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring dependable performance. The S-1268 connector undergoes rigorous quality control to maintain electrical integrity and durability. Warranty coverage details should be confirmed with the product documentation or distributor.
