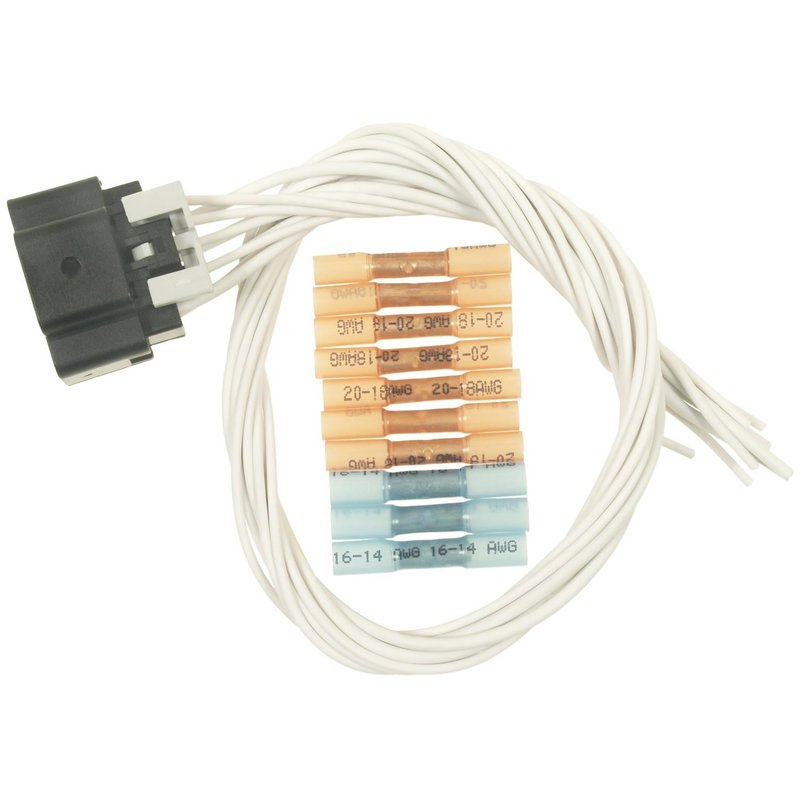

Standard Ignition S-1322 Power Seat Control Module Connector - Left

Overview of Standard Ignition Power Seat Control Module Connector S-1322

The Standard Ignition Power Seat Control Module Connector S-1322 is designed for reliable electrical connections in power seat control systems. This male connector with a 17-inch harness is compatible with various GM and related vehicles, ensuring proper fit and function.

• Connector Gender: Male
• Includes butt splices for secure wiring
• Harness Length: 17 inches
• Terminal Gender: Female blade socket
• 10 terminals and 10 wires included
• Compatible with multiple Buick, Cadillac, Chevrolet, GMC, Isuzu, Oldsmobile, and Saturn models

Detailed Product Description

The Standard Ignition S-1322 Power Seat Control Module Connector features a durable male connector designed to interface with female blade socket terminals. The connector includes 10 terminals and wires, providing a comprehensive wiring solution for power seat control modules. The 17-inch harness length offers flexibility during installation, while the included butt splices facilitate secure and reliable wire connections. This connector is engineered to meet the electrical demands of power seat systems in a range of vehicles, including the Chevrolet Silverado 1500, GMC Sierra 2500 HD, Cadillac Escalade, Buick Enclave, and Saturn Aura.

Compatible Vehicles and Applications

This connector is compatible with power seat control modules on the following makes and models:

• Buick Enclave, Lucerne, Rainier
• Cadillac Escalade, DTS, XLR
• Chevrolet Silverado 1500, Avalanche, Impala, Malibu, Monte Carlo, Suburban 1500, Tahoe
• GMC Sierra 1500, Sierra 2500 HD, Sierra 3500 HD, Yukon, Yukon XL 1500, Yukon XL 2500, Envoy, Envoy XL, Envoy XUV
• Isuzu Ascender, Bravada
• Oldsmobile Aurora
• Saturn Aura, Outlook

Common Issues Addressed by This Connector

• Intermittent or non-functioning power seat controls due to faulty wiring
• Damaged or corroded connectors causing poor electrical contact
• Broken or worn terminals affecting seat adjustment responsiveness
• Wiring harness damage requiring replacement or repair
• Upgrading or restoring original power seat control module connections

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical shorts
• Use the included butt splices to create secure wire connections
• Verify terminal orientation and connector gender match the vehicle’s power seat control module
• Route the 17-inch harness carefully to avoid pinching or abrasion
• Test seat control functions after installation to confirm proper operation

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The S-1322 connector undergoes quality checks to ensure reliable electrical performance in power seat control applications. Warranty coverage details should be confirmed with the product documentation or distributor.
