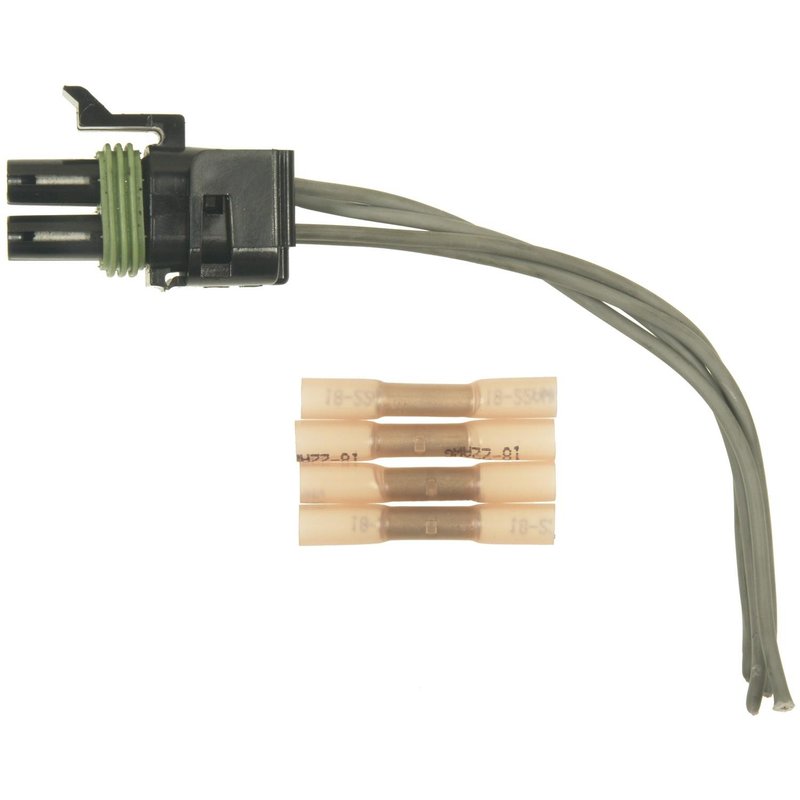

Standard Ignition S-1594 Auxiliary Heater Switch Connector

Overview of Standard Ignition Auxiliary Heater Switch Connector S-1594

The Standard Ignition Auxiliary Heater Switch Connector S-1594 is designed for reliable electrical connections in HVAC systems. This connector is compatible with various makes and models, including Buick, Cadillac, Chevrolet, and Honda, providing a secure and durable solution for auxiliary heater switch wiring.

• Connector Gender: Male
• Includes 1 connector with 4 blade terminals
• Terminal Gender: Female
• Harness Length: 7 inches
• Includes butt splices for easy wiring
• Wire Quantity: 4 wires

Detailed Product Description

The S-1594 auxiliary heater switch connector from Standard Ignition features a male connector with four female blade terminals, ensuring a precise fit and secure electrical contact. The 7-inch harness length provides flexibility during installation, while the included butt splices facilitate straightforward wire connections. This connector is engineered to meet the electrical demands of HVAC systems in vehicles such as the Buick LeSabre, Cadillac DeVille, Chevrolet Impala, and Honda Passport. Its design supports consistent performance and durability in automotive environments.

Compatible Vehicles and Applications

This auxiliary heater switch connector is compatible with a wide range of vehicles, including models from Buick, Cadillac, Chevrolet, Geo, GMC, Honda, Isuzu, Oldsmobile, Pontiac, and Suzuki. Notable compatible models include the Buick LeSabre, Cadillac Seville, Chevrolet S10, Honda Passport, and Pontiac Bonneville. The part number S-1594 is specifically suited for HVAC electrical connector replacements in these vehicles.

Common Issues Addressed by This Connector

• Faulty or damaged auxiliary heater switch connections causing HVAC malfunctions
• Intermittent electrical contact in heater switch wiring harness
• Corroded or worn blade terminals affecting heater switch operation
• Broken or frayed wiring in auxiliary heater circuits
• Need for reliable replacement connector in HVAC electrical repairs

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation to prevent electrical shorts
• Use the included butt splices to securely join wires, ensuring proper crimping for a solid connection
• Verify the connector orientation matches the original to maintain correct polarity
• Inspect wiring harness for damage before installation and replace any compromised sections
• Test the auxiliary heater switch function after installation to confirm proper operation

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring dependable performance in automotive HVAC systems. The S-1594 auxiliary heater switch connector undergoes rigorous quality control to maintain electrical integrity and durability. While specific warranty details may vary, Standard Ignition typically offers coverage against manufacturing defects to support long-term reliability.
