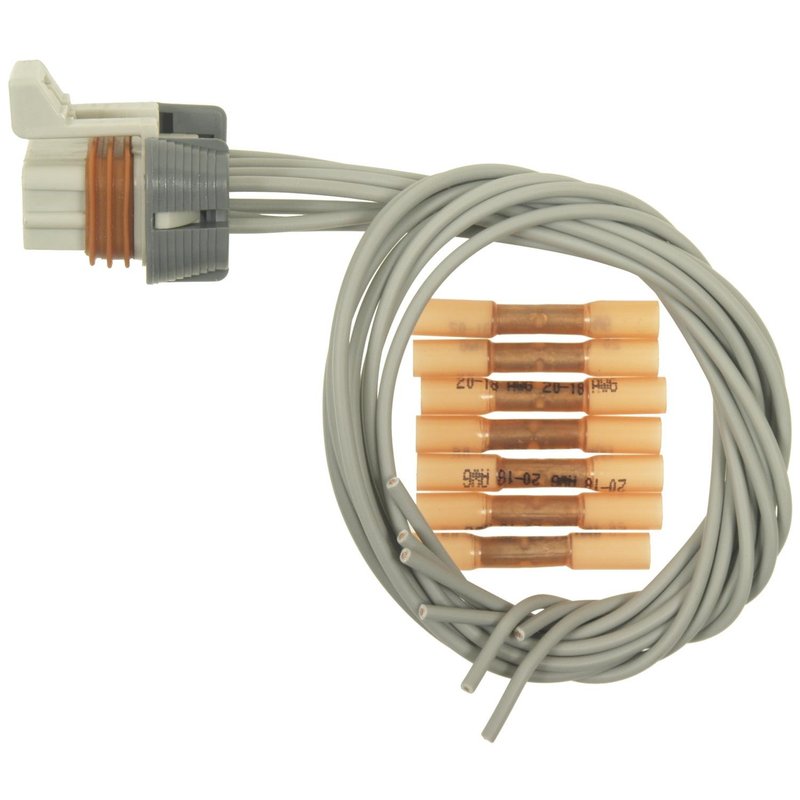

Standard Ignition S-1605 Automatic Transmission Wiring Harness Connector

Reliable Automatic Transmission Wiring Harness Connector

The Standard Ignition S-1605 Automatic Transmission Wiring Harness Connector is designed for precise electrical connections in select GM vehicles. Engineered with a male connector and female blade terminals, this connector ensures secure and efficient transmission wiring for models like the Chevrolet Corvette and Cadillac CTS.

• Connector Gender: Male
• Terminal Gender: Female
• Terminal Type: Blade terminals
• Terminal Quantity: 7
• Wire Quantity: 7
• Includes butt splices for easy wiring
• Compatible with Buick, Cadillac, Chevrolet, GMC, and Pontiac models

Product Details and Specifications

The S-1605 wiring harness connector from Standard Ignition features a 7-terminal design with female blade terminals housed in a durable male connector body. It includes seven wires and comes with butt splices to facilitate straightforward installation and reliable electrical continuity. This connector is specifically engineered for automatic transmission wiring systems, providing a stable connection that withstands vibration and environmental factors common in automotive applications.

Compatible Vehicles and Applications

This connector is compatible with a range of GM vehicles, including Buick LeSabre and Park Avenue, Cadillac CTS and Reatta, Chevrolet Caprice and Corvette, GMC Savana 1500/2500/3500, and Pontiac G8 and Grand Prix. It is ideal for use in automatic transmission wiring harness repairs or replacements on these models, ensuring proper electrical function and vehicle performance.

• Resolves faulty or corroded transmission wiring connections
• Replaces damaged or worn connectors in transmission harnesses
• Prevents intermittent electrical issues affecting transmission operation
• Facilitates restoration of proper signal transmission in wiring harness
• Supports maintenance and repair of transmission electrical systems

Installation Notes and Tips

When installing the S-1605 connector, ensure all wires are properly stripped and securely crimped using the included butt splices. Verify correct terminal alignment and polarity before final assembly. Use appropriate tools to avoid damaging blade terminals and confirm a snug fit to prevent electrical resistance or disconnection during vehicle operation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The S-1605 connector undergoes rigorous quality control to maintain consistent electrical conductivity and mechanical integrity. Warranty coverage details can be obtained from Standard Ignition documentation or authorized distributors.
