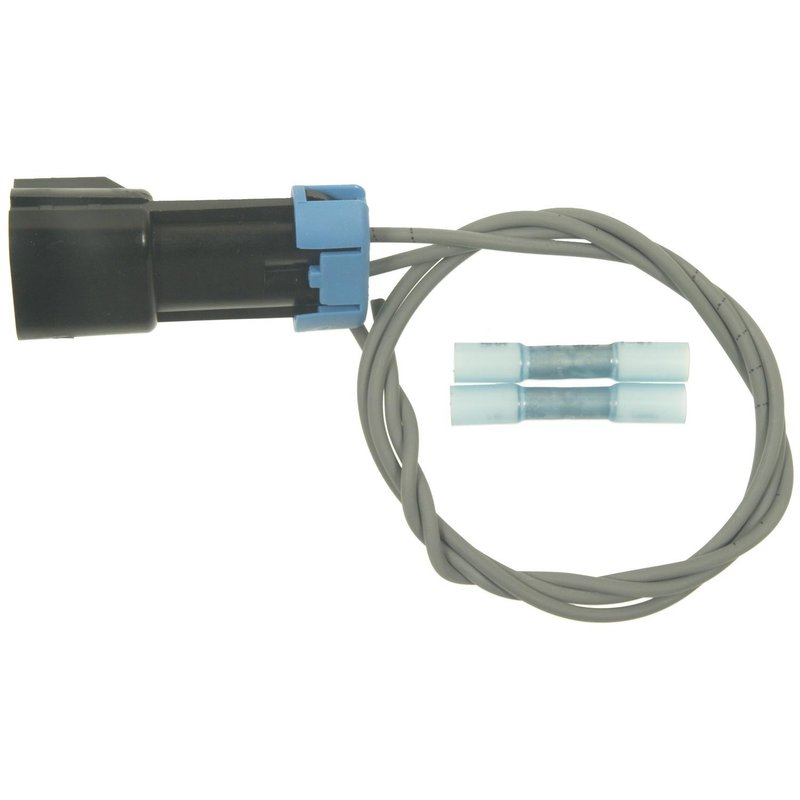

Standard Ignition S-1609 Vapor Canister Purge Valve Connector

Overview of Standard Ignition Vapor Canister Purge Valve Connector

The Standard Ignition S-1609 Vapor Canister Purge Valve Connector is designed for reliable electrical connections in emission control systems. This female connector with male blade terminals is compatible with various GM vehicles, including Buick, Cadillac, Chevrolet, and GMC models.

• Connector Gender: Female
• Includes 1 connector with 2 blade terminals
• Terminal Gender: Male
• Terminal Quantity: 2
• Wire Quantity: 2 wires included
• Includes butt splices for secure wiring

Product Details and Specifications

The S-1609 connector from Standard Ignition is engineered to ensure a secure and durable connection for the vapor canister purge valve circuit. Featuring male blade terminals housed in a female connector body, this part supports two wires and comes with butt splices to facilitate proper wiring repairs or replacements. The blade terminals provide a reliable electrical contact, minimizing the risk of corrosion or disconnection in the emission control system.

Compatible Vehicles and Applications

This vapor canister purge valve connector is compatible with a wide range of General Motors vehicles, including Buick models like Century and Skylark, Cadillac DeVille and Eldorado, Chevrolet Camaro and Corvette, GMC Yukon and Savana series, as well as Oldsmobile Cutlass variants and Pontiac Firebird and Grand Prix. The part number S-1609 is suitable for emission control electrical connector replacements on these vehicles, ensuring proper fit and function.

• Resolves intermittent purge valve electrical connection issues
• Prevents emission system fault codes related to wiring
• Replaces damaged or corroded connectors in vapor canister circuits
• Improves reliability of purge valve operation
• Supports emission compliance by maintaining proper valve control

Installation Notes and Tips

When installing the Standard Ignition S-1609 connector, ensure the wiring is clean and free of corrosion before connecting. Use the included butt splices to make secure wire connections, and verify that the male blade terminals are fully seated in the female connector housing. Proper insulation and strain relief will help maintain connection integrity over time. Refer to vehicle-specific service manuals for detailed wiring diagrams and connector locations.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The S-1609 connector undergoes quality control testing to ensure reliable electrical performance in emission control systems. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in materials and workmanship to support long-term durability.
