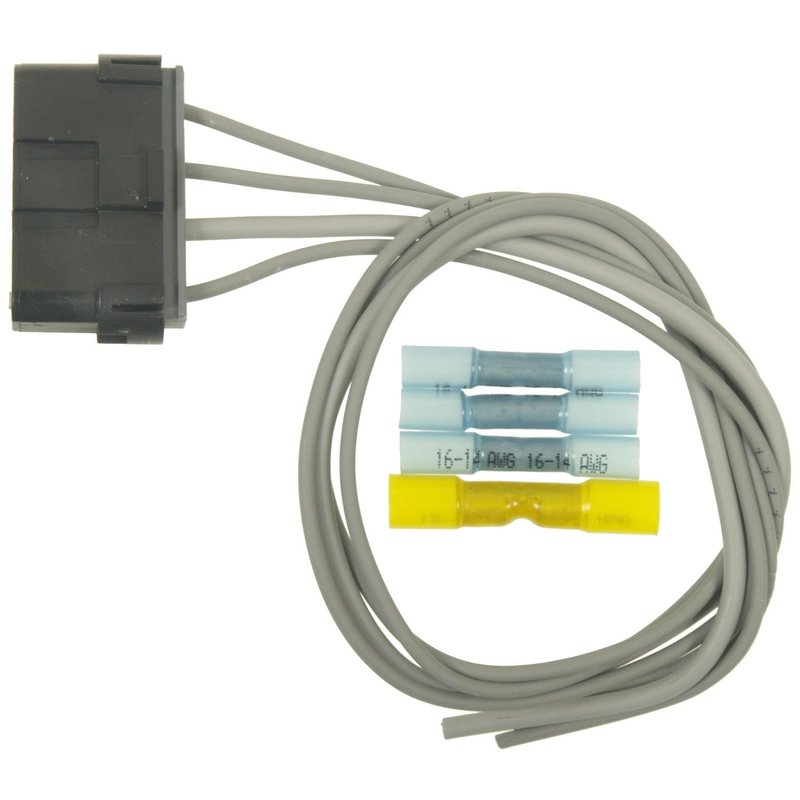

Standard Ignition S-1643 HVAC Blower Motor Resistor Connector - Rear

Overview of Standard Ignition HVAC Blower Motor Resistor Connector

The Standard Ignition S-1643 HVAC blower motor resistor connector is designed to provide reliable electrical connections for your vehicle's heating and cooling system. Engineered for select Chevrolet, GMC, and Saturn models, this connector ensures consistent performance and durability in HVAC applications.

• Connector Gender: Male
• Includes 1 connector with 4 blade female terminals
• Contains 4 wires and includes butt splices for secure wiring
• Terminal Quantity: 4 blade terminals for stable electrical contact
• Compatible with multiple Chevrolet, GMC, and Saturn models

Detailed Product Description

The Standard Ignition S-1643 is a male HVAC blower motor resistor connector featuring four female blade terminals. This connector is equipped with four wires and includes butt splices, facilitating a secure and professional installation. The 4-blade terminal design ensures a stable and reliable connection to the blower motor resistor, which is critical for proper HVAC system operation. This connector is specifically engineered to meet the electrical requirements of various Chevrolet, GMC, and Saturn vehicles, including models such as the Chevrolet Camaro, Silverado 1500, and GMC Sierra 2500 HD.

Compatible Vehicles and Applications

This HVAC blower motor resistor connector is compatible with a range of Chevrolet, GMC, and Saturn vehicles. It is suitable for use in models including but not limited to:

• Chevrolet Camaro
• Chevrolet Silverado 1500, 1500 HD, 2500, 2500 HD, 3500
• GMC Sierra 1500, 1500 HD, 2500, 2500 HD, 3500
• GMC K1500 Suburban
• Saturn SC, SC1, SC2, SL, SL1, SL2, SW1, SW2

Common Issues Addressed by This Connector

• Intermittent blower motor operation due to faulty connections
• HVAC blower motor resistor failures caused by poor terminal contact
• Electrical shorts or open circuits in the blower motor wiring harness
• Corrosion or damage to original blower motor resistor connectors
• Difficulty maintaining consistent HVAC fan speeds

Installation Notes and Tips

• Ensure the vehicle ignition is off before beginning installation
• Use the included butt splices to securely connect wires and prevent loose connections
• Verify the connector gender and terminal type match the existing wiring harness
• Inspect the wiring harness for damage before installation to avoid future issues
• Consult the vehicle’s service manual for specific HVAC system wiring diagrams

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable fit and function. The S-1643 connector undergoes rigorous quality control to provide consistent electrical performance in HVAC systems. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in materials and workmanship. Refer to the product packaging or manufacturer documentation for exact warranty terms.
