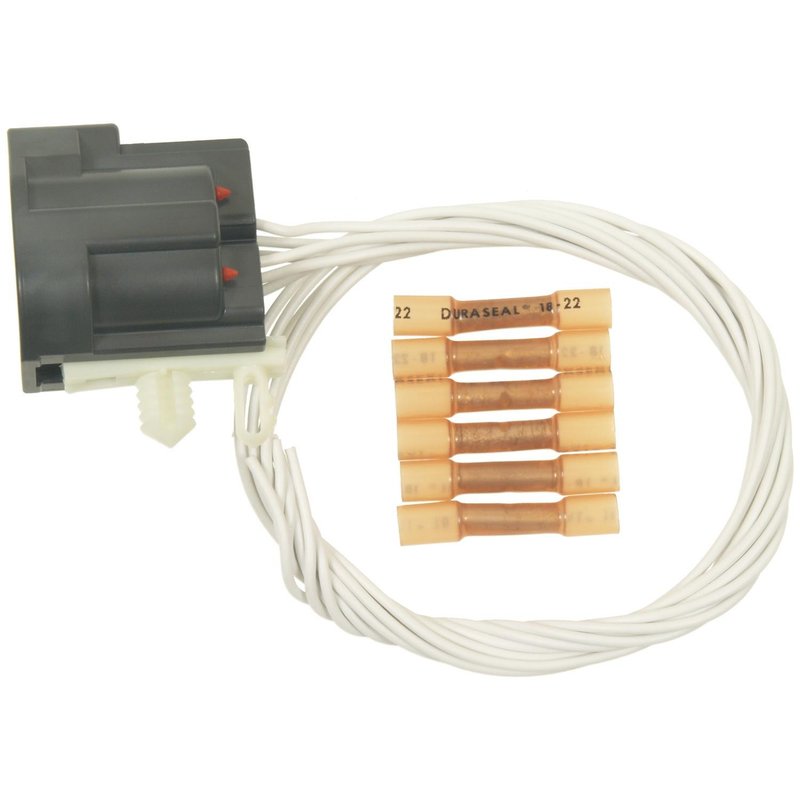

Standard Ignition S-1682 Instrument Panel Harness Connector

Reliable Instrument Panel Harness Connector for Cadillac and Chevrolet

The Standard Ignition S-1682 Instrument Panel Harness Connector is designed to provide a secure and efficient electrical connection for your Cadillac CTS, Chevrolet Equinox, or Cadillac SRX. Engineered with precision, this connector ensures reliable performance in your vehicle's electrical system.

• Male connector with 6 blade terminals
• Includes 6 wires and 6 female terminals
• Comes with butt splices for easy installation
• Compatible with Cadillac CTS, Chevrolet Equinox, and Cadillac SRX models
• Part number S-1682 for accurate replacement

Product Details and Specifications

The Standard Ignition S-1682 features a male connector housing that mates with female blade terminals, providing a secure and stable connection. This instrument panel harness connector includes six wires and six female blade terminals, allowing for multiple circuit connections within the vehicle's electrical system. The package also contains butt splices, facilitating straightforward wire splicing and ensuring a durable electrical link. This connector is specifically designed for use in Cadillac CTS, Chevrolet Equinox, and Cadillac SRX models, making it a precise fit for these vehicles.

Common Applications and Issues Addressed

• Replacement of damaged or corroded instrument panel connectors
• Restoring electrical connectivity in the dashboard wiring harness
• Fixing intermittent electrical faults related to loose or worn connectors
• Upgrading or repairing wiring connections in Cadillac CTS, Chevrolet Equinox, and Cadillac SRX
• Ensuring proper signal transmission for instrument panel functions

Installation Notes and Tips

When installing the Standard Ignition S-1682 connector, ensure that all wires are properly stripped and securely crimped using the included butt splices. Verify that the male connector aligns correctly with the corresponding female terminals to avoid misconnection. It is recommended to use appropriate tools for crimping and to test the electrical continuity after installation. Proper installation will help maintain the integrity of the vehicle’s instrument panel wiring system.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable fit and function. The S-1682 instrument panel harness connector undergoes rigorous quality control to provide consistent performance. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in materials and workmanship, supporting long-term durability in Cadillac CTS, Chevrolet Equinox, and Cadillac SRX applications.
