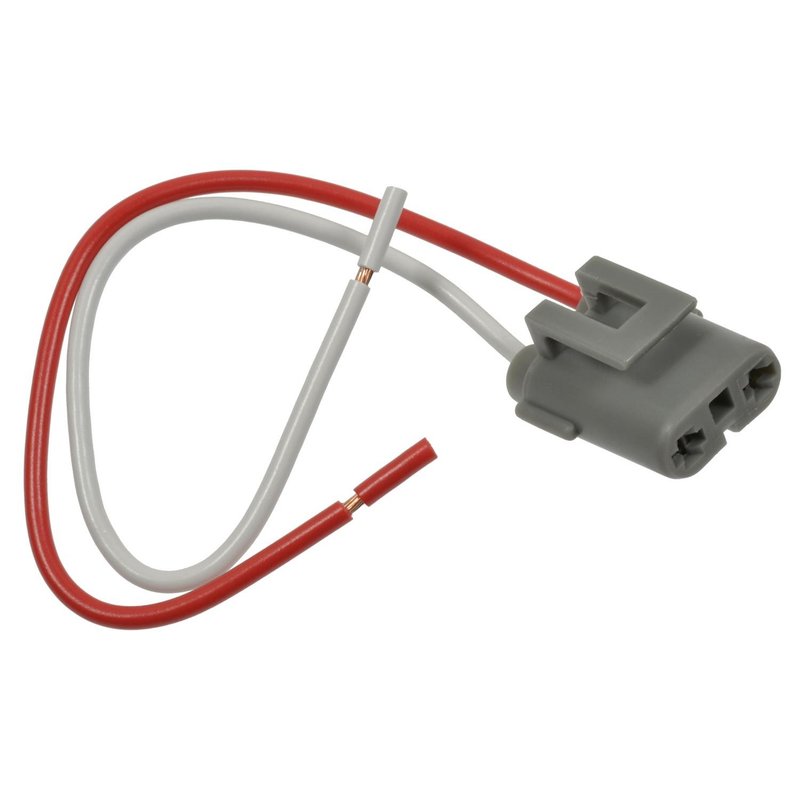

Standard Ignition S-1685 Headlight Connector

Headlight Connector for OE-Style Repairs

Restore a secure electrical connection at the headlamp with this Standard Ignition headlight connector, part number S-1685. It is built with a male oval connector body, female blade terminals, and two-wire construction for a direct repair on select GM applications.

Fits 2002-2008 Chevrolet Trailblazer, N/A; fits 2004-2007 Buick Rainier, N/A; fits 2002-2006 Chevrolet Trailblazer EXT, N/A; fits 2002-2006 GMC Envoy XL, N/A; fits 2004-2005 GMC Envoy XUV, N/A; fits 2002-2004 Oldsmobile Bravada, low beam.

Key Features

• Standard Ignition S-1685 headlight connector for electrical connector repair
• Male oval connector design with two female blade terminals
• Two-wire layout for headlamp circuit service
• Includes butt splices for wire-to-wire repair work
• Built with high-grade materials to support strong conductivity and consistent contact
• Cross-references Dorman TECHoice 645-201 for the same application

Detailed Description

The Standard Ignition S-1685 is a replacement headlight connector designed for vehicles where the original connector has heat damage, corrosion, or terminal wear. Its oval housing and blade-terminal layout are suited to headlight circuit repair on select Chevrolet Trailblazer, Buick Rainier, GMC Envoy XL, GMC Envoy XUV, and Oldsmobile Bravada applications. Standard Ignition develops pigtails and sockets for electrical repair jobs, using materials selected to maintain conductivity and dependable terminal contact.

This part number, S-1685, is a practical OE-style solution when the factory connector no longer holds a stable connection at the lamp. It is also listed with interchange references including Premium Guard PT1183 and other common aftermarket numbers for the same application.

Common Problems This Part Can Help Solve

• Intermittent headlight operation caused by a loose connector
• Heat-related melting or discoloration at the lamp plug
• Corrosion at the terminal interface
• Broken or fatigued blade terminals
• Voltage drop from poor electrical contact at the headlamp

Installation Notes and Tips

Match the connector shape, terminal style, and wire count to the original harness before installation. Verify the headlight circuit and terminal orientation on the vehicle side, then splice the replacement connector into the existing wiring using proper electrical repair practices. Confirm a solid connection after installation and test headlamp function before returning the vehicle to service.

Quality Assurance

Standard Ignition focuses on electrical repair components engineered to address common failure points found in original equipment connectors. The S-1685 is built for technician-focused repair work and consistent electrical performance in the listed applications.
