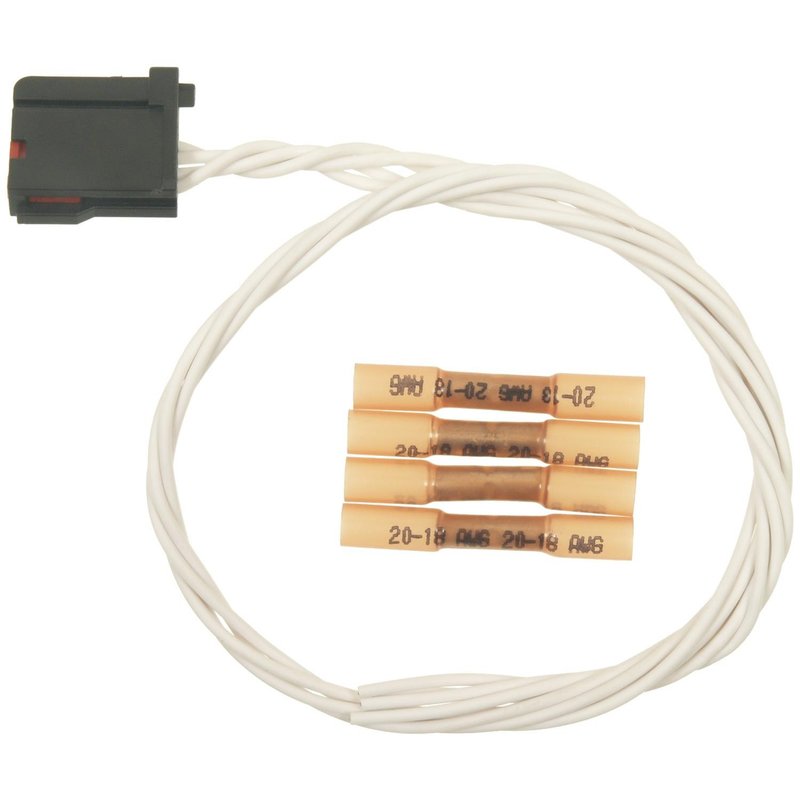

Standard Ignition S-1709 Audio / Video Module Connector

Audio / Video Module Connector for GM Applications

Standard Ignition S-1709 is an audio / video module connector built for electrical repair work where a damaged factory connector needs to be replaced. It uses high-grade materials to support solid conductivity and reliable terminal contact in GM vehicles with the listed fitments.

• Male connector design with 1 connector body
• Female blade terminals with 4 terminal positions
• 4-wire configuration for module and harness repair
• Includes butt splices for wire-to-wire connection work
• OE-style replacement for audio / video module connector service

Detailed Product Overview

This Standard Ignition connector is intended for electrical connector repair on GM trucks, SUVs, and vans that use the listed audio / video module interface. The S-1709 is built with four female blade terminals and a male connector housing to restore a secure connection where the original plug has failed, loosened, or suffered terminal damage. It cross-references GM service part numbers such as 19179273 and EC1206 for the same application.

Fits 2009 Buick Enclave, N/A; Fits 2008-2009 Cadillac CTS, N/A; Fits 2009 Cadillac Escalade, N/A; Fits 2009 Cadillac Escalade ESV, N/A; Fits 2009 Cadillac Escalade EXT, N/A; Fits 2009 Chevrolet Avalanche, N/A; Fits 2009 Chevrolet Silverado 1500, N/A; Fits 2009 Chevrolet Silverado 2500 HD, N/A; Fits 2009 Chevrolet Silverado 3500 HD, N/A; Fits 2009 Chevrolet Suburban 1500, N/A; Fits 2009 Chevrolet Suburban 2500, N/A; Fits 2009 Chevrolet Tahoe, N/A; Fits 2009 Chevrolet Traverse, N/A; Fits 2009 GMC Acadia, N/A; Fits 2009 GMC Sierra, N/A; Fits 2009 GMC Sierra 1500, N/A; Fits 2009 GMC Sierra 2500 HD, N/A; Fits 2009 GMC Sierra 3500 HD, N/A; Fits 2009 GMC Yukon, N/A; Fits 2008-2009 Hummer H2, N/A; Fits 2009 Saturn Outlook, N/A; Fits 2008 Chevrolet Equinox, N/A; Fits 2008 Chevrolet Express 1500, N/A; Fits 2008 Chevrolet Express 2500, N/A; Fits 2008 Chevrolet Express 3500, N/A; Fits 2008 GMC Savana 1500, N/A; Fits 2008 GMC Savana 2500, N/A; Fits 2008 GMC Savana 3500, N/A; Fits 2008 Pontiac Torrent, N/A.

Common Repair Uses

• Broken or heat-damaged factory connector housing
• Loose terminal fit causing intermittent audio or video signal loss
• Corroded blade terminals at the module connection
• Wiring repair after connector shell cracking or pin damage
• Restoring a secure connection during module service on GM vehicles

Installation Notes and Tips

Match the connector gender, terminal type, and wire count to the original harness before installation. Verify terminal seating and wire routing, and use proper crimping and splice practices when joining the harness. Confirm vehicle application by year, make, and model before replacing the connector on a Buick Enclave, Chevrolet Silverado, or GMC Sierra.

Quality Assurance

Standard Ignition designs its pigtails and sockets with technician-focused engineering and durable materials to help restore dependable electrical connections. The S-1709 is developed as a repair solution for original equipment connector failures in the listed GM applications.
