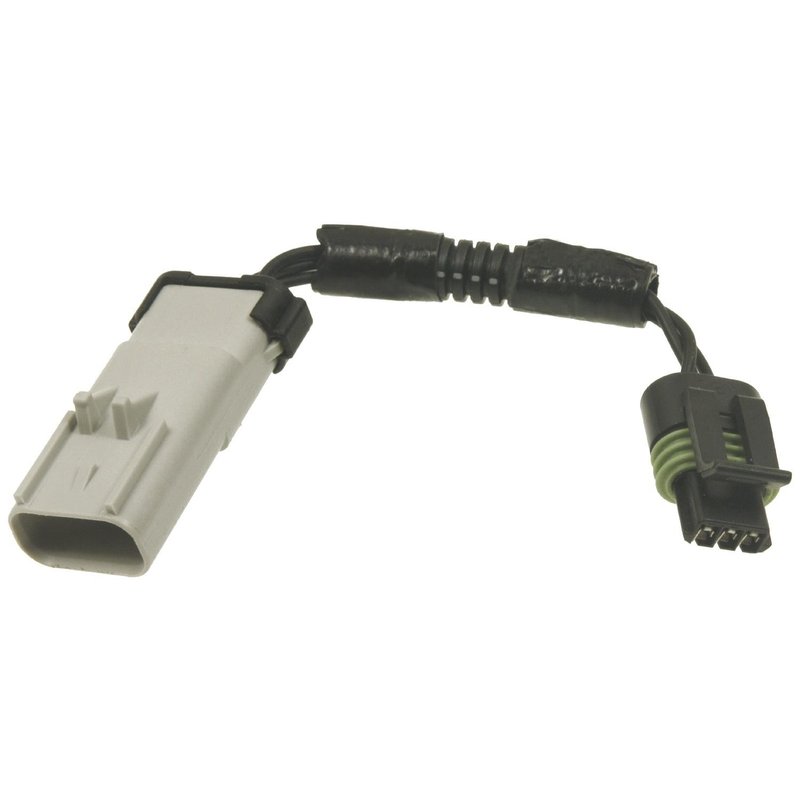

Standard Ignition S-1739 Manifold Absolute Pressure Sensor Connector

Overview of Standard Ignition Manifold Absolute Pressure Sensor Connector

The Standard Ignition S-1739 is a reliable manifold absolute pressure (MAP) sensor connector designed specifically for Dodge Ram 3500 models. This electrical connector ensures secure and accurate sensor communication, essential for optimal engine performance.

• Connector Gender: Female and Male
• Connector Quantity: 2 connectors included
• Contents: Complete wiring harness
• Harness Length: 7 inches
• Terminal Gender: Female and Male terminals
• Terminal Quantity: 3 female and 3 male terminals
• Terminal Type: Pin socket terminals
• Wire Quantity: 3 wires in harness

Detailed Product Description

The Standard Ignition S-1739 manifold absolute pressure sensor connector features a dual-gender design with both female and male connectors and terminals, facilitating a secure and precise connection to the MAP sensor and vehicle wiring. The included wiring harness measures 7 inches in length, providing adequate reach for installation within the engine bay of Dodge Ram 3500 trucks. With three wires and pin socket terminals on both ends, this connector supports accurate signal transmission necessary for engine control modules to monitor manifold pressure effectively.

Compatible Vehicles and Applications

This connector is compatible with Dodge Ram 3500 models, ensuring proper fitment and function. It is designed to replace faulty or damaged MAP sensor connectors, restoring reliable sensor communication and engine performance.

• Resolves intermittent or faulty MAP sensor signals
• Fixes engine performance issues related to incorrect manifold pressure readings
• Eliminates wiring harness damage or corrosion problems
• Prevents check engine light triggers related to MAP sensor faults
• Supports accurate engine load and fuel management

Installation Notes and Tips

When installing the Standard Ignition S-1739 connector, ensure the vehicle ignition is off and the battery is disconnected to avoid electrical shorts. Verify the connector orientation matches the original harness and sensor terminals. The 7-inch wiring harness length allows for straightforward routing without excessive tension. Use appropriate tools to secure terminals and connectors firmly, preventing loose connections that could affect sensor readings.

Quality Assurance and Warranty

Standard Ignition parts, including the S-1739 manifold absolute pressure sensor connector, are manufactured to meet or exceed OEM specifications. This product undergoes rigorous quality control to ensure durability and reliable electrical performance. Warranty coverage details can be obtained from Standard Ignition documentation or authorized distributors.
