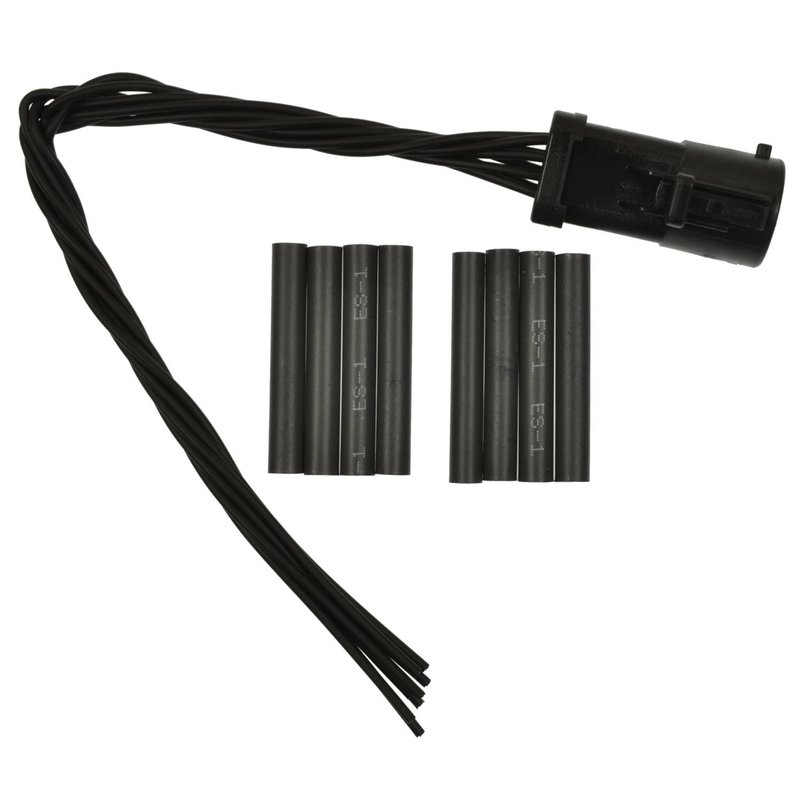

Standard Ignition S-1756 Distributor Ignition Pickup Connector

Distributor Ignition Pickup Connector for Ford Applications

Standard Ignition S-1756 is a direct replacement distributor ignition pickup connector for repairing damaged electrical connections without replacing the full harness. It is built with high-grade terminal materials and a durable polyamide housing for dependable electrical fit and long service life.

• Direct replacement distributor ignition pickup connector
• Female connector with 8 pin terminals and 8-wire configuration
• 16 ga. harness with 12.5 in. length and 2 in. housing length
• Constructed with copper alloy, brass, phosphor bronze, and polyamide resin materials
• 100% tested for mechanical and electrical fit, form, and function

Detailed Product Overview

Standard Ignition S-1756 is intended for ignition and electrical connector repair where the original distributor pickup connector has failed, cracked, or lost terminal integrity. The connector is a practical OE-style replacement for Ford, Lincoln, and Mercury applications, including long-tail search needs such as a Ford Ranger distributor ignition pickup connector, Ford Explorer ignition connector repair, or Lincoln Navigator electrical connector replacement. This part cross-references Dorman - TECHoice 645-101 for the same application.

The connector uses copper alloy, brass, and phosphor bronze terminals to support stable electrical contact, while the polyamide housing helps maintain connector shape and durability. Standard Ignition also tests these connectors for proper mechanical and electrical fit, form, and function before release. The S-1756 part number is commonly searched for ignition connector repair on vehicles such as Ford Ranger, Ford Explorer, and Ford Mustang.

Common Repair Uses

• Broken or heat-damaged distributor pickup connector
• Loose terminal contact causing intermittent ignition signal
• Cracked connector housing at the ignition harness
• Corrosion or wear at the electrical terminal interface
• Harness-side connector failure during ignition system service

Installation Notes and Fitment

Compatible With 1988-2011 Ford Ranger, 1998-2009 Ford Expedition, 2004-2009 Lincoln Navigator, 1999-2002 Lincoln Navigator, 2001-2005 Ford Explorer Sport Trac, 2000-2004 Ford F-250 Super Duty, 2000-2004 Ford F-350 Super Duty, 2001-2004 Ford Mustang, 1994-1995 Ford Mustang, 2003 Ford E-150, 2003 Ford E-150 Club Wagon, 2003 Ford E-250, 2003 Ford E-350 Club Wagon, 2000-2003 Ford Excursion, 2001-2003 Ford Explorer, 1995-1998 Ford Explorer, 1999-2003 Ford Windstar, 2001-2003 Lincoln Town Car, 1999-2002 Ford E-150 Econoline, 1995-1996 Ford E-150 Econoline, 1999-2002 Ford E-150 Econoline Club Wagon, 1995-1996 Ford E-150 Econoline Club Wagon, 1999-2002 Ford E-250 Econoline, 1999-2002 Ford E-350 Econoline Club Wagon, 1996 Ford E-350 Econoline Club Wagon, 1988-1989 Ford E-350 Econoline Club Wagon, 2002 Ford Expedition, 2002 Lincoln Navigator, 1999-2000 Ford E-350 Econoline, 1996 Ford E-350 Econoline, 1988-1989 Ford E-350 Econoline, 2000 Ford E-350 Econoline, 1998 Mercury Mountaineer, 1988-1997 Ford F-250, 1997 Ford F-250 HD, 1988-1997 Ford F-350, 1988-1997 Ford Thunderbird, 1990-1996 Ford Bronco, 1991-1996 Ford E-150 Econoline, 1991-1996 Ford E-150 Econoline Club Wagon, 1991-1996 Ford E-250 Econoline, 1990-1996 Ford E-350 Econoline, 1990-1996 Ford E-350 Econoline Club Wagon, 1992-1996 Ford F-150, 1990-1995 Ford F-150, 1990-1995 Ford F-250, 1990-1995 Ford F-350, 1988-1995 Ford Taurus, 1988-1995 Mercury Cougar, 1988-1995 Mercury Sable, 1988-1994 Lincoln Continental, 1992-1993 Ford Crown Victoria, 1990-1992 Ford Bronco, 1990-1991 Ford Bronco, 1990-1991 Ford E-250 Econoline Club Wagon, 1991 Ford LTD Crown Victoria, 1989 Ford Bronco, and 1988-1989 Ford E-250 Econoline Club Wagon.

Before installation, verify connector style, terminal count, and harness routing against the original part. This connector is listed with a female connector gender, female terminal gender, pin terminals, 16 ga. wire, and a 12.5 in. harness length.

Quality Assurance

Standard Ignition manufactures this connector as a direct replacement electrical repair part and tests it for mechanical and electrical fit, form, and function. The S-1756 is built from durable terminal and housing materials to support consistent connector performance in ignition system service.
