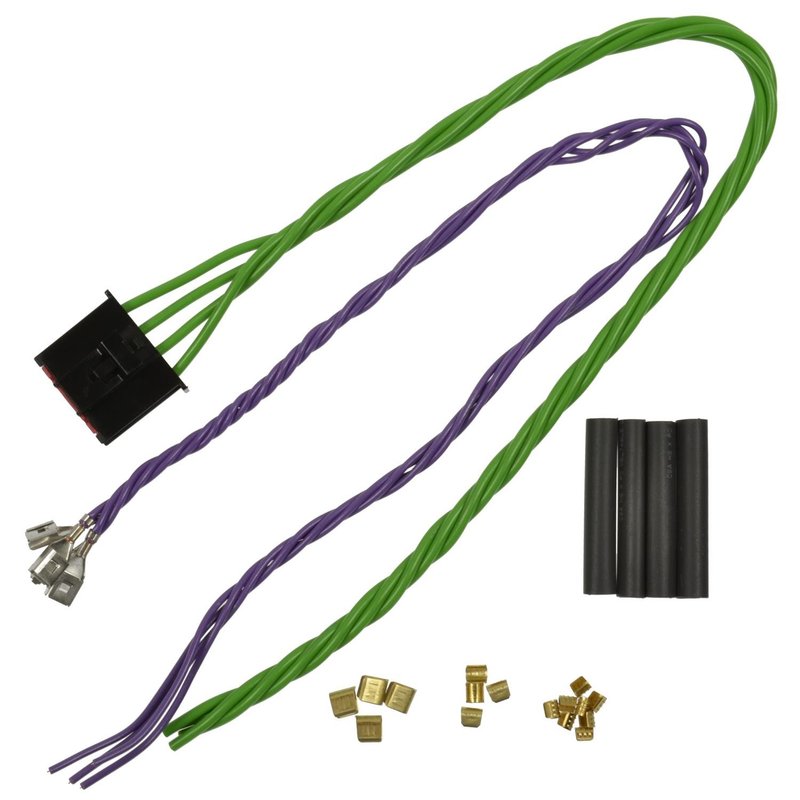

Standard Ignition S-1759 HVAC Blower Motor Resistor Harness - Front or Rear

Overview of Standard Ignition HVAC Blower Motor Resistor Harness

The Standard Ignition S-1759 HVAC blower motor resistor harness is designed to provide reliable electrical connectivity for your vehicle's heating and cooling system. Engineered for select Chrysler, Dodge, Isuzu, and Jeep models, this harness ensures consistent blower motor performance.

• Connector Gender: Male
• Single Connector Quantity
• Harness Length: 13 inches
• Terminal Gender: Female
• Four Blade Terminals
• Four Wires Included

Detailed Product Description

This HVAC blower motor resistor harness (part number S-1759) features a 13-inch length with a male connector designed to interface seamlessly with your vehicle's blower motor resistor assembly. The harness includes four female blade terminals, providing secure and stable connections for four wires. This configuration supports proper electrical flow and helps maintain the blower motor's functionality in your Chrysler 300, Dodge Charger, Jeep Grand Cherokee, and other compatible models.

Compatible Vehicles and Applications

Compatible with a range of Chrysler, Dodge, Isuzu, and Jeep vehicles, this harness is suitable for models including the Chrysler 300, 300M, Concorde, Intrepid, LHS, Magnum, New Yorker, and Pacifica. It also fits Dodge Caravan, Charger, Durango, Grand Caravan, Nitro, and Town & Country, as well as Jeep Commander, Grand Cherokee, Liberty, and Voyager, plus the Isuzu Ascender and Aspen. This part is essential for maintaining HVAC blower motor operation in these vehicles.

Common Issues Addressed by This Harness

• Intermittent or non-functioning blower motor speeds
• Electrical connection failures in the blower motor resistor circuit
• Blower motor resistor overheating due to poor wiring connections
• HVAC blower motor not responding to control settings
• Wiring harness damage or corrosion causing HVAC system faults

Installation Notes and Tips

• Ensure the vehicle ignition is off before installation to prevent electrical shorts
• Verify connector orientation; the male connector should align with the resistor assembly
• Inspect existing wiring for damage before connecting the new harness
• Secure the harness to avoid contact with moving parts or heat sources
• Test blower motor operation after installation to confirm proper function

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring durability and reliable performance. The S-1759 blower motor resistor harness undergoes quality control inspections to maintain consistent standards. Warranty coverage details can be obtained from the product documentation or authorized distributors.
