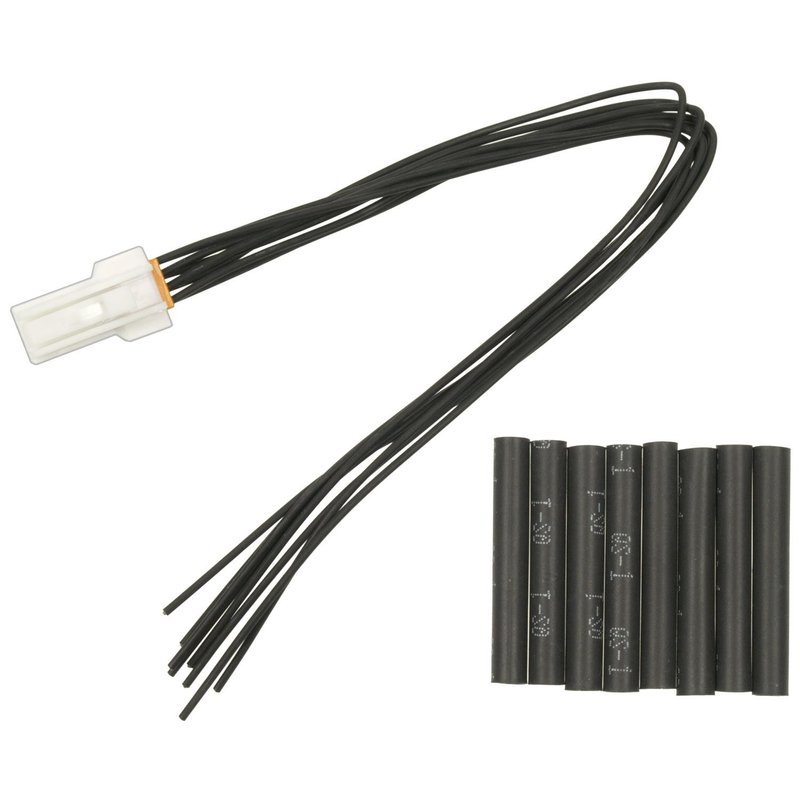

Standard Ignition S-1775 HVAC Blend Door Actuator Connector

HVAC Blend Door Actuator Connector for Ford and Lincoln

Standard Ignition S-1775 is a direct replacement HVAC blend door actuator connector for repairing damaged wiring at the climate control connection point. It helps restore a secure electrical connection without replacing the full harness, making it a practical fix for Ford, Lincoln, and Mercury applications across a wide range of model years.

Built with copper alloy, brass, and phosphor bronze terminals in a polyamide resin housing, this connector is made for dependable electrical contact and long service life. Standard Ignition S-1775 is 100% tested for mechanical and electrical fit, form, and function.

Key Features

• Direct replacement HVAC blend door actuator connector
• Male connector with female pin socket terminals
• 8 1/4-inch harness length for repair applications
• Includes butt splices for wire repair work
• Constructed with copper alloy, brass, phosphor bronze, and polyamide resin
• 100% tested for proper fit, form, and function

Detailed Description

This Standard Ignition S-1775 connector is used when the original HVAC connector is heat-damaged, broken, corroded, or no longer making reliable contact. It is a direct replacement electrical connector for blend door actuator repair on many Ford E-Series, Explorer, Expedition, F-Series, Taurus, Ranger, Windstar, and related Lincoln and Mercury vehicles. This part cross-references Four Seasons 37285 for the same application.

Use Standard Ignition S-1775 when you need a clean electrical repair at the actuator connector instead of replacing the entire harness. It is also a fitment-based solution for select Ford E-150, E-250, E-350 Super Duty, and Ford Explorer HVAC repair needs, including applications where the original connector has failed at the terminal interface.

What It Helps Fix

• Broken or melted HVAC actuator connector housing
• Intermittent blend door actuator operation
• Corroded or loose terminal connections
• Loss of temperature or mode door control
• Damaged wiring at the climate control connector

Installation Notes and Tips

• Verify connector style, terminal count, and wire layout before installation.
• Match the vehicle’s HVAC system type; some Ford truck and car applications exclude automatic temperature control.
• Use the included butt splices for a secure wire repair.
• Confirm fitment on the specific vehicle and HVAC configuration before final assembly.
• Fits 2011-2017 Ford E-350 Super Duty, Main; Fits 2007-2009 Ford E-350 Super Duty, Main; Fits 1999-2003 Ford E-350 Super Duty, Main; Fits 2014-2017 Ford Expedition, steering column wiring harness connector for auxiliary use; Fits 2014-2017 Ford Expedition, rear window defogger module connector compatible with rear HVAC floor mode door actuator harness and power seat switch; Fits 2011-2017 Ford Fiesta; Fits 2011-2014 Ford E-150, Main; Fits 2007-2009 Ford E-150, Main; Fits 2002 Ford E-150; Fits 2011-2014 Ford E-250, Main; Fits 2007-2009 Ford E-250, Main; Fits 2010-2014 Ford Econoline Van, Main; Fits 2010-2014 Ford Econoline Wagon, Main; Fits 2013-2014 Lincoln Navigator, steering column wiring harness connector for auxiliary use; Fits 2013-2014 Lincoln Navigator, rear window defogger module connector compatible with rear HVAC floor mode door actuator harness and power seat switch; Fits 1997-2013 Ford Expedition; Fits 1998-2012 Lincoln Navigator; Fits 1993-2011 Ford Crown Victoria; Fits 1995-2011 Ford Ranger; Fits 1993-2011 Mercury Grand Marquis; Fits 2010 Ford E-150; Fits 2003-2006 Ford E-150; Fits 2010 Ford E-250; Fits 2003-2006 Ford E-250; Fits 2010 Ford E-350 Super Duty; Fits 2004-2006 Ford E-350 Super Duty; Fits 1995-2010 Ford Explorer; Fits 2007-2010 Ford Explorer Sport Trac; Fits 2001-2005 Ford Explorer Sport Trac; Fits 1999-2010 Ford F-250 Super Duty; Fits 1999-2010 Ford F-350 Super Duty; Fits 1997-2010 Mercury Mountaineer; Fits 2007-2008 Ford E-150 Econoline, Main; Fits 2007-2008 Ford E-350 Econoline, Main; Fits 2007 Ford F-250; Fits 1996-2003 Ford F-250; Fits 2007 Ford F-350; Fits 1999-2003 Ford F-350; Fits 1996-1997 Ford F-350; Fits 1993-2007 Ford Taurus; Fits 2006 Ford Econoline, Main; Fits 2004-2006 Ford F-250, Not compatible with automatic AC systems; Fits 2004-2006 Ford F-350, Not compatible with automatic AC systems; Fits 2003-2005 Ford E-150 Club Wagon; Fits 2003-2005 Ford E-350 Club Wagon; Fits 1999-2005 Ford Econoline; Fits 2000-2005 Ford Excursion; Fits 2003-2005 Lincoln Aviator; Fits 1993-2005 Mercury Sable; Fits 2004 Ford F-150 Heritage; Fits 1995-2004 Ford Grand Marquis; Fits 1994-2004 Ford Mustang; Fits 2003-2004 Mercury Marauder; Fits 2002-2003 Ford Explorer Sport, Main; Fits 1996-2003 Ford F-150; Fits 1995-2003 Ford Windstar; Fits 2002-2003 Lincoln Blackwood; Fits 1993-2002 Ford E-150 Econoline; Fits 1993-2002 Ford E-150 Econoline Club Wagon; Fits 1993-2002 Ford E-250 Econoline; Fits 2002 Ford E-350 Club Wagon, Main; Fits 1993-2002 Ford E-350 Econoline Club Wagon; Fits 1993-2002 Lincoln Continental; Fits 1990 Lincoln Continental; Fits 1999-2002 Mercury Cougar; Fits 1994-1997 Mercury Cougar; Fits 2001 Ford Explorer Sport, w/o Auto. Temp Control; Main; Fits 1998-2001 Ford F-100 Ranger; Fits 1996-2001 Ford Sable; Fits 1995-2000 Ford Contour; Fits 1993-2000 Ford E-350 Econoline; Fits 1995-2000 Mercury Mystique; Fits 1993-1998 Lincoln Mark VIII; Fits 1996-1997 Ford F-100 Ranger, w/ Manual AC; Fits 1997 Ford F-250 HD, White; 8 Term. Female; Fits 1994-1997 Ford Thunderbird; Fits 1994-1997 Ford Thunderbird, excludes vehicles with automatic temperature control; Fits 1990-1997 Lincoln Town Car; Fits 1994-1997 Mercury Cougar, excludes vehicles with automatic temperature control; Fits 1994-1995 Ford Sable, excludes vehicles with automatic temperature control; Fits 1991-1995 Ford Taurus, excludes vehicles with automatic temperature control; Fits 1991-1995 Mercury Sable, excludes vehicles with automatic temperature control; Fits 1994 Ford Cougar, excludes vehicles with automatic temperature control; Fits 1993 Ford Taurus, White; 8 Term. Female; Fits 1993 Mercury Sable, White; 8 Term. Female; Fits 1992 Ford Crown Victoria, automatic temperature control is needed for proper installation; Fits 1990-1992 Mercury Grand Marquis, automatic temperature control is needed for proper installation; Fits 1991 Ford Grand Marquis, automatic temperature control is needed for proper installation; Fits 1990-1991 Ford LTD Crown Victoria, automatic temperature control is needed for proper installation.

Quality Assurance

Standard Ignition manufactures this connector with high-grade terminal materials and a durable polyamide housing, then tests each electrical connector for proper mechanical and electrical fit, form, and function. Part number S-1775 is built as a direct replacement repair component for consistent service in HVAC electrical applications.
