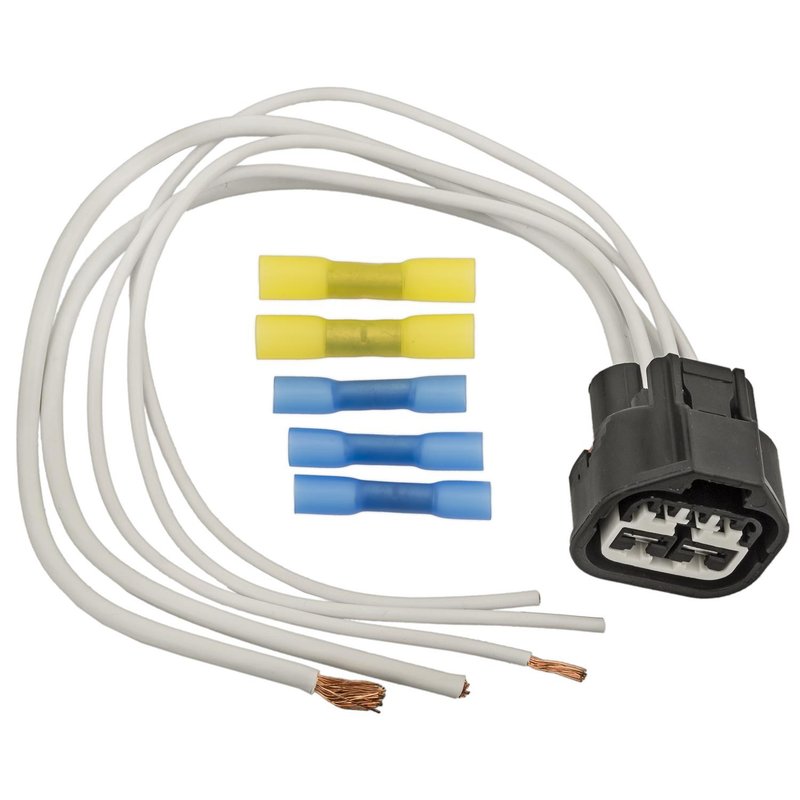

Standard Ignition S-1779 HVAC Blower Motor Resistor Harness - Front

Overview of Standard Ignition HVAC Blower Motor Resistor Harness

The Standard Ignition S-1779 HVAC blower motor resistor harness is designed to provide reliable electrical connectivity for your vehicle's heating and cooling system. Compatible with various Ford, Jaguar, Lincoln, and Mercury models, this harness ensures proper blower motor function and consistent climate control performance.

• Connector Gender: Female
• Connector Quantity: 1
• Terminal Gender: Female
• Terminal Quantity: 5
• Terminal Type: Blade
• Wire Quantity: 5

Detailed Product Description

This HVAC blower motor resistor harness (part number S-1779) features a single female connector and five female blade terminals, supporting five wires to maintain secure and efficient electrical connections. The blade terminal design facilitates easy installation and reliable contact, reducing the risk of electrical faults. This harness is engineered to meet the specifications required for proper blower motor resistor operation, which is critical for regulating fan speeds in your vehicle's HVAC system.

Compatible Vehicles and Applications

The Standard Ignition S-1779 is compatible with a range of Ford, Jaguar, Lincoln, and Mercury vehicles, including models such as the Ford Explorer, F-250 Super Duty, Lincoln Navigator, Mercury Mountaineer, and Jaguar S-Type. This part is suitable for HVAC systems in vehicles like the Ford Crown Victoria, Mercury Marauder, and Lincoln Town Car, ensuring proper blower motor resistor harness function across multiple platforms.

Common Issues Addressed by This Harness

• Intermittent or non-functioning blower motor speeds
• Electrical connection failures in the HVAC blower motor resistor circuit
• Blower motor resistor overheating due to poor wiring connections
• HVAC blower motor not responding to speed control settings
• Faulty or damaged resistor harness causing HVAC system malfunctions

Installation Notes and Tips

When installing the Standard Ignition S-1779 harness, ensure the female connector is securely attached to the blower motor resistor assembly. Verify that all five blade terminals are properly seated and free of corrosion or damage. It is recommended to disconnect the vehicle battery before installation to prevent electrical shorts. Proper routing of the five wires will help avoid pinching or abrasion, which can lead to premature failure.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing dependable performance and durability. The S-1779 blower motor resistor harness undergoes rigorous quality control to ensure fit, form, and function. This part is backed by Standard Ignition's limited warranty, covering defects in material and workmanship under normal use.
