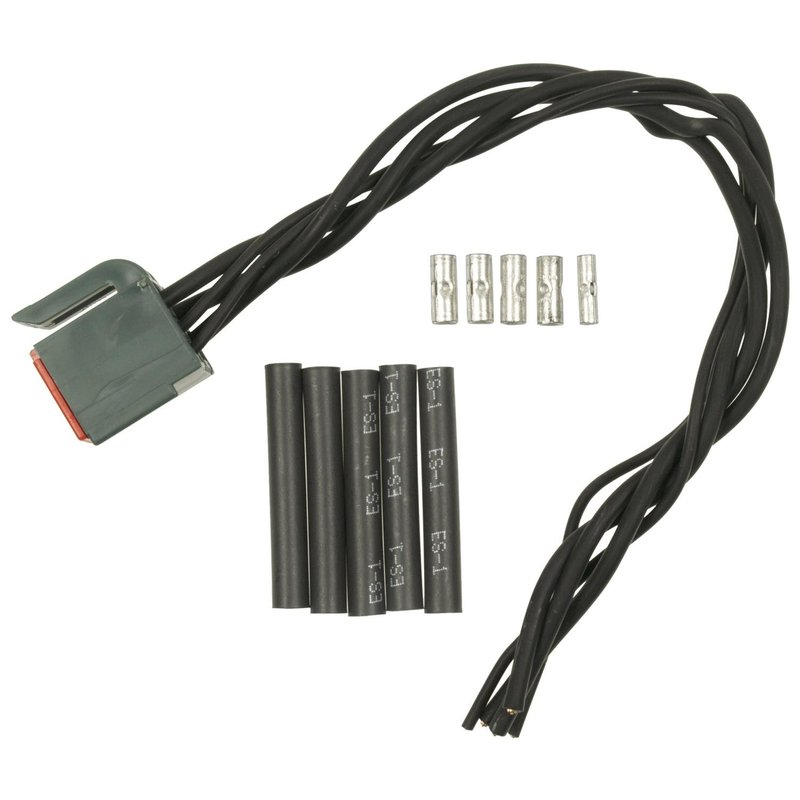

Standard Ignition S-1788 Throttle Control Relay Connector

Overview of Standard Ignition Throttle Control Relay Connector S-1788

The Standard Ignition Throttle Control Relay Connector S-1788 is designed for reliable electrical connections in throttle control systems. This male connector features a rectangular shape and is compatible with various Ford, Lexus, Lincoln, and Mercury models, ensuring precise fitment and performance.

• Connector Gender: Male
• Connector Quantity: 1
• Rectangular connector shape for secure fit
• Includes butt splices for wire connections
• Female blade terminals, quantity of 5
• Supports 5 wires for comprehensive connectivity

Detailed Product Description

The Standard Ignition part number S-1788 is a throttle control relay connector engineered to maintain consistent electrical contact within the throttle control system. Its rectangular male connector design allows for easy integration with compatible vehicle wiring harnesses. The connector includes five female blade terminals, which accommodate five wires, providing a stable and secure connection. Butt splices are included to facilitate proper wire splicing and ensure durability in electrical connections. This connector is suitable for use in a range of Ford, Lexus, Lincoln, and Mercury vehicles, including models such as the Ford Mustang, Explorer, Bronco, and Lincoln Continental.

Applications and Problem Solving

• Restores faulty or damaged throttle control relay connections
• Eliminates intermittent electrical issues in throttle control circuits
• Replaces worn or corroded connectors to improve throttle response
• Ensures secure electrical contact in throttle control relay systems
• Supports maintenance and repair of throttle control wiring harnesses

Installation Notes and Tips

When installing the Standard Ignition S-1788 throttle control relay connector, ensure that the connector is properly aligned with the mating harness to avoid damage to terminals. Use appropriate crimping tools for the included butt splices to guarantee a secure and reliable wire connection. Verify that all five wires are correctly connected to maintain full functionality of the throttle control system. It is recommended to inspect the wiring harness for any signs of wear or damage before installation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing dependable performance and durability. The S-1788 throttle control relay connector undergoes rigorous quality control to ensure consistent electrical conductivity and fitment accuracy. While specific warranty details are not provided, Standard Ignition products typically come with a limited warranty against defects in material and workmanship.
