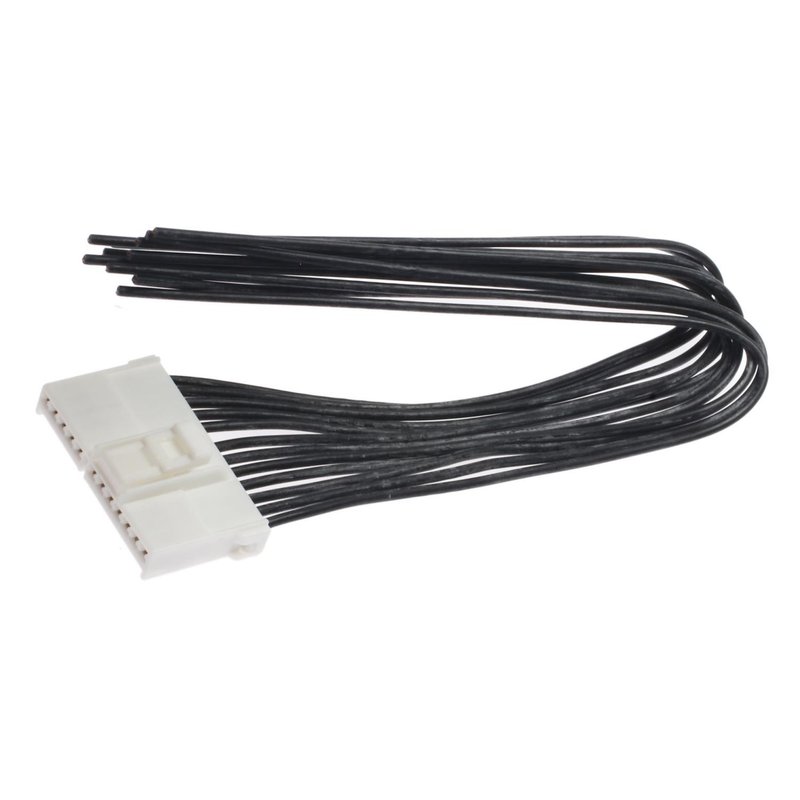

Standard Ignition S-1847 Instrument Panel Connector

Instrument Panel Connector for Ford Electrical Repair

Standard Ignition S-1847 is a direct replacement instrument panel connector built for electrical repair work where the original connector body is damaged. It uses a 12-terminal blade design with male connector and terminal genders, making it a practical choice for restoring a secure connection without replacing the full harness.

Key Features

• Instrument panel connector, part number S-1847
• Male connector with 1 connector and 12 male blade terminals
• 12-wire layout for multi-circuit electrical repair
• Housing made from polyamide resins for durability
• Terminals use copper alloy, brass, and phosphor bronze materials
• 100% tested for mechanical fit, electrical fit, form, and function

Product Details

This Standard Ignition S-1847 connector is made for technicians replacing a damaged electrical connector at the instrument panel or related body electrical location. The terminal construction uses high-grade conductive metals to support reliable contact, while the polyamide housing helps maintain connector integrity in demanding automotive environments. It is a direct replacement solution for Ford truck and van electrical repairs, including applications on Ford F-150, Ford E-Series vans, and other listed models.

This part cross-references National 1126 for the same application.

Common Repair Uses

• Broken or heat-damaged connector housing
• Loose or intermittent terminal contact
• Corroded or worn blade terminals
• Failed electrical connection at the instrument panel circuit
• Connector replacement during Ford F-150, E-150, or E-250 electrical service

Fitment

• Fits 2003-2010 Ford E-150, N/A
• Fits 2003-2010 Ford E-250, N/A
• Fits 2005-2010 Ford E-350 Super Duty, N/A
• Fits 2005 Ford E-150 Club Wagon, N/A
• Fits 2003-2005 Ford E-350 Club Wagon, N/A
• Fits 1997-2004 Ford F-150, N/A
• Fits 2004 Ford F-150 Heritage, N/A
• Fits 1999-2004 Ford F-250 Super Duty, N/A, Rear window defogger module connector, 12 terminal, white female.
• Fits 1999-2004 Ford F-350 Super Duty, N/A, Rear window defogger module connector, 12 terminal, white female.
• Fits 1998-2002 Ford E-150 Econoline, N/A, Rear window defogger module connector, 12 terminal, white female.
• Fits 1997-2002 Ford E-150 Econoline Club Wagon, N/A
• Fits 1998-2002 Ford E-250 Econoline, N/A, Rear window defogger module connector, 12 terminal, white female.
• Fits 1997-2002 Ford E-350 Econoline Club Wagon, N/A
• Fits 2000-2001 Ford Excursion, N/A, Rear window defogger module connector, 12 terminal, white female.
• Fits 1997-2000 Ford E-350 Econoline, N/A
• Fits 1997-1999 Ford F-250, N/A
• Fits 1997 Ford E-150 Econoline, N/A
• Fits 1997 Ford E-250 Econoline, N/A
• Fits 1997 Ford Expedition, N/A, Rear window defogger module connector, 12 terminal, white female.
• Fits 1997 Ford F-350, N/A

Installation Notes

Verify terminal count, connector gender, and wire layout before installation. Match the existing Ford connector by cavity count and terminal style, and confirm the application notes for rear window defogger module use where listed. Proper terminal seating and secure locking are important for stable electrical contact.

Quality Assurance

Standard Ignition tests these electrical connectors for mechanical and electrical fit, form, and function. The S-1847 is built as a direct replacement connector using durable terminal and housing materials for consistent service in Ford electrical repair applications.
