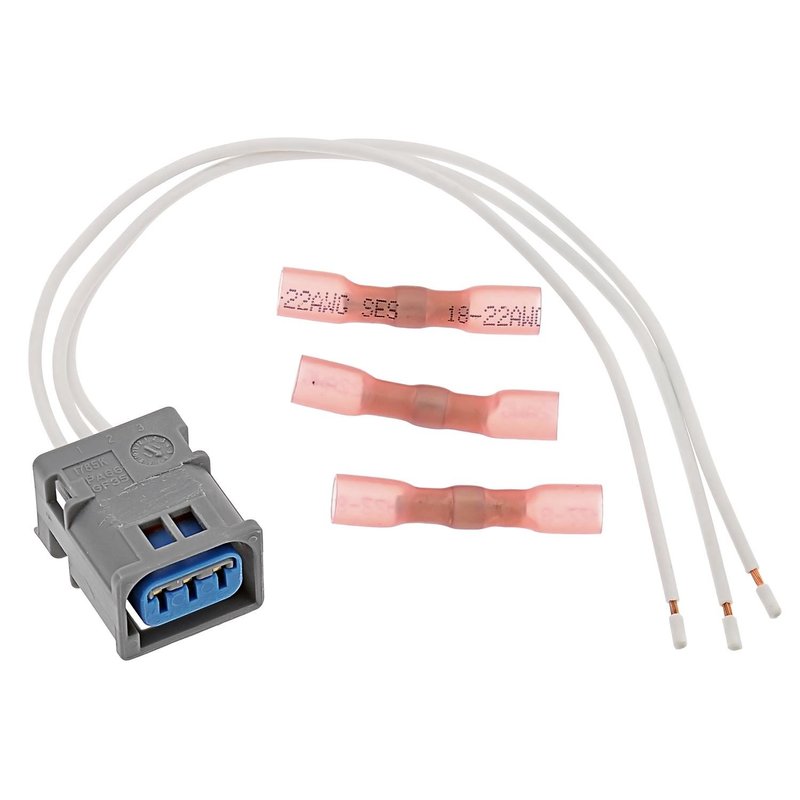

Standard Ignition S-2049 Diesel Particulate Filter (DPF) Pressure Sensor Connector

Overview of Standard Ignition Diesel Particulate Filter Pressure Sensor Connector

The Standard Ignition S-2049 Diesel Particulate Filter (DPF) Pressure Sensor Connector is designed for reliable electrical connections in emission control systems. This male connector with blade terminals is compatible with various Ford, Jaguar, Land Rover, Lincoln, Mazda, and Mercury models, ensuring precise fitment and performance.

• Connector Gender: Male
• Connector Quantity: 1
• Terminal Gender: Female
• Terminal Quantity: 3
• Terminal Type: Blade terminals
• Wire Quantity: 3

Product Details and Specifications

The S-2049 connector features a durable male housing designed to interface with female terminals, providing a secure and stable connection for the Diesel Particulate Filter pressure sensor. It includes three female blade terminals and supports three wires, which is essential for accurate sensor signal transmission. The blade terminal design facilitates easy installation and reliable electrical contact, reducing the risk of connection failure in harsh automotive environments.

Compatible Vehicles and Applications

This Diesel Particulate Filter Pressure Sensor Connector is compatible with a wide range of vehicles, including Ford models such as F-150, Explorer, and Transit series; Jaguar XE, XF, and XJ; Land Rover Discovery and Range Rover Sport; Lincoln MKC, MKX, and MKZ; Mazda Milan and Tribute; and Mercury Cougar and Grand Marquis. The S-2049 part number ensures proper fitment for emission control systems requiring a three-wire sensor connection.

Common Issues Addressed by This Connector

• Intermittent or faulty DPF pressure sensor readings
• Corroded or damaged electrical connections in emission control circuits
• Sensor communication errors causing engine warning lights
• Loose or broken wiring connections affecting sensor performance
• Replacement of worn or aged connectors to maintain emission compliance

Installation Notes and Tips

When installing the Standard Ignition S-2049 connector, ensure the mating surfaces are clean and free of debris. Verify that the blade terminals are properly seated and that the wiring harness is routed to avoid excessive heat or mechanical stress. Use appropriate tools to secure the connector and avoid over-tightening, which can damage terminals. Confirm sensor operation after installation by checking for stable pressure readings and absence of diagnostic trouble codes.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing dependable performance in emission control applications. The S-2049 connector undergoes rigorous quality control to ensure durability and electrical integrity. While specific warranty terms may vary, Standard Ignition typically offers coverage against defects in materials and workmanship to support long-term reliability.
