Standard Ignition S-2224 Tail Light Circuit Board Connector

Tail Light Circuit Board Connector for Ford and Jeep

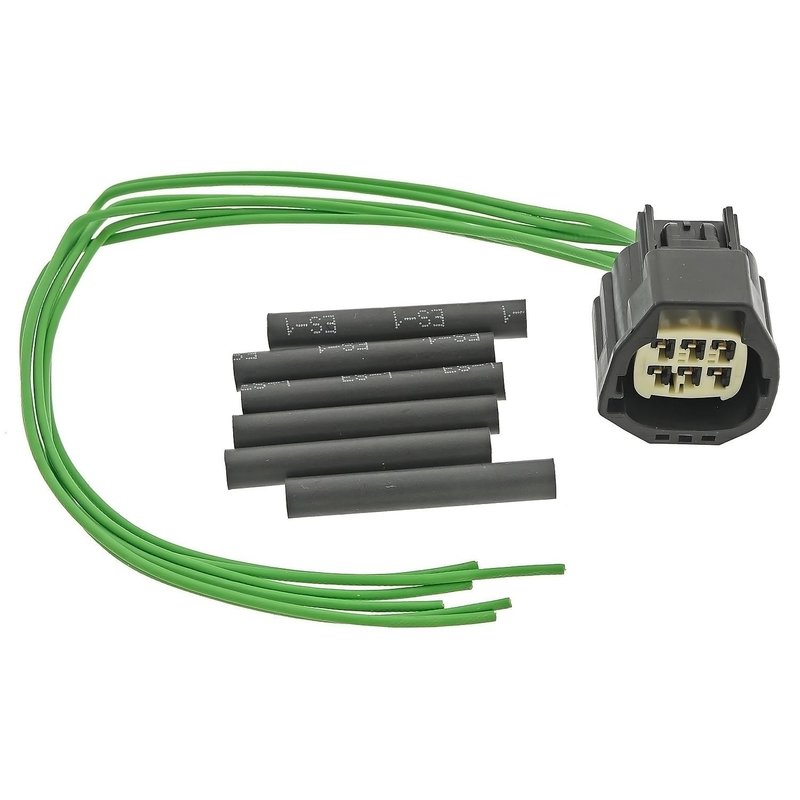

Standard Ignition S-2224 is a direct replacement tail light circuit board connector for select Ford and Jeep applications. It is built to replace a damaged connector without replacing the full harness, helping restore a secure electrical connection at the rear lighting circuit.

Compatible with 1999-2004 Ford F-150, 1999-2004 Ford F-250 Super Duty, 1999-2004 Ford F-350 Super Duty, 2001-2004 Ford Excursion, 2004 Ford F-150 Heritage, 2005-2010 Ford F-250 Super Duty, 2005-2010 Ford F-350 Super Duty, and 2008-2011 Jeep Liberty.

• Female connector and female terminal design
• 6-terminal, 6-wire configuration
• High-grade terminal materials including copper alloy, brass, and phosphor bronze
• Polyamide resin housing for durability and fit
• 100% tested for mechanical and electrical fit, form, and function

Detailed Product Overview

This Standard Ignition S-2224 tail light circuit board connector is made for rear lighting repairs where the original connector has heat damage, corrosion, broken locking tabs, or worn terminals. It supports a clean electrical connection at the tail lamp circuit board and is a practical repair choice for Ford F-150, Ford Super Duty, Ford Excursion, and Jeep Liberty applications. This part cross-references Autolite 1116 for the same application.

Common Repair Uses

• Restores intermittent or failed tail light operation
• Addresses melted, cracked, or corroded connector housings
• Fixes loose terminal contact at the circuit board
• Helps resolve rear lamp electrical faults caused by damaged wiring ends
• Supports repair of a broken connector without replacing the entire harness

Installation Notes and Tips

Verify connector gender, terminal count, and wire count before installation. Match the existing tail light circuit board connector on the vehicle and inspect the mating terminals for heat damage or corrosion before reconnecting. Confirm proper electrical function after installation on the affected rear lamp circuit.

Quality Assurance

Standard Ignition manufactures this connector as a direct replacement part and tests each connector for proper mechanical and electrical fit, form, and function. The terminal and housing materials are selected for long service life and consistent performance in automotive electrical repair.
