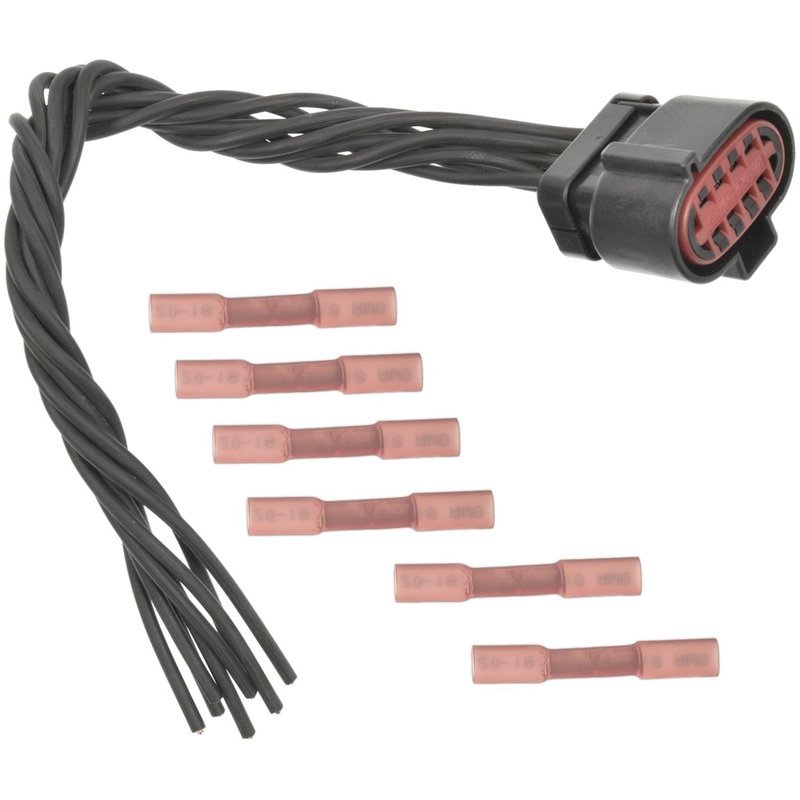

Standard Ignition S-2225 Transmission Range Sensor Connector

Reliable Transmission Range Sensor Connector for Ford and Lincoln Vehicles

The Standard Ignition S-2225 Transmission Range Sensor Connector is designed to provide a secure and precise electrical connection for your vehicle's transmission system. Compatible with a range of Ford, Lincoln, and Mercury models, this female oval connector ensures reliable performance and durability.

• Female connector gender with an oval shape for exact fitment
• Includes 8 female blade terminals for stable electrical contact
• Supports 8 wires to maintain proper signal transmission
• Compatible with Ford Bronco, F-150, Explorer, Mustang, and more
• Part number S-2225 for easy identification and replacement

Detailed Product Features and Specifications

This transmission range sensor connector features a female connector and terminal gender, both designed to match the original equipment specifications. The oval shape of the connector ensures a secure fit, preventing disconnections or signal loss. With 8 blade-type terminals and wire connections, it supports the complex wiring needs of modern transmission systems. The connector is engineered to maintain consistent electrical conductivity, which is critical for accurate transmission range sensing and vehicle operation.

Compatible Vehicles and Applications

The Standard Ignition S-2225 connector is compatible with multiple Ford, Lincoln, and Mercury models, including the Bronco, Continental, Crown Victoria, Explorer, F-150, F-250, F-350, Grand Marquis, Mark VIII, Mustang, Ranger, Sable, Taurus, and Town Car. This makes it a suitable replacement part for transmission range sensor connectors in these vehicles, ensuring proper communication between the transmission and the vehicle’s control systems.

• Resolves transmission range sensor connection failures
• Addresses intermittent shifting or gear recognition issues
• Prevents electrical shorts or open circuits in transmission wiring
• Eliminates transmission warning lights related to sensor faults
• Restores accurate gear position signals to the vehicle’s computer

Installation Notes and Tips

When installing the S-2225 transmission range sensor connector, ensure the connector is fully seated and locked to prevent disconnection. Verify that all 8 wires are correctly aligned with their corresponding terminals to maintain proper signal flow. Inspect the wiring harness for any damage before installation to avoid future electrical issues. Use appropriate tools to avoid damaging the blade terminals during connection or disconnection.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The S-2225 transmission range sensor connector undergoes rigorous quality control to ensure consistent electrical connectivity and fitment. Please refer to Standard Ignition’s warranty policy for specific coverage details.
