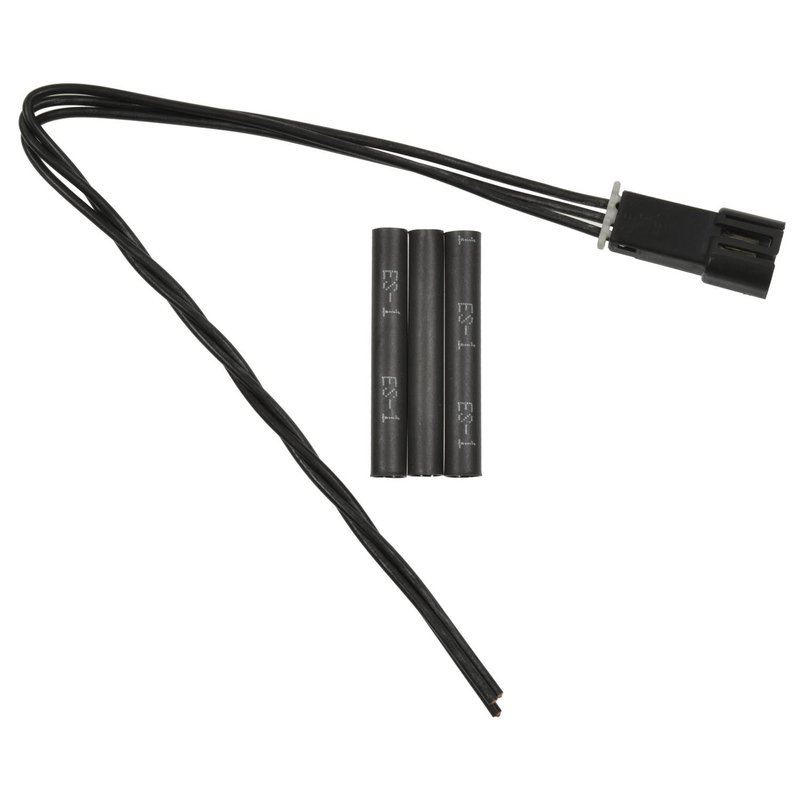

Standard Ignition S-2230 Air Bag Clockspring Connector

Reliable Air Bag Clockspring Connector for Ford, Lincoln, and Mercury Vehicles

The Standard Ignition S-2230 Air Bag Clockspring Connector is designed to ensure secure electrical connections in your vehicle's airbag system. Engineered with a female connector and male terminals, this component supports three terminals and wires, providing reliable performance for various Ford, Lincoln, and Mercury models.

• Connector Gender: Female for secure mating
• Terminal Gender: Male terminals for optimal contact
• Terminal Quantity: 3 terminals to support multiple circuits
• Wire Quantity: 3 wires for consistent signal transmission
• Compatible with multiple Ford, Lincoln, and Mercury models

Technical Details and Compatibility

The S-2230 clockspring connector from Standard Ignition is specifically designed to maintain the integrity of the airbag electrical system by providing a stable connection between the clockspring and the vehicle wiring harness. With three male terminals housed in a female connector, this part ensures proper alignment and electrical continuity. It is compatible with a wide range of Ford, Lincoln, and Mercury vehicles including the Ford F-150, E-350 Econoline, Mustang, Lincoln Navigator, and Mercury Sable among others. The part number S-2230 is essential for identifying this exact connector when servicing or replacing components in these models.

Common Applications and Problem Resolution

• Restores faulty or damaged air bag clockspring connections
• Eliminates intermittent airbag warning lights caused by poor contacts
• Replaces worn or corroded connectors in the airbag circuit
• Ensures proper deployment signals for driver and passenger airbags
• Supports safe and reliable airbag system operation in Ford, Lincoln, and Mercury vehicles

Installation Notes and Tips

When installing the Standard Ignition S-2230 connector, ensure the vehicle battery is disconnected to prevent accidental airbag deployment. Verify the connector orientation matches the original part, noting the female connector housing and male terminal configuration. Handle the terminals carefully to avoid bending or damage. Confirm all three wires are properly seated and secured to maintain electrical continuity. After installation, perform a diagnostic check to confirm the airbag system is functioning correctly.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The S-2230 Air Bag Clockspring Connector undergoes rigorous quality control to maintain consistent electrical connectivity and fitment. While specific warranty details are not provided here, Standard Ignition typically offers coverage against manufacturing defects. Refer to the product packaging or manufacturer documentation for exact warranty terms.
