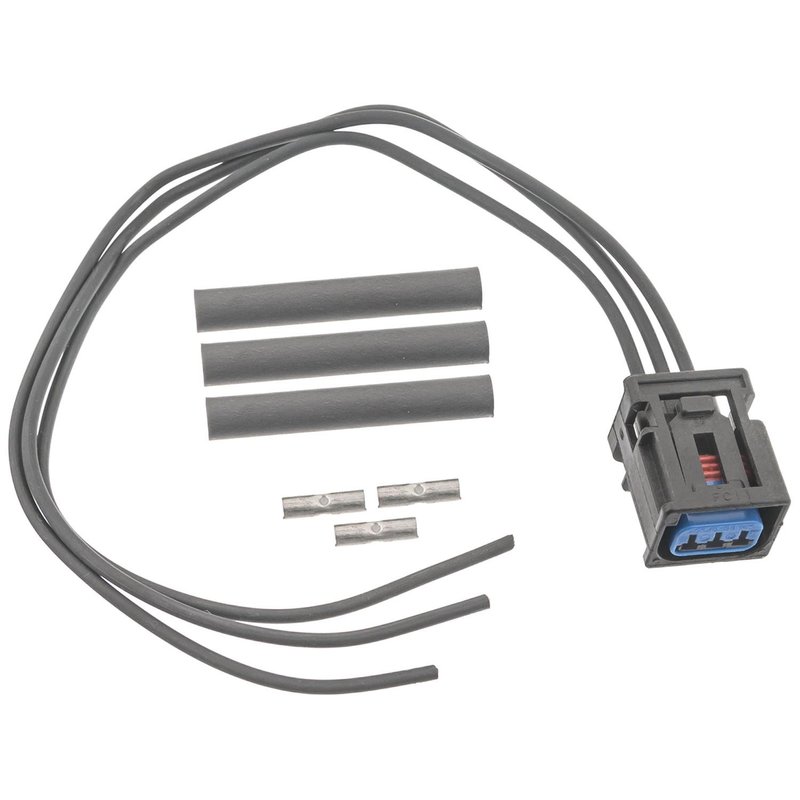

Standard Ignition S-2234 Engine Intake Manifold Runner Solenoid Connector

Engine Intake Manifold Runner Solenoid Connector

Standard Ignition S-2234 is a direct replacement engine intake manifold runner solenoid connector for repairing damaged wiring connections without replacing the full harness. It uses a rectangular male housing with 3 female blade terminals and 3-wire construction for a clean electrical repair on supported Ford, Lincoln, and Mazda applications.

Key Features

• Direct replacement electrical connector for intake manifold runner solenoid circuits
• Rectangular connector body with male housing and 3 female blade terminals
• Built with copper alloy, brass, and phosphor bronze terminals
• Polyamide resin housing for durability and stable fit
• 100% tested for mechanical and electrical fit, form, and function
• Standard Ignition S-2234 for service on select Ford, Lincoln, and Mazda vehicles

Detailed Description

Standard Ignition S-2234 is built for technicians and do-it-yourself repairs where the original connector is heat damaged, broken, or no longer making a reliable connection. This engine intake manifold runner solenoid connector is a direct replacement for applications including Ford Expedition, Ford Ranger, Lincoln Navigator, Mazda 3, and Mazda 6, along with additional Ford, Lincoln, and Mazda models listed in the fitment data. The connector is engineered with high-grade terminal metals and a polyamide housing to support long-term electrical performance in underhood conditions. This part cross-references EC2136 and PT2222 for the same application.

Common Repair Uses

• Broken locking tab or damaged connector shell
• Intermittent intake manifold runner solenoid signal
• Corrosion or heat damage at the original plug
• Loose terminal contact causing drivability faults
• Harness-side connector failure on Ford, Lincoln, or Mazda intake runner circuits

Installation Notes and Tips

Verify connector shape, terminal count, and wire count before installation. Match the existing harness side to the male connector body and 3 female blade terminals on this part. Inspect the mating solenoid terminals for corrosion or heat damage before completing the repair. Confirm vehicle-specific fitment for your exact year, make, and model, including Ford E-350 Super Duty, Ford Focus, Lincoln MKZ, and Mazda CX-7 applications listed in the catalog data.

Quality Assurance

Standard Ignition manufactures this connector as a direct replacement service part and tests each connector for proper mechanical and electrical fit, form, and function. The terminal materials and polyamide housing are selected to support consistent performance in engine bay service.
