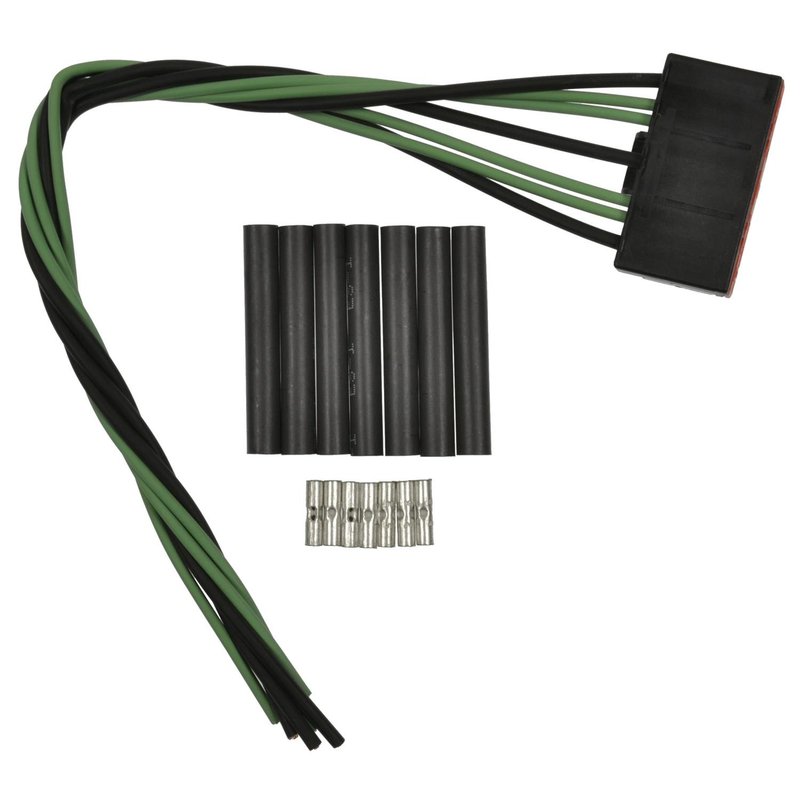

Standard Ignition S-2277 Ignition Switch Connector

Ignition Switch Connector for Ford and Lincoln

Standard Ignition S-2277 is a direct replacement ignition switch connector for a wide range of Ford, Lincoln, Mercury, Jaguar, Mazda, and Land Rover applications. It is built for electrical repair work where the original connector housing or terminals are damaged, allowing service of the connector instead of replacing the full harness.

Key Features

• Male connector with female terminals
• 7-terminal, 7-wire ignition switch connector design
• Direct replacement for ignition switch electrical repair
• Terminal materials include copper alloy, brass, and phosphor bronze
• Polyamide resin housing for durability and fit
• 100% tested for mechanical and electrical fit, form, and function

Detailed Description

Standard Ignition S-2277 is an ignition switch connector engineered for repair jobs on vehicles such as the Ford Edge, Ford Escape, Ford Explorer, Ford F-150, Ford Fusion, Ford Taurus, Lincoln Navigator, and related applications. The connector is made with high-grade terminal materials and a polyamide housing to support reliable electrical contact and long service life. This part cross-references Timken 1773 for the same application.

Use this connector when the original ignition switch plug shows heat damage, broken locking tabs, corrosion, loose terminals, or intermittent electrical contact. Standard Ignition S-2277 helps restore a secure connection at the ignition switch without replacing the entire harness assembly.

What It Is Used For

• Repairing a damaged ignition switch connector on Ford and Lincoln vehicles
• Restoring electrical continuity after terminal wear or corrosion
• Replacing cracked or heat-damaged connector housings
• Correcting intermittent ignition switch connection issues
• Servicing harness-side connector damage on compatible applications

Installation Notes and Tips

Verify connector shape, terminal count, and wire layout before installation. Match the original connector to the vehicle harness and inspect the ignition switch terminals for heat, oxidation, or looseness before connecting the new part. For best results, transfer wiring carefully and confirm a solid mechanical lock after installation. Fits 2007-2019 Ford Edge, N/A; Fits 2015-2019 Ford Escape, N/A; Fits 2001-2012 Ford Escape, N/A; Fits 2015-2019 Ford Expedition, N/A; Fits 2003-2006 Ford Expedition, N/A; Fits 2002-2019 Ford Explorer, N/A; Fits 2011-2019 Ford F-150, N/A; Fits 2004-2008 Ford F-150, N/A; Fits 2011-2019 Ford F-250 Super Duty, N/A; Fits 2011-2019 Ford F-350 Super Duty, N/A; Fits 2010-2019 Ford Fiesta, N/A; Fits 2009-2019 Ford Flex, N/A; Fits 2006-2019 Ford Fusion, N/A; Fits 2008-2019 Ford Taurus, N/A; Fits 2010-2019 Ford Transit Connect, N/A; Fits 2015-2019 Ford Transit-150, N/A; Fits 2015-2019 Ford Transit-250, N/A; Fits 2015-2019 Ford Transit-350, N/A; Fits 2015-2019 Ford Transit-350 HD, N/A; Fits 2014-2019 Lincoln Navigator, N/A; Fits 2003-2006 Lincoln Navigator, N/A; Fits 2013-2018 Ford C-Max, N/A; Fits 2018 Ford EcoSport, N/A; Fits 2000-2018 Ford Focus, N/A; Fits 2007-2018 Lincoln MKX, N/A; Fits 2016 Ford Transit, N/A; Fits 2009-2012 Ford Transit, N/A; Fits 2013-2014 Ford Escape, N/A, w/o Keyless Ignition; Fits 2005-2014 Ford Mustang, N/A; Fits 2009-2012 Lincoln MKS, N/A; Fits 2007-2012 Lincoln MKZ, N/A; Fits 2011 Ford F-350, N/A; Fits 2008-2011 Mazda Tribute, N/A; Fits 2001-2006 Mazda Tribute, N/A; Fits 2005-2011 Mercury Mariner, N/A; Fits 2006-2011 Mercury Milan, N/A; Fits 2008-2010 Ford Explorer Sport Trac, N/A; Fits 2004 Ford Explorer Sport Trac, N/A; Fits 2002-2010 Mercury Mountaineer, N/A; Fits 2008-2009 Ford Taurus X, N/A; Fits 2005-2009 Jaguar Super V8, N/A; Fits 2005-2009 Jaguar Vanden Plas, N/A; Fits 2003-2009 Jaguar XJ8, N/A; Fits 2003-2009 Jaguar XJR, N/A; Fits 2005-2009 Land Rover LR3, N/A; Fits 2006-2009 Land Rover Range Rover Sport, N/A; Fits 2008-2009 Mercury Sable, N/A; Fits 2003-2008 Jaguar S-Type, N/A; Fits 2002-2008 Jaguar X-Type, N/A; Fits 2006-2008 Lincoln Mark LT, N/A; Fits 2005-2007 Ford Five Hundred, N/A; Fits 2005-2007 Ford Freestyle, N/A; Fits 2005-2007 Mercury Montego, N/A; Fits 2006 Lincoln Zephyr, N/A; Fits 2003-2005 Lincoln Aviator, N/A; Fits 2004 Ford F-150 Heritage, N/A; Fits 2003-2004 Jaguar Vanden Plas, N/A, w/o Harness; Fits 2002 Lincoln Navigator, N/A, From 3/18/02

Quality Assurance

Standard Ignition states that its electrical connectors are 100% tested for proper mechanical and electrical fit, form, and function. The connector uses copper alloy, brass, and phosphor bronze terminals with a polyamide resin housing for consistent performance in ignition switch repair work.
