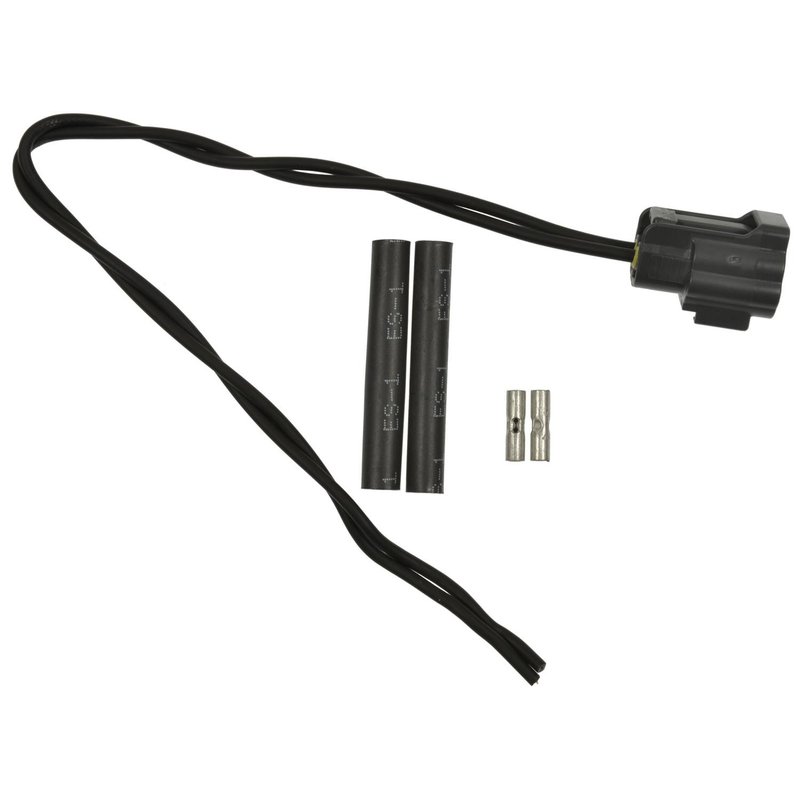

Standard Ignition S-2334 EGR Valve Connector - Front

OE-Style EGR Valve Connector Replacement

Standard Ignition S-2334 is a direct replacement exhaust gas recirculation valve connector for repairing damaged wiring connections without replacing the full harness. It uses a female connector design with female blade terminals and a 2-wire layout for a clean electrical repair on a wide range of Mazda, Ford, and related applications.

Built with copper alloy, brass, and phosphor bronze terminals plus a polyamide resin housing, this connector is made for stable electrical contact and long service life. Standard Ignition S-2334 is 100% tested for mechanical and electrical fit, form, and function.

Key Features

• Part number S-2334 exhaust gas recirculation valve connector
• Female connector and female terminal design
• 2 blade terminals with 2-wire configuration
• Direct replacement for damaged EGR connector repairs
• Terminal materials include copper alloy, brass, and phosphor bronze
• Polyamide resin housing for durability
• 100% tested for fit, form, and function

Detailed Product Overview

This Standard Ignition S-2334 connector is used where the original EGR valve plug has heat damage, broken locking tabs, corrosion, or terminal wear. It is a practical repair solution for vehicles such as Mazda 3, Mazda 6, Mazda CX-5, Ford Fusion, Ford Escape, and Mazda RX-8 applications that use the listed connector style. This part cross-references PT2322 and EC2237 for the same application.

For buyers searching for a Mazda 3 EGR valve connector replacement, Ford Fusion EGR connector, or Mazda CX-5 electrical connector repair, S-2334 provides an OE-style service part that restores the connection at the valve instead of replacing the entire harness.

Common Repair Uses

• Broken or melted EGR valve connector housing
• Corroded or loose electrical terminals
• Intermittent EGR circuit connection faults
• Damaged pigtail or connector body at the valve
• Failed electrical contact at the exhaust gas recirculation valve

Installation Notes

Verify connector shape, terminal style, and wire count against the original part before installation. Match the vehicle application carefully, especially on models with emissions-specific notes such as California or Federal emissions differences. Proper terminal crimping and sealing practices help maintain a reliable repair on EGR valve wiring.

Quality Assurance

Standard Ignition manufactures this connector with high-grade terminal metals and a polyamide housing, then tests it for mechanical and electrical performance. The result is a direct replacement connector built for dependable service on supported Mazda, Ford, Mercury, Suzuki, Chevrolet, Pontiac, Geo, Jaguar, and Scion/Toyota applications.
