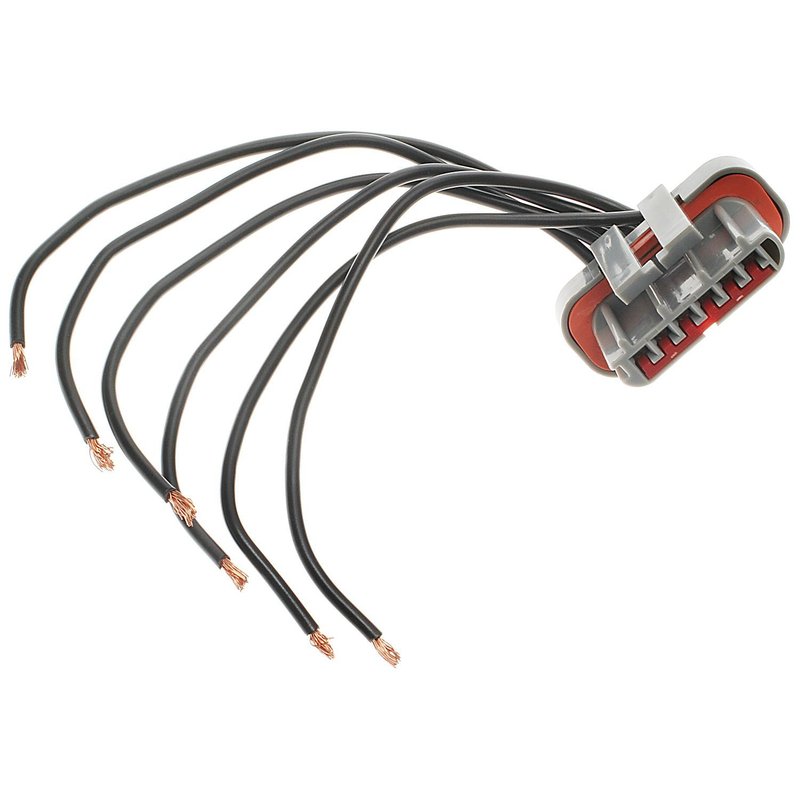

Standard Ignition S-544 Engine Control Module Harness Connector

Overview of Standard Ignition ECM Harness Connector S-544

The Standard Ignition Engine Control Module (ECM) Harness Connector S-544 is designed for reliable electrical connections in various Ford, Lincoln, Mazda, Mercury, and Volkswagen vehicles. This male connector with a 6 1/2 inch harness length ensures secure and efficient communication between the ECM and vehicle wiring.

• Connector Gender: Male
• Connector Quantity: 1
• Harness Length: 6 1/2 inches
• Terminal Gender: Female
• Terminal Quantity: 6
• Terminal Type: Pin socket
• Wire Quantity: 6

Detailed Product Description

The Standard Ignition S-544 ECM Harness Connector features a durable male connector housing with six female pin socket terminals, providing a secure and precise fit for engine control module wiring. The 6 1/2 inch harness length offers flexibility for installation in tight engine compartments. With six wires and terminals, this connector supports multiple signal and power lines necessary for proper ECM function. The pin socket terminal type ensures reliable electrical contact and resistance to vibration and corrosion, critical for maintaining engine performance and diagnostics.

Compatible Vehicles and Applications

This ECM harness connector is compatible with a wide range of vehicles, including Ford models such as the F-150, Explorer, Mustang, and Econoline series, Lincoln Continental and Town Car, Mazda MX-6 and B-series trucks, Mercury Cougar and Grand Marquis, as well as Volkswagen Beetle and Jetta. The part number S-544 is specifically designed to meet the electrical connection requirements of these models, ensuring proper fit and function.

Common Issues Addressed by the ECM Harness Connector

• Intermittent or failed ECM communication due to damaged connectors
• Corroded or worn terminals causing poor electrical contact
• Broken or frayed wiring within the ECM harness
• Engine performance issues related to faulty ECM connections
• Diagnostic trouble codes triggered by connector faults

Installation Notes and Tips

• Ensure the vehicle battery is disconnected before installation to prevent electrical shorts
• Verify the connector orientation and terminal alignment before securing
• Inspect wiring for damage or corrosion prior to installation
• Use dielectric grease on terminals to improve conductivity and prevent corrosion
• Confirm secure locking of the connector to avoid vibration-related disconnections

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The S-544 ECM Harness Connector undergoes rigorous quality control to ensure durability and reliable electrical performance. This part is backed by Standard Ignition's limited warranty, covering defects in material and workmanship under normal use conditions.
