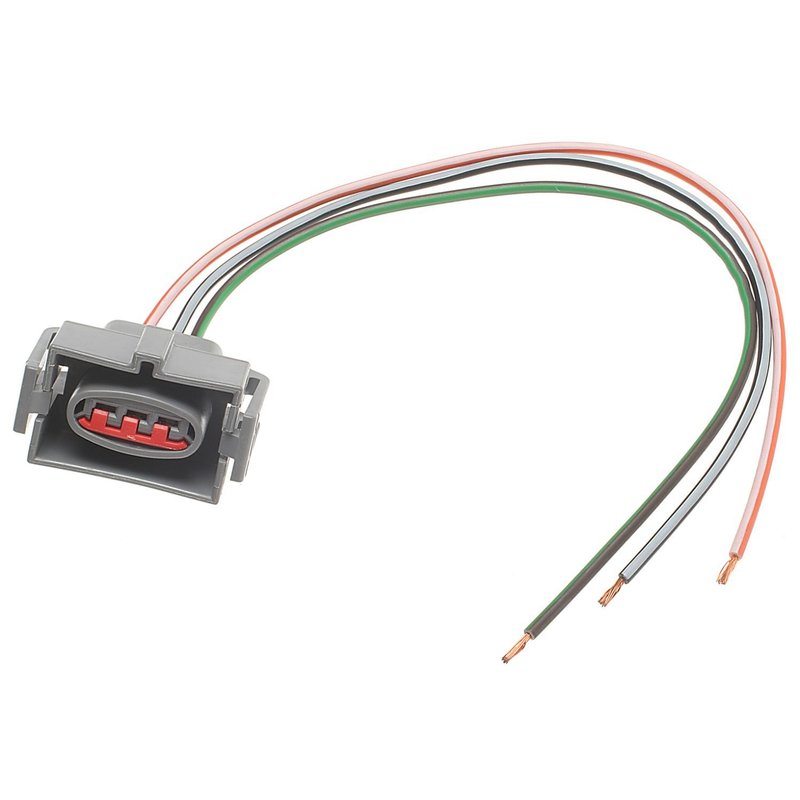

Standard Ignition S-565 EGR Pressure Feedback Sensor Connector

Overview of Standard Ignition EGR Pressure Feedback Sensor Connector

The Standard Ignition S-565 Exhaust Gas Recirculation (EGR) Pressure Feedback Sensor Connector is designed for reliable electrical connections in select Ford, Lincoln, Mazda, and Mercury vehicles. This male connector with a pigtail assembly ensures proper sensor communication and system performance.

• Connector Gender: Male
• Connector Quantity: 1
• Contents: Pigtail assembly
• Terminal Gender: Female
• Terminal Quantity: 3
• Terminal Type: Blade
• Wire Quantity: 3

Product Details and Specifications

The S-565 connector by Standard Ignition is engineered to provide a secure and durable connection for the Exhaust Gas Recirculation (EGR) Pressure Feedback Sensor. Featuring a male connector with three female blade terminals, this pigtail assembly supports three wires, ensuring accurate sensor signal transmission. The blade terminal type is commonly used for its ease of installation and reliable contact, making it suitable for the demanding environment of automotive electrical systems.

This connector is compatible with a range of vehicles including Ford models such as the F-150, Explorer, and Ranger; Lincoln models like the Continental and Town Car; Mazda B2300 and Navajo; and Mercury models including the Cougar and Grand Marquis. The part number S-565 is essential for identifying this specific connector when servicing or replacing the EGR pressure feedback sensor wiring.

Common Applications and Issues Addressed

• Restores proper electrical connection to the EGR pressure feedback sensor
• Resolves intermittent sensor signal issues caused by damaged or corroded connectors
• Prevents engine performance problems related to faulty EGR sensor wiring
• Eliminates check engine light triggers associated with EGR sensor circuit faults
• Supports emissions control system functionality by maintaining sensor integrity

Installation Notes and Tips

• Ensure the vehicle ignition is off before installation to avoid electrical shorts
• Verify connector orientation; the male connector should mate securely with the sensor terminal
• Inspect wiring for damage or corrosion prior to installation
• Use dielectric grease on terminals to prevent moisture intrusion and corrosion
• Confirm proper fitment with vehicle make and model to avoid compatibility issues

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The S-565 connector undergoes rigorous quality control to maintain consistent electrical conductivity and mechanical strength. While specific warranty terms may vary, Standard Ignition typically offers coverage against defects in materials and workmanship, providing confidence in the product's longevity and function.
