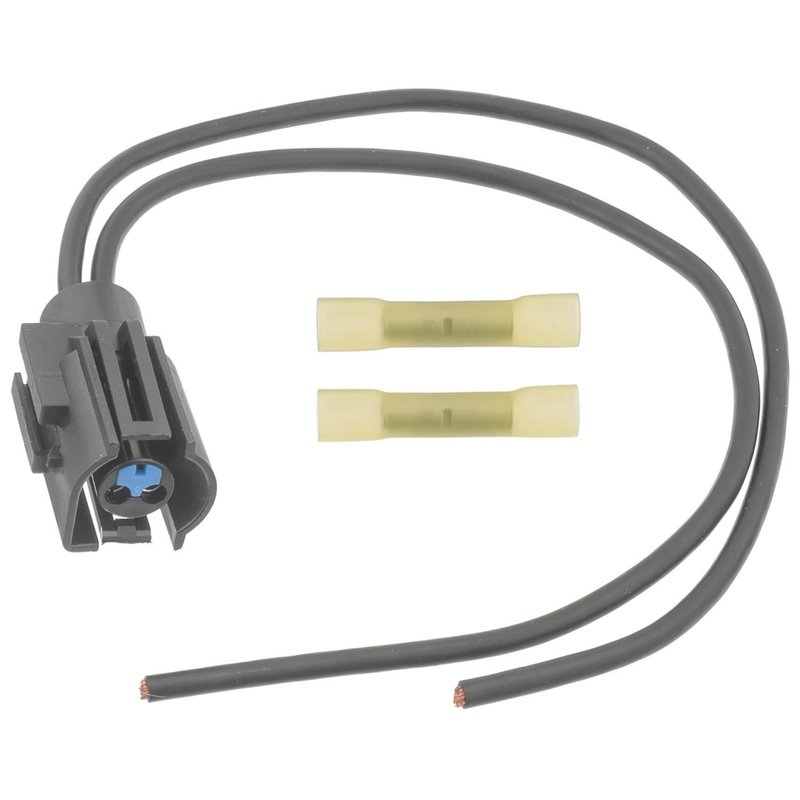

Standard Ignition S-567 Ported Vacuum Switch Connector

Reliable Ported Vacuum Switch Connector for Ford and Lincoln Vehicles

The Standard Ignition S-567 Ported Vacuum Switch Connector is designed to provide a secure and efficient electrical connection for vacuum switch systems. Engineered with precision, this female connector ensures compatibility with various Ford, Lincoln, Mazda, and Mercury models, including the Ford Mustang, Explorer, and Lincoln Continental.

• Female connector gender with a round shape for easy installation
• Includes 2 female bullet terminals for reliable electrical contact
• Supports 2-wire configurations for vacuum switch applications
• Durable construction suitable for automotive electrical systems
• Compatible with multiple Ford, Lincoln, Mazda, and Mercury models

Product Details and Specifications

The Standard Ignition S-567 features a female connector designed to mate securely with corresponding male components. Its round connector shape facilitates straightforward alignment and connection in tight engine compartments. Equipped with two female bullet terminals, this connector supports dual-wire setups commonly found in ported vacuum switch circuits. The connector’s design ensures consistent electrical conductivity and resistance to vibration, which is critical for maintaining vacuum system performance in vehicles such as the Ford F-150, Lincoln Town Car, and Mazda 626.

Compatible Vehicles and Applications

This ported vacuum switch connector is compatible with a wide range of Ford, Lincoln, Mazda, and Mercury vehicles. It is suitable for models including but not limited to the Ford Bronco II, Lincoln Mark VIII, Mazda MX-6, and Mercury Cougar. The S-567 connector is ideal for replacing worn or damaged vacuum switch connectors in these vehicles, helping to restore proper vacuum control and electrical connectivity.

• Restores proper vacuum switch electrical connections
• Replaces damaged or corroded vacuum switch connectors
• Ensures reliable operation of vacuum-controlled systems
• Prevents electrical faults related to poor terminal contact
• Supports maintenance of emission and engine control systems

Installation Notes and Tips

When installing the Standard Ignition S-567 connector, ensure that the mating terminals are clean and free of corrosion. The female bullet terminals should be securely crimped to the vehicle’s wiring harness wires to maintain a solid electrical connection. Verify that the connector is properly seated and locked in place to prevent disconnection due to engine vibration. This connector is designed for direct replacement and does not require modification to existing wiring.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring dependable performance and fitment. The S-567 Ported Vacuum Switch Connector undergoes rigorous quality control to maintain consistent electrical and mechanical standards. While specific warranty details are not provided, Standard Ignition products typically come with a limited warranty against defects in material and workmanship.
