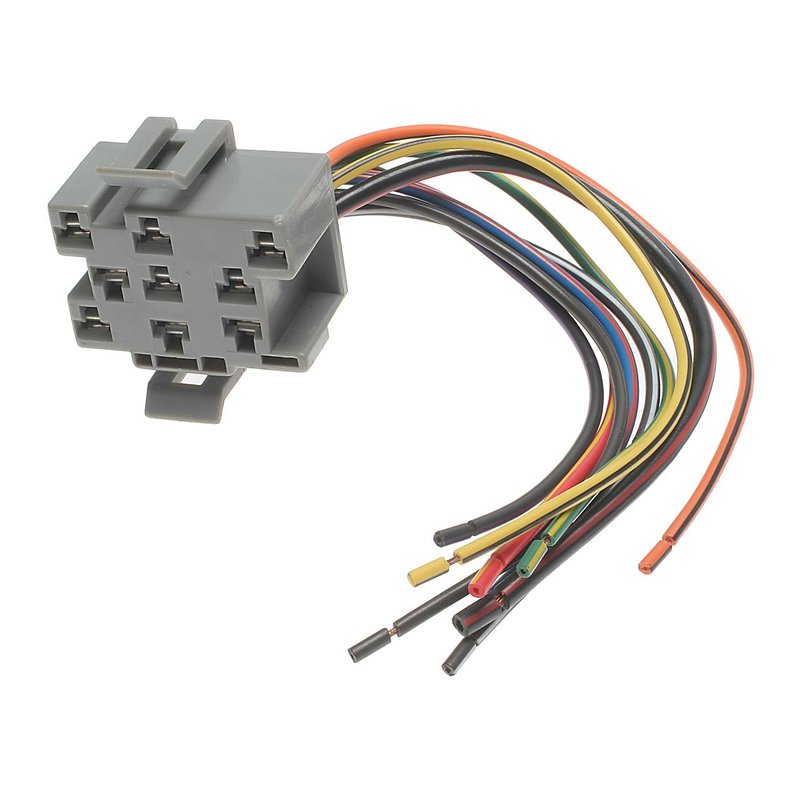

Standard Ignition S-607 Instrument Panel Dimmer Switch Connector

Instrument Panel Dimmer Switch Connector for Ford and Mazda

Standard Ignition S-607 is an instrument panel dimmer switch connector built for electrical repair work where the original connector has heat damage, broken terminals, or poor contact. It uses a male connector design with 9 blade terminals and 9 wires to restore a secure connection at the dimmer switch circuit.

Built with high-grade materials for strong conductivity and consistent terminal engagement, this connector is a practical OE-style repair part for a wide range of Ford, Mercury, Lincoln, and Mazda applications. Standard Ignition S-607 is commonly selected for instrument panel dimmer switch connector replacement on vehicles such as the Ford Mustang, Ford Ranger, and Mazda B3000.

Key Features

• Instrument panel dimmer switch connector for electrical connector repair
• Male connector and male blade terminals for a direct-style service replacement
• 9-terminal, 9-wire design for the specified circuit layout
• Constructed with materials selected for conductivity and connection integrity
• Standard Ignition S-607 for Ford, Mercury, Lincoln, and Mazda fitments
• Cross-reference example: 1P1104

Detailed Description

The Standard Ignition S-607 is designed for technicians replacing a damaged instrument panel dimmer switch connector on older Ford-family vehicles. It supports a broad range of applications, including 1977-2008 Ford and Mercury passenger cars, trucks, vans, and SUVs, plus select 1994-2003 Mazda B-Series models. This part is a direct-fit electrical connector solution for restoring the dimmer switch circuit where the original plug has failed from age, corrosion, or terminal wear.

Standard Ignition focuses on pigtails and sockets for electrical repairs, using durable materials and terminal design intended to maintain peak conductivity and a solid connection at the switch. The S-607 part number is also useful when searching for an OE-style replacement connector for Ford Mustang, Ford E-Series vans, and Mazda B3000 or B4000 instrument panel dimmer switch service.

Common Problems This Connector Can Address

• Intermittent or inoperative instrument panel dimmer switch function
• Heat-damaged, melted, or brittle connector housing
• Loose terminal fit causing poor electrical contact
• Corrosion or oxidation at the switch connector
• Broken wiring at the original dimmer switch plug

Installation Notes and Tips

• Verify connector style, terminal count, and wire layout before installation.
• Match the vehicle-specific notes in the fitment data, especially on 1995-1997 and 1999 applications with gray 9-terminal female references.
• Inspect the mating switch terminals for heat damage or spread terminals before connecting the new pigtail.
• Use proper electrical repair practices for splicing and sealing the harness.
• Some applications list special notes such as push-pull type or multiple connectors required; confirm the exact vehicle configuration before service.

Quality Assurance

Standard Ignition builds this connector with the technician’s repair needs in mind, drawing on long-term electrical component development and application-specific design. The S-607 is engineered as a service replacement for original connector failure points and is backed by Standard Ignition’s established aftermarket electrical parts expertise.
