Standard Ignition S-609 Electronic Engine Control Test Plug Connector

Overview of Standard Ignition Electronic Engine Control Test Plug Connector

The Standard Ignition S-609 Electronic Engine Control Test Plug Connector is designed for precise electrical diagnostics on select Ford, Lincoln, and Mercury vehicles. This connector facilitates reliable testing and troubleshooting of engine control systems, ensuring accurate readings and efficient maintenance.

• Connector Gender: Male
• Connector Quantity: 2
• Terminal Gender: Female
• Terminal Quantity: 6
• Terminal Type: Blade
• Wire Quantity: 6
• Includes pigtail assembly for easy integration

Detailed Product Description and Attributes

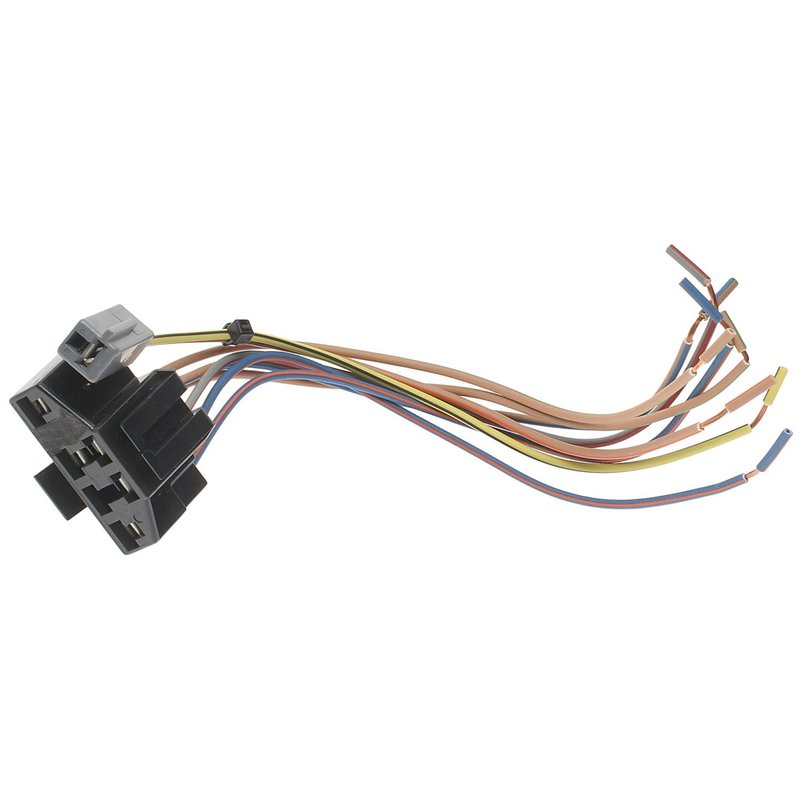

The S-609 test plug connector from Standard Ignition features two male connectors with six female blade terminals, providing a secure and stable connection for engine control diagnostics. The included pigtail assembly with six wires allows for straightforward installation and testing without the need for additional wiring modifications. This design supports accurate electronic engine control system testing on various Ford, Lincoln, and Mercury models, including the Ford Mustang, Explorer, F-150, and Lincoln Town Car.

Compatible Vehicles and Applications

This electronic engine control test plug connector is compatible with a wide range of Ford, Lincoln, and Mercury vehicles. It is suitable for models such as the Ford Bronco, Taurus, Ranger, and Econoline series, as well as Lincoln Continental and Mercury Cougar. The S-609 part number ensures compatibility with these specific makes and models, providing a reliable solution for engine control system diagnostics.

• Diagnosing electronic engine control circuit faults
• Testing engine control module connections
• Verifying wiring harness integrity
• Facilitating troubleshooting of sensor and actuator signals
• Supporting maintenance of engine performance and emissions systems

Installation Notes and Tips

Installation of the Standard Ignition S-609 test plug connector requires basic electrical knowledge and proper safety precautions. Ensure the vehicle ignition is off before connecting the test plug. The pigtail assembly simplifies wiring connections, but verify terminal alignment and secure fit to prevent signal loss. Consult the vehicle’s service manual for specific diagnostic procedures related to the engine control system.

Quality Assurance and Warranty

Standard Ignition products are manufactured to meet or exceed OEM specifications, ensuring dependable performance and durability. The S-609 test plug connector undergoes rigorous quality control to maintain consistent electrical connectivity. Warranty coverage details are available through Standard Ignition and typically include protection against manufacturing defects for a specified period.
