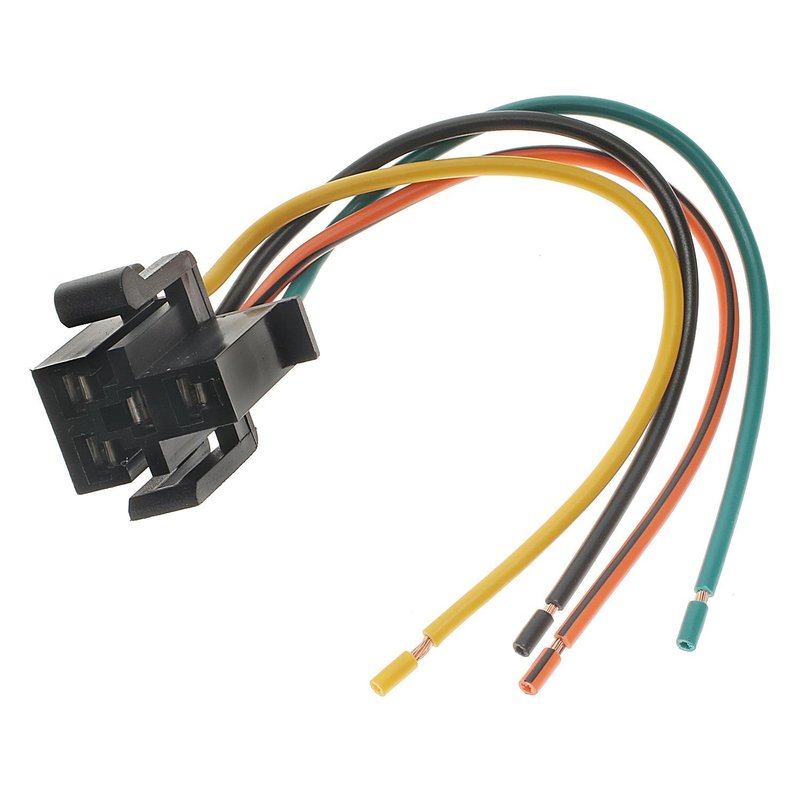

Standard Ignition S-630 HVAC Blower Motor Resistor Harness - Front or Rear

Overview of Standard Ignition HVAC Blower Motor Resistor Harness S-630

The Standard Ignition HVAC Blower Motor Resistor Harness S-630 is designed to provide reliable electrical connectivity for the blower motor resistor system in select Ford, Lincoln, Mazda, and Mercury vehicles. This harness ensures proper operation of the HVAC blower motor by maintaining secure connections with its male connector and female terminals.

• Connector Gender: Male
• Connector Quantity: 1
• Terminal Gender: Female
• Terminal Quantity: 4
• Wire Quantity: 4

Detailed Product Description and Attributes

This HVAC blower motor resistor harness features a single male connector designed to interface directly with the blower motor resistor assembly. It includes four female terminals, each connected by four wires, ensuring stable and consistent electrical flow. The harness is engineered to meet OEM specifications for vehicles such as the Ford F-150, Lincoln Continental, Mazda B2300, and Mercury Cougar, among others. The part number S-630 identifies this specific harness within the Standard Ignition product range, which is known for producing dependable replacement components for HVAC systems.

Compatible Vehicles and Applications

This harness is compatible with a wide range of Ford, Lincoln, Mazda, and Mercury models, including but not limited to:

• Ford F-150, F-250, F-350, Explorer, Mustang, and Econoline series
• Lincoln Continental, Town Car, Mark VI, and Grand Marquis
• Mazda B2300, B2500, B3000, and Navajo
• Mercury Cougar, Mountaineer, Marquis, and Sable

Common Issues Addressed by the HVAC Blower Motor Resistor Harness

• Intermittent or non-functioning blower motor speeds
• HVAC blower motor resistor failure due to poor electrical connection
• Blower motor only working on high speed setting
• Electrical shorts or open circuits in the blower motor wiring
• HVAC system overheating caused by faulty resistor harness wiring

Installation Notes and Tips

• Ensure the vehicle ignition is off before installation to prevent electrical shock
• Verify connector orientation; the harness features a male connector and female terminals for proper fit
• Inspect the wiring harness for any damage or corrosion before installation
• Secure all connections firmly to avoid loose contacts that can cause HVAC blower issues
• Consult the vehicle’s service manual for specific removal and installation procedures

Quality Assurance and Warranty Information

The Standard Ignition HVAC Blower Motor Resistor Harness S-630 is manufactured to meet or exceed OEM standards for fit, form, and function. Each harness undergoes rigorous quality control testing to ensure durability and reliable performance in demanding automotive environments. Standard Ignition typically offers a limited warranty on their parts; please refer to the product documentation or manufacturer’s website for specific warranty details.
