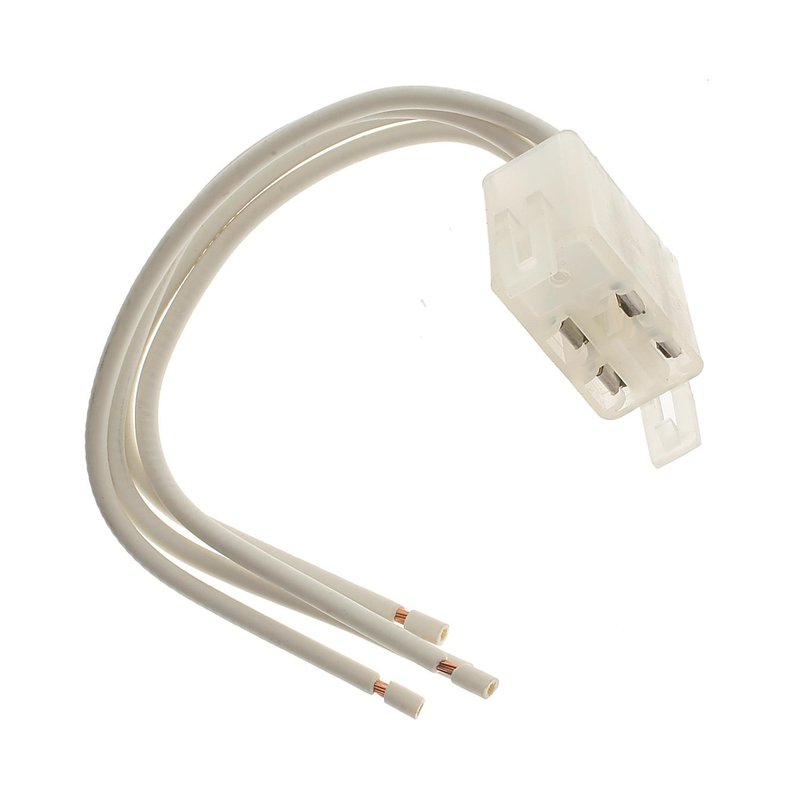

Standard Ignition S-687 HVAC Blower Switch Connector

HVAC Blower Switch Connector for GM Applications

Restore a secure electrical connection at the HVAC blower switch with this Standard Ignition pigtail assembly. Standard Ignition S-687 is built with high-grade materials for consistent conductivity and dependable terminal contact in older GM heating and air conditioning circuits.

• Male connector with 1 connector body
• 4 female terminals with 4 blade terminals
• 4-wire pigtail assembly for HVAC electrical repair
• Direct service connector for blower switch wiring repairs
• Engineered for clean, stable connections where the original connector has failed

Product Details

Standard Ignition S-687 is an HVAC blower switch connector used in a wide range of Chevrolet and GMC vehicles, including Chevrolet Blazer, Chevrolet C1500, Chevrolet K1500, GMC Jimmy, and GMC Safari applications. It is intended for repair work where the original blower switch connector has heat damage, broken terminals, or intermittent contact. This part cross-references 1P1250 and EC143 for the same application.

Built as a pigtail assembly, this connector supports electrical restoration at the blower switch interface and is suited for vehicles across model years 1982-2005, depending on application. Standard Ignition draws on decades of electrical component development to address common connector failure points in aging HVAC systems.

Common Repair Uses

• Blower motor switch connector damage from heat or corrosion
• Intermittent HVAC fan operation caused by poor terminal contact
• Broken or loose blade terminals at the switch harness
• Wiring repair on Chevrolet Blazer and GMC Jimmy HVAC circuits
• Connector replacement on Chevrolet C/K truck and van HVAC systems

Installation Notes and Tips

Match the connector style, terminal count, and wire configuration before installation. Verify the vehicle-specific application for your Chevrolet Blazer, GMC Safari, or other listed GM model, and inspect the mating switch for heat damage or terminal spread before reconnecting the harness. Proper crimping and secure terminal seating are important for reliable blower switch operation.

Quality Assurance

Standard Ignition manufactures pigtails and sockets using high-grade materials and application-focused engineering to support dependable electrical repair. S-687 is built to restore original-style connectivity in HVAC blower switch circuits where the factory connector has failed.
