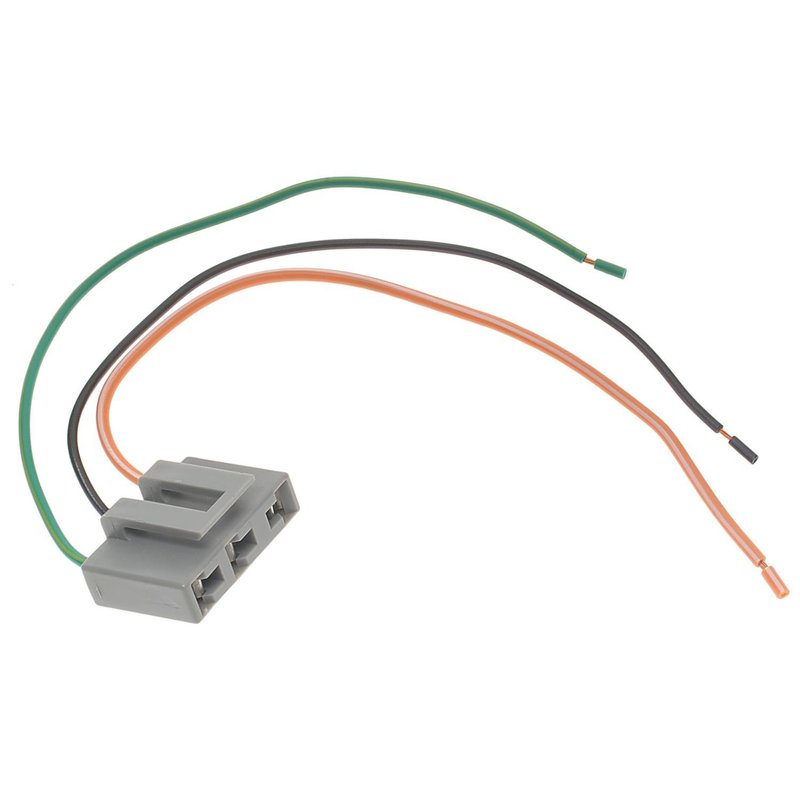

Standard Ignition S-760 Headlight Dimmer Switch Connector

Reliable Headlight Dimmer Switch Connector for Ford, Lincoln, and Mercury

The Standard Ignition S-760 headlight dimmer switch connector is designed to provide a secure and efficient electrical connection for your vehicle's lighting system. Compatible with a range of Ford, Lincoln, and Mercury models, this connector ensures consistent performance and durability.

• Connector Gender: Male
• Connector Quantity: 1
• Contents: Pigtail assembly
• Terminal Gender: Female
• Terminal Quantity: 3
• Terminal Type: Blade
• Wire Quantity: 2

Product Details and Specifications

The S-760 headlight dimmer switch connector from Standard Ignition features a male connector with a single unit quantity, designed to interface with female blade terminals. It includes a pigtail assembly with two wires, facilitating straightforward integration into the vehicle's electrical system. The three female blade terminals provide reliable contact points, ensuring stable electrical flow for the headlight dimmer switch operation. This connector is engineered to meet the electrical demands of various Ford, Lincoln, and Mercury vehicles, including models such as the Mustang, Crown Victoria, Thunderbird, and Grand Marquis.

Compatible Vehicles and Applications

This headlight dimmer switch connector is compatible with multiple Ford, Lincoln, and Mercury models, including but not limited to:

• Ford Mustang, Pinto, Escort, Crown Victoria, LTD Crown Victoria
• Lincoln Town Car, Continental, Versailles
• Mercury Cougar, Marquis, Grand Marquis, Colony Park

It is specifically designed to replace worn or damaged connectors in the headlight dimmer switch circuit, restoring proper electrical connectivity and lighting function.

Common Issues Addressed by This Connector

• Intermittent or non-functioning headlight dimmer switch
• Corroded or damaged electrical connectors causing poor contact
• Faulty wiring connections leading to headlight flickering
• Replacement of broken or worn pigtail assemblies
• Electrical shorts or open circuits in the dimmer switch wiring harness

Installation Notes and Tips

When installing the Standard Ignition S-760 connector, ensure the vehicle's battery is disconnected to prevent electrical shorts. Verify the connector orientation matches the original part, and confirm that the blade terminals are securely seated. Use appropriate tools to avoid damaging the terminals or wires during installation. This connector is designed for direct replacement and should integrate seamlessly with the existing wiring harness on compatible Ford, Lincoln, and Mercury models.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The S-760 headlight dimmer switch connector undergoes rigorous quality control to maintain consistent electrical conductivity and fitment. Please refer to Standard Ignition's warranty policy for specific coverage details.
