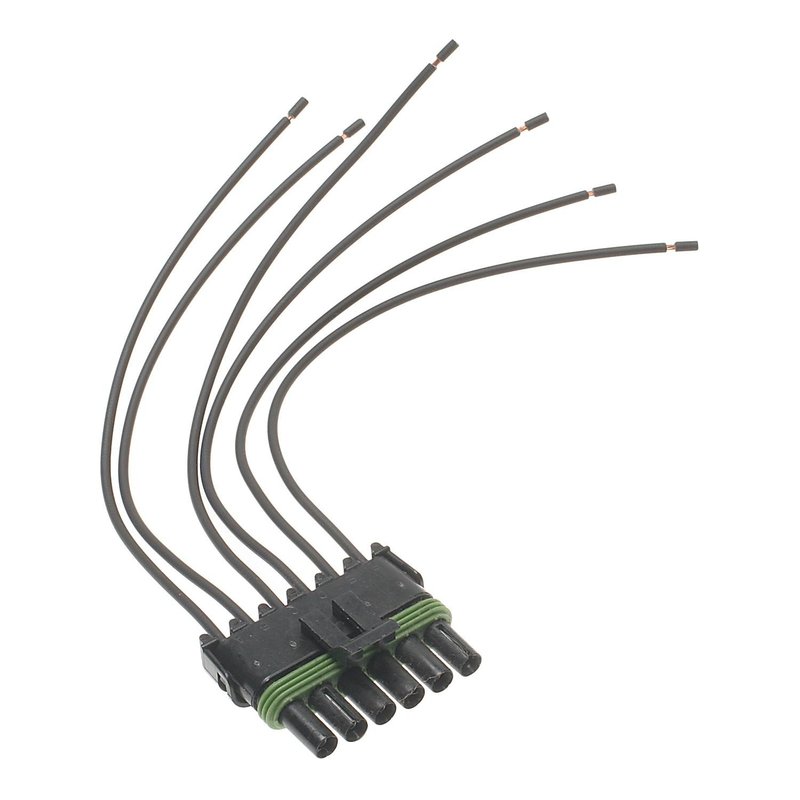

Standard Ignition S-764 Body Wiring Harness Connector

Reliable Body Wiring Harness Connector for Cadillac, Chevrolet, and GMC

The Standard Ignition S-764 body wiring harness connector is designed to provide a secure and efficient electrical connection for select Cadillac, Chevrolet, and GMC vehicles. This male connector with a 6 1/2 inch pigtail assembly ensures proper fit and function for models like the Cadillac Brougham and Chevrolet P30 and P3500.

• Connector Gender: Male
• Terminal Gender: Female
• Terminal Type: Pin
• Wire Quantity: 6 wires
• Terminal Quantity: 6 terminals
• Harness Length: 6 1/2 inches
• Includes pigtail assembly for easy installation

Product Details and Specifications

The Standard Ignition S-764 is a body wiring harness connector featuring a male connector with six female pin terminals. The 6-wire configuration and 6 1/2 inch harness length provide compatibility with specific electrical systems in Cadillac Brougham, Chevrolet P30, and P3500 models. The included pigtail assembly simplifies replacement and repair tasks by offering a ready-to-install wiring solution that maintains factory specifications.

Compatible Vehicles and Applications

This connector is compatible with the following vehicles:

• Cadillac Brougham
• Chevrolet P30
• Chevrolet P3500
• GMC models matching the above chassis

It is commonly used in body wiring harness repairs where a reliable male connector with female pin terminals is required to restore proper electrical connectivity.

Common Issues Addressed by This Connector

• Damaged or corroded body wiring harness connectors
• Intermittent electrical connections causing lighting or body control issues
• Broken or worn pin terminals affecting signal transmission
• Wiring harness repairs requiring exact OEM-style replacement parts
• Upgrading or restoring factory wiring harness integrity

Installation Notes and Tips

When installing the Standard Ignition S-764 connector, ensure the wiring harness is properly routed and secured to avoid strain on the terminals. Use appropriate crimping tools for the female pin terminals to guarantee a solid electrical connection. Verify compatibility with your vehicle’s wiring diagram before installation. The 6 1/2 inch harness length provides flexibility for routing in tight spaces.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The S-764 connector undergoes quality control testing to ensure reliable electrical performance. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in materials and workmanship to support long-term durability.
