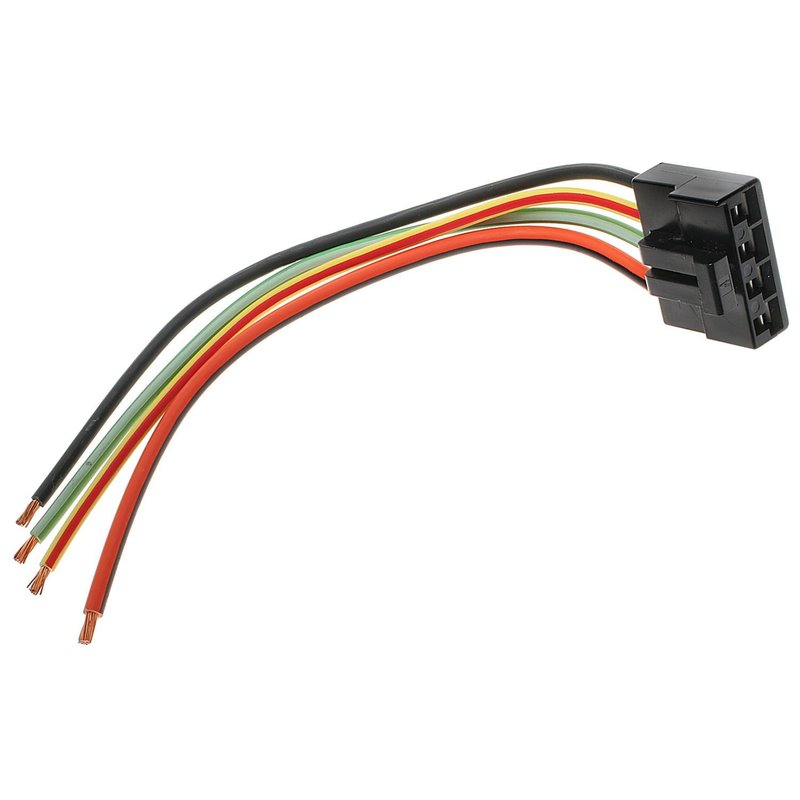

Standard Ignition S-784 HVAC Blower Control Switch Connector

Overview of Standard Ignition HVAC Blower Control Switch Connector

The Standard Ignition S-784 HVAC Blower Control Switch Connector is designed for reliable electrical connections in Ford and Mercury vehicles. This male connector with a pigtail assembly ensures secure and efficient operation of the HVAC blower control switch in select models.

• Connector Gender: Male
• Connector Quantity: 1
• Contents: Pigtail assembly
• Terminal Gender: Female
• Terminal Quantity: 4
• Terminal Type: 4 blade terminals
• Wire Quantity: 4

Detailed Product Description

The S-784 connector from Standard Ignition is engineered to provide a dependable connection for the HVAC blower control switch in Ford and Mercury vehicles, including the Colony Park, Crown Victoria, Grand Marquis, and LTD Crown Victoria models. Featuring a male connector with four female blade terminals, this pigtail assembly supports four wires, ensuring proper electrical flow and communication between the blower control switch and the vehicle’s HVAC system. The 4 blade terminals are designed for secure attachment and durability under typical automotive conditions.

Compatible Vehicles and Applications

This HVAC blower control switch connector is compatible with the following vehicles:

• Ford Colony Park
• Ford Crown Victoria
• Mercury Grand Marquis
• Mercury LTD Crown Victoria

It is specifically designed to replace worn or damaged blower control switch connectors in these models, restoring proper HVAC function.

Common Issues Addressed by This Connector

• Intermittent or non-functioning HVAC blower control switch
• Loose or corroded electrical connections causing blower failure
• Damaged or broken connector terminals
• Electrical shorts or open circuits in the blower control wiring
• HVAC blower speed control problems related to connector faults

Installation Notes and Tips

• Ensure the vehicle ignition is off before installation to prevent electrical shorts
• Verify connector orientation and terminal alignment before securing
• Inspect wiring for damage and replace if necessary to maintain system integrity
• Use dielectric grease on terminals to prevent corrosion and improve conductivity
• Test HVAC blower operation after installation to confirm proper function

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The S-784 connector undergoes quality control inspections to ensure reliable performance in Ford and Mercury HVAC systems. Warranty coverage details should be confirmed with the product documentation or supplier.
