Standard Ignition S-801 Automatic Transmission Wiring Harness Connector

Reliable Automatic Transmission Wiring Harness Connector

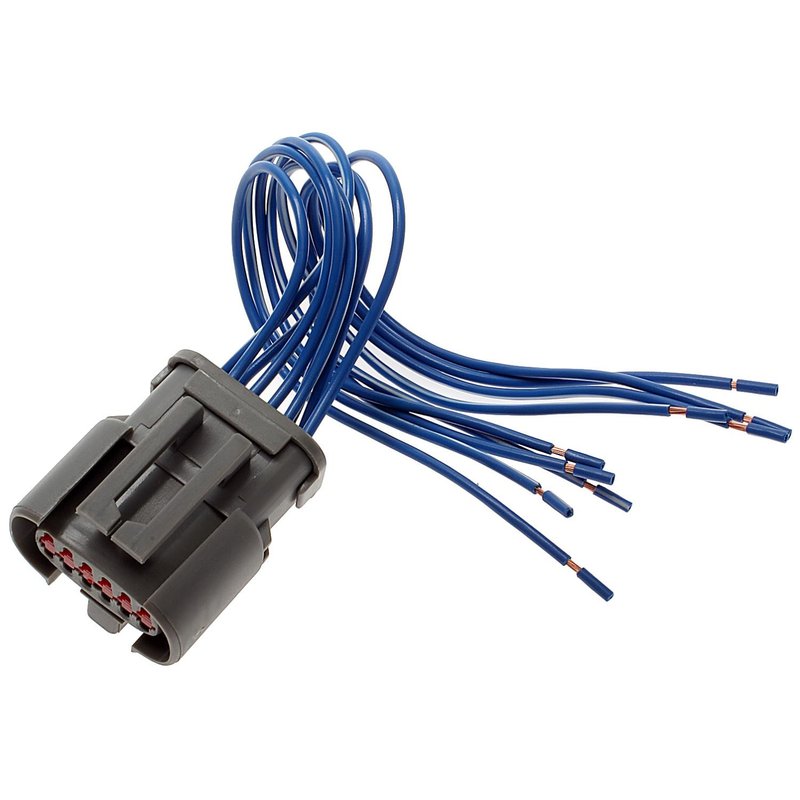

The Standard Ignition S-801 automatic transmission wiring harness connector is designed to provide a secure and efficient electrical connection for Ford vehicles. Engineered with precision, this male connector with a female terminal configuration ensures compatibility and durability for your transmission wiring needs.

• Connector Gender: Male
• Terminal Gender: Female
• Terminal Quantity: 9
• Terminal Type: Pin
• Wire Quantity: 9
• Contents: Pigtail assembly
• Compatible with multiple Ford models including Bronco, F-150, Mustang, and Econoline series

Product Details and Specifications

The S-801 wiring harness connector from Standard Ignition features a 9-pin female terminal design housed in a male connector body. This configuration supports nine wires, making it suitable for complex transmission wiring systems. The included pigtail assembly simplifies integration into existing wiring harnesses, ensuring a reliable electrical connection. This connector is specifically designed for use in Ford vehicles such as the Bronco, F-150, Mustang, and various Econoline models including E-150, E-250, and E-350, providing a precise fit and consistent performance.

Applications and Common Issues Addressed

• Restores faulty or damaged automatic transmission wiring connections
• Replaces worn or corroded connectors causing transmission communication errors
• Ensures proper electrical continuity for transmission control modules
• Prevents intermittent transmission shifting problems related to wiring harness faults
• Supports maintenance and repair of Ford Bronco, F-150, Mustang, and Econoline transmission systems

Installation Notes and Tips

When installing the Standard Ignition S-801 connector, ensure the wiring harness is clean and free of corrosion before connecting. Verify that each of the nine wires is correctly matched to the corresponding terminal to maintain proper transmission function. Use appropriate tools to secure the pigtail assembly and avoid damaging the pins during installation. This connector is designed for direct replacement in compatible Ford models, facilitating straightforward installation without modification.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The S-801 wiring harness connector undergoes rigorous quality control to maintain consistent electrical connectivity. While specific warranty details are not provided here, Standard Ignition typically offers coverage against manufacturing defects, supporting long-term vehicle operation.
