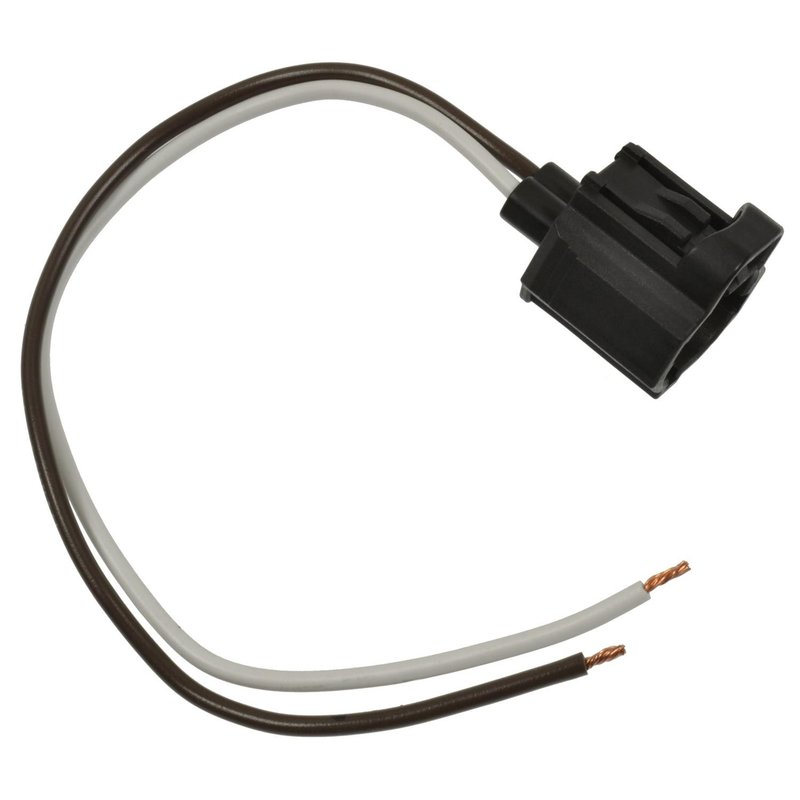

Standard Ignition S-906 Engine Crankshaft Position Sensor Connector

Reliable Engine Crankshaft Position Sensor Connector for Ford, Mazda, Mercury

The Standard Ignition S-906 Engine Crankshaft Position Sensor Connector is designed to provide a secure and precise electrical connection for your vehicle's crankshaft position sensor. Compatible with a range of Ford, Mazda, and Mercury models, this connector ensures consistent signal transmission essential for engine timing and performance.

• Compatible with Ford, Mazda, and Mercury vehicles including Ranger, Escape, Focus, Fusion, Cougar, and more
• Female terminal gender with two blade-type terminals made of brass for reliable conductivity
• Push-on attachment method for straightforward installation
• Black rectangular plastic connector housing with an 8-inch wiring harness included
• Designed for 12-volt systems with 18-gauge wire for optimal electrical performance

Durable Design and Precise Specifications

This Standard Ignition S-906 connector features a black plastic housing with a rectangular shape and a zero-degree bend angle, ensuring a direct and secure fit. The connector includes a pigtail assembly with two wires, each 18 gauge and 8 inches in length, providing sufficient reach for most engine bay configurations. The brass blade terminals offer corrosion resistance and stable electrical contact, although this connector is not weatherproof sealed or dust shielded, making it suitable for protected engine compartments.

Compatible Vehicle Applications

This engine crankshaft position sensor connector is compatible with various Ford, Mazda, and Mercury models, including but not limited to:

• Ford Ranger, Escape, Focus, Fusion, F-250 Super Duty, F-350 Super Duty, E-350 Club Wagon, Transit Connect
• Mazda 3, 5, 6, CX-9, Tribute, B2300, B4000
• Mercury Cougar, Mariner, Milan, Mystique, Cougar

Common Issues Addressed by This Connector

• Intermittent or failed crankshaft position sensor signals causing engine misfires
• Damaged or corroded sensor connectors leading to poor electrical contact
• Wiring harness wear or breakage affecting sensor communication
• Connector housing damage resulting in loose or unstable connections
• Replacement of worn or faulty pigtail assemblies to restore sensor function

Installation Notes and Tips

• Ensure the ignition is off and battery disconnected before installation
• Use the push-on attachment method to secure the connector firmly to the sensor terminals
• Verify the connector orientation matches the original to avoid wiring errors
• Inspect wiring harness length (8 inches) to confirm compatibility with your vehicle’s engine bay layout
• Check for any signs of damage or corrosion on mating terminals before installation

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and fitment. The S-906 connector is constructed with quality materials including brass terminals and durable plastic housing. While this product does not include a weatherproof seal, it is engineered for protected engine environments. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
