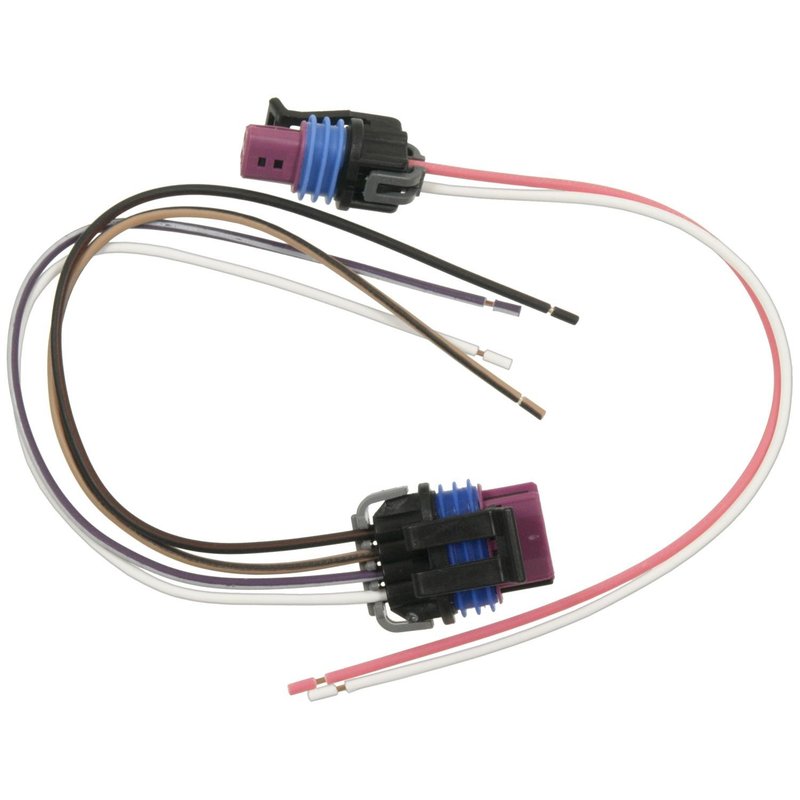

Standard Ignition S-909 Ignition Control Module Connector

Ignition Control Module Connector for GM Applications

Standard Ignition S-909 is an ignition control module connector built for repair work on a wide range of Chevrolet, GMC, Buick, Pontiac, Cadillac, Geo, and Isuzu vehicles. It uses high-grade materials to support strong conductivity and secure electrical contact in ignition system repairs.

For technicians replacing damaged pigtails or correcting intermittent ignition faults, this connector set is a direct-fit electrical repair solution for many 1985-1999 GM applications, including Chevrolet Silverado, GMC Jimmy, and Chevrolet Astro.

Key Features

• Ignition control module connector for electrical repair
• 7-inch harness length for service routing
• Female pin socket terminals for secure module connection
• Two connector housings with six-wire harness construction
• Built with materials selected for conductivity and connection integrity
• Standard Ignition S-909 cross-references PT757 and TPC22 for the same application

Product Details

Standard Ignition S-909 is engineered as a replacement ignition control module connector for vehicles that rely on a stable module-to-harness connection. The connector design supports repair of heat-damaged, corroded, or broken terminals in ignition circuits, helping restore proper signal transfer between the ignition control module and the vehicle harness. This part is commonly searched as an ignition module pigtail, ignition control module connector, or GM ignition connector repair harness.

Compatible vehicle coverage includes applications such as 1995-1999 Chevrolet Silverado, 1985-1995 Chevrolet Astro, and 1987-1995 GMC Safari, along with many other Chevrolet and GMC trucks, vans, SUVs, and passenger cars listed in the fitment data.

Common Repair Uses

• Broken or loose ignition control module connector terminals
• Heat damage at the ignition module pigtail
• Corrosion in the module connector housing
• Intermittent ignition signal loss caused by worn wiring
• Failed electrical contact at the ignition control module

Installation Notes

• Verify connector style, terminal gender, and wire count before installation.
• Match the vehicle application to the fitment list, especially on GM trucks and vans with multiple connector variations.
• Inspect the mating ignition control module terminals for heat damage or corrosion before connecting the new harness.
• Use proper electrical repair practices to ensure a secure, low-resistance connection.

Quality Assurance

Standard Ignition focuses on pigtails and sockets for electrical repair, using high-grade materials and long-term product development aimed at technician needs. The S-909 is built to address common failure points found in original equipment ignition connectors and to restore dependable electrical contact in service applications.
